45# forge steel Solar Roll Forming Machine 22 stations Rolling speed 0-15m/min

Basic Information
Place of Origin: China
Brand Name: Saibo
Certification: CE/ISO
Model Number: YX41-41
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Suitable for ocean shipment
Delivery Time: 90 days
Supply Ability: 300 sets per year
Detail Information
Product Name: Guide Rail Roll Forming Machine Shaft Diameter: ¢120mm,45# Forge Steel
Steel Thickness: 1.5-2.0mm Mian Power: 11kw X 2
Roll Station: 22 Station Roller Material: Cr12
Cutting Material: Cr12 With Heat Treatment 58-60°
High Light:

roll forming equipment

,

roll forming machine


Product Description


1. Main speficication:

1


Suitable Material GI

2


Width of the raw material According to the final profile
3 Thickness 1.5-2.0mm

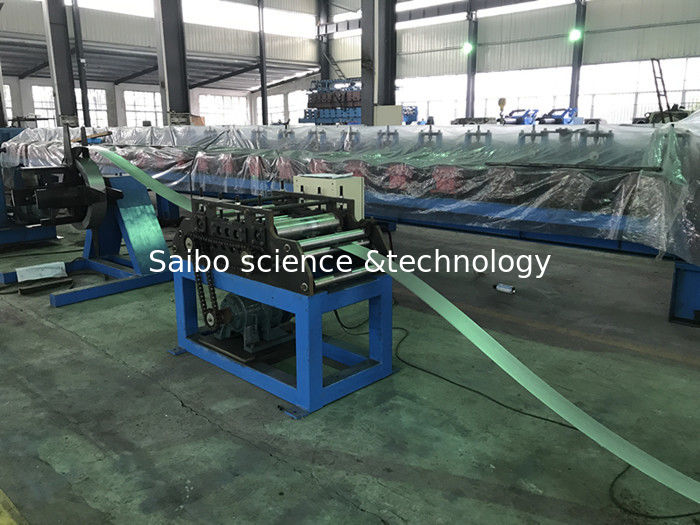

45# forge steel Solar Roll Forming Machine 22 stations Rolling speed 0-15m/min 0

2.  The Chart of Process Flow
Decoiler---leveling---servo feeding---punching---feeding---roll forming---
Post cutting---end product

3. Composition of machine



No



Description


Specification


Request

1.

Roll forming machine


YX41-41
1.2

Rolling speed


0-15m/min



1.3

Rolling thickness


1.5-2.0mm
1.4

Material


Galvanized steel



1.6

Un coiler


3 TON manual un-coiler



1.7

The material width


According the final profile



1.8

Roller stations


About 22 stations



1.9

Leveling stations


7 stations



1.10

punching machine


63T pneumatic punching machine



1.11

Roller material


CR12, 58-62,HRC hardness and chrome plated surface
1.12

Shaft diameter


45# forge steel ¢120mm
1.13

Maim motor power


11kw X 2
1.14

Hydraulic station power


15KW
1.15

Hydraulic pressure


25Mpa
1.16

Material of cutting


Cr12 with heat treatment 58-60°



1.17

Tolerance


3m+-1.5mm
1.18

Electric source


380V, 50HZ,3 phase
1.19

Way of drive


By chain
1.20

Color of the machine


Yellow and blue






4. After Service
a.One year guarantee for whole machine.
b.24 hours technical support by email or calling
c.If there is any problem found of the machine, we will repair it for free in one
year.

5. FAQ
1) Q: Are you manufacturer or trading company?
A: We are manufacturer and trading company .

2) Q: Do you provide installing and training overseas?
A: Overseas machine install and worker training services are optional.

3) Q: How is your after sales support?
A: We provide technical support on line as well as overseas services by skillful technicians.

4) Q: How does your factory do regarding quality control?
A: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.

5) How can I trust you that machines pasted testing running before shipping?
A: 1) We record the testing video for your reference. Or,
2) We welcome you visit us and test machine by yourself in our factory.

6) Q: Do you have this roof panel roll forming machine in stock?
A: No, machine is made to order.
