Customized Voltage Galvanized Steel Stud Roll Forming Machine , 169mm Width

Basic Information
Place of Origin: China
Brand Name: Saibo
Certification: CE/ISO
Model Number: YX43-61.5
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Suitable for ocean shipment
Delivery Time: 70 working days after received deposit
Payment Terms: T/T, L/C
Supply Ability: 300 sets per year
Detail Information
Product Name: Fencing Frame Roll Forming Machine Hydraulic Power: 5.5kw
Steel Thickness: 0.8mm Decoiler: Manual Or Hydraulic
Station: 15 Stations Roller Material: Gcr15
Structure: Steel Plate Welding Drive: By Chain
High Light:

Metal Stud Roll Forming Machine

,

Stud Roll Forming Machine


Product Description

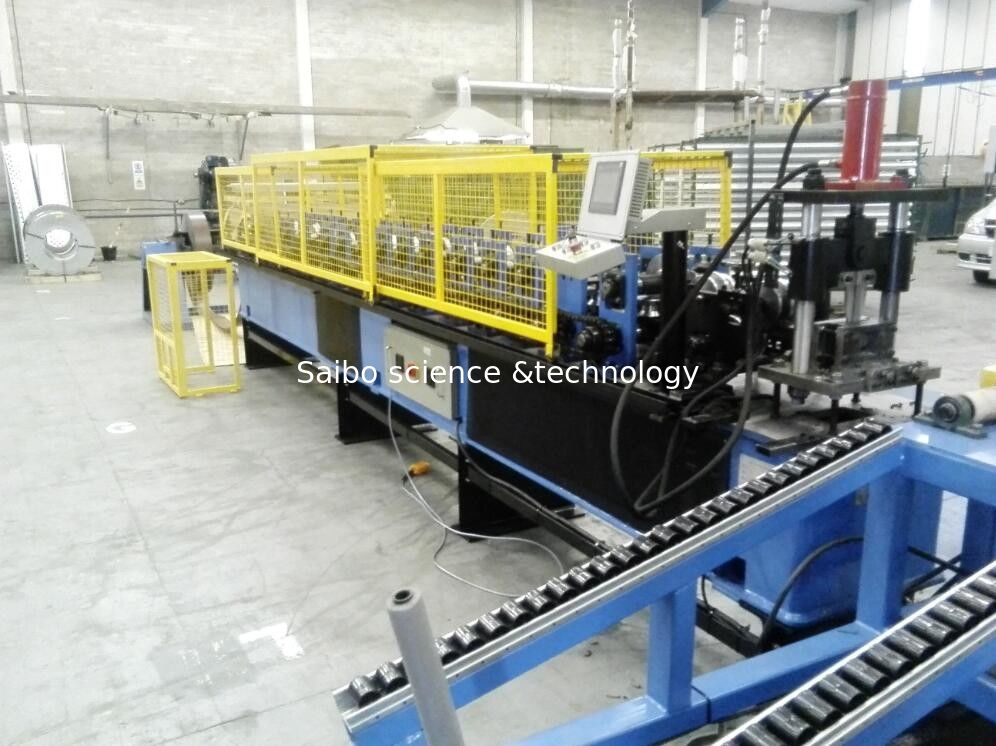

YX43-61.5 Stud Roll Forming Machine for fencing frame strong machine body



1. Specification of the material

1 Suitable Material Galvanized steel, PPGI
2 Width of the raw material 169mm
3 Thickness 0.8mm



2. Machine Detailed Parameters

Roll Forming



Fencing frame roll forming machine



Machine structure



Wire-electrode cutting structure
Total power

Motor power-5.5kw

Hydraulic power-4kw
Roller stations



about 15 stations

Productivity



0-15m/min

Drive system



By chain

Diameter of shaft



¢56mm solid shaft

Voltage





Customized

Color Of The Machine



Yellow and blue

Deliver Time



70 days

Terms Of Payment



30%T/T 70% pay before shipment



3. Profile drawing

Customized Voltage Galvanized Steel Stud Roll Forming Machine , 169mm Width 0



4. The Chart of Process Flow

Customized Voltage Galvanized Steel Stud Roll Forming Machine , 169mm Width 1





5. Specification of Components

(1) 3T Manual Un-coiler

  • Width of feeding: 350mm
  • Capability: 3 Ton
  • Bound of expand &fight: 380mm—520mm
  • Mode of expand &fight: inner expand &fight by manual
  • Way of feeding: manual



(2) Main Roll Forming Machine

  • Roller material: #45
  • Shaft diameter: ¢56mm material: 40CR with quenching and tempering
  • Main frame by steel plate welding
  • Machine structure: Wire-electrode cutting



(3) Hydraulic cutting system

  • Cutting after forming: Cut the sheet after roll forming to required length
  • Material of blade:Cr12, 58-62 HRC hardness
  • Cutting power by hydraulic,4KW
  • Length measuring: Automatic encoder length measuring
  • Tolerance of length: +/- 1.5mm for each piece end product



(4) Computer Control Cabinet

  • Programmable setting of profile length and quantity
  • Operating system language: English and Chinese
  • Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved
  • PLC: Panasonic or customerization

6. Warranty

  • Warranty: 1 year warranty from date of shipment
  • Guarantee:

1: Guaranteed against malfunctions due to manufacturing defects for 1 year after date of shipment. Repairs will be made free of charge.

2: Repairs will not be performed free of change even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

3:Air ticket, transportation cost, hotel, meals and 100$ per day shall be for purchaser’s account if manufacturer’s engineer has to be send to purchaser’s factory to maintain the machine during the guarantee period.
