Roof Panel Standing Seam Roll Forming Machine With Rib And Electrical Seaming Machine

Basic Information
Place of Origin: China
Brand Name: Saibo
Certification: CE/ISO
Model Number: YX51-485
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Suitable for ocean shipment
Delivery Time: 70 working days after received deposit
Payment Terms: T/T or L/C
Supply Ability: 300 sets per year
Contact Now
Detail Information
Product Name: Standing Seam Roll Forming Machine Main Power: 5.5KW
Hydraulic Power: 4KW Steel Thickness: 0.3-0.5mm
Coil Width: 613mm Station: About 16 Stations
Roller Material: ASTM1045 Chrome Plated Surface With Chrome Drive System: By Chain
Diameter Of Shaft: ¢65mm Solid Shaft Seaming Machine: 1 Unit

Product Description

YX51-485 Standing Seam Roof Panel Roll Forming Machine with rib and seaming machine

Corrugated Roll Forming Machine



1. Specification of the material

1 Suitable Material PPGI,PPGL Yield strength 320-400Mpa
2 Width of the raw material 613mm
3 Thickness 0.3-0.5mm




2. Machine Detailed Parameters

1

Roll Forming Machine



Standing Seam Roll Forming Machine
2

Machine structure



Wire-electrode cutting frame
3 Total power

Motor power-5.5kw

Hydraulic power-4kw

4

Roller stations



About 16 stations
5

Productivity



0-15m/min
6

Drive system



By chain
7

Diameter of shaft



¢65mm solid shaft
8

Voltage



380V 50Hz 3phases (Customized)
9

Color Of The Machine



Bule and yellow
10

Deliver time



70 days
11

Terms Of Payment



30%T/T 70% pay before shipment

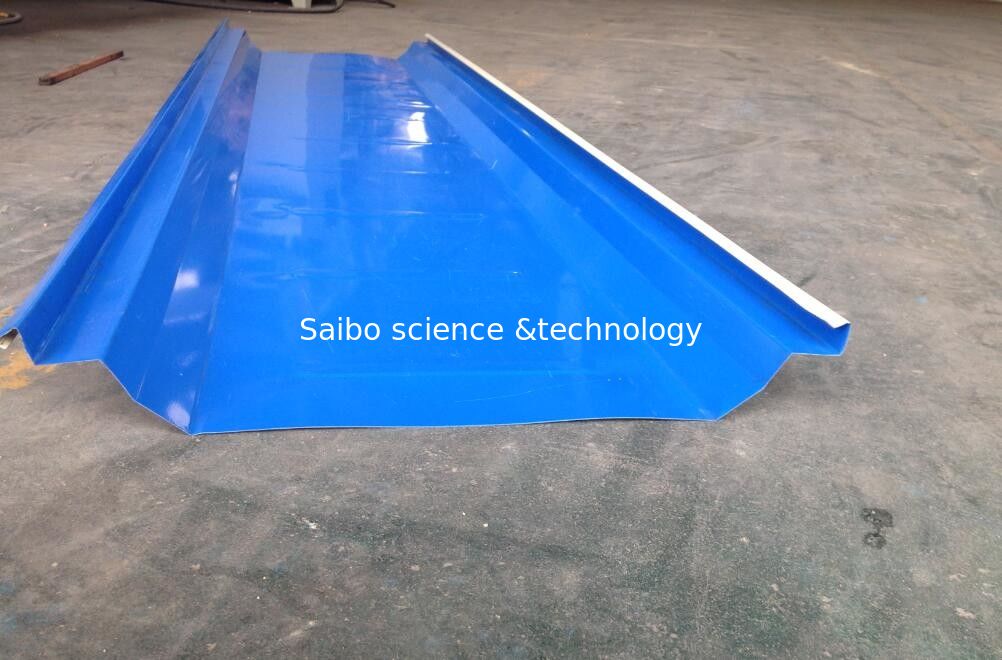

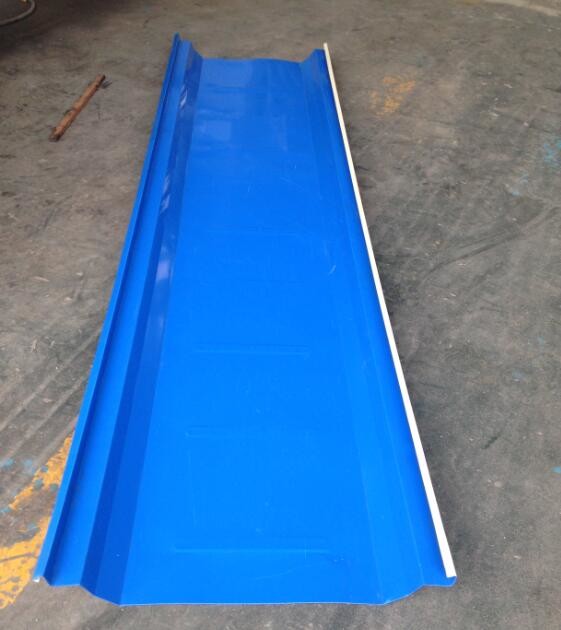

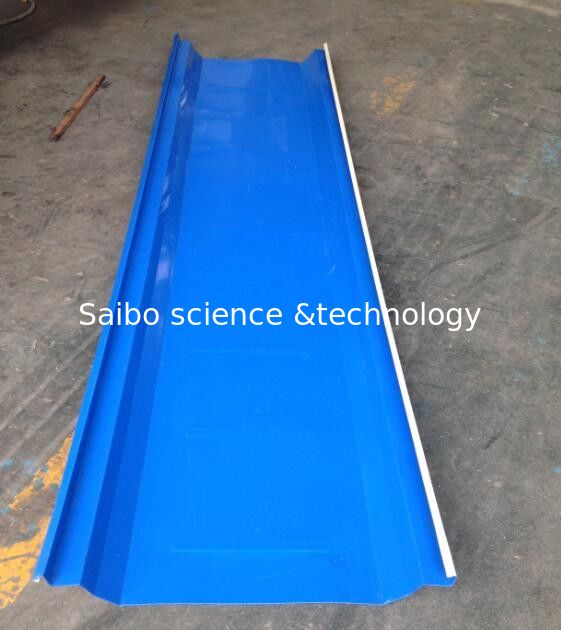

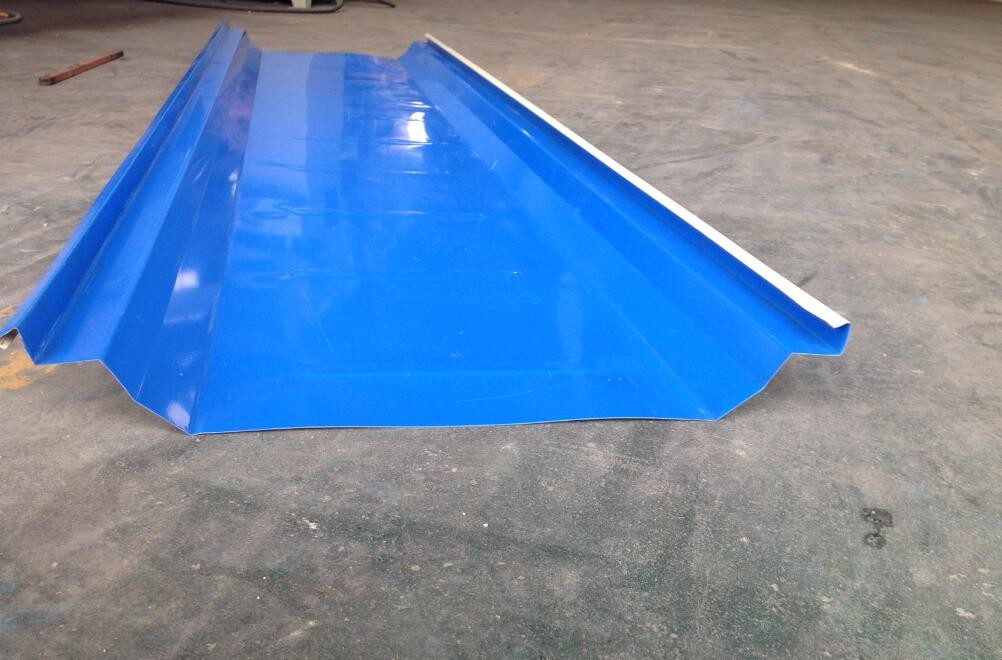

3. Profile drawing

Roof Panel Standing Seam Roll Forming Machine With Rib And Electrical Seaming Machine



4. The Chart of Process Flow



Manual Decoiler—Roll Forming—Cutting—Out table

Roof Panel Standing Seam Roll Forming Machine With Rib And Electrical Seaming Machine





5. Specification of Components



(1) Un-coiler

  • Width of feeding: 1000mm
  • Capability: 3.5Ton
  • Inter diameter: 500-590mm
  • Maximal out diameter: 1500mm
  • Mode of expand &fight: inner expand &fight by manual
  • Way of feeding: manual

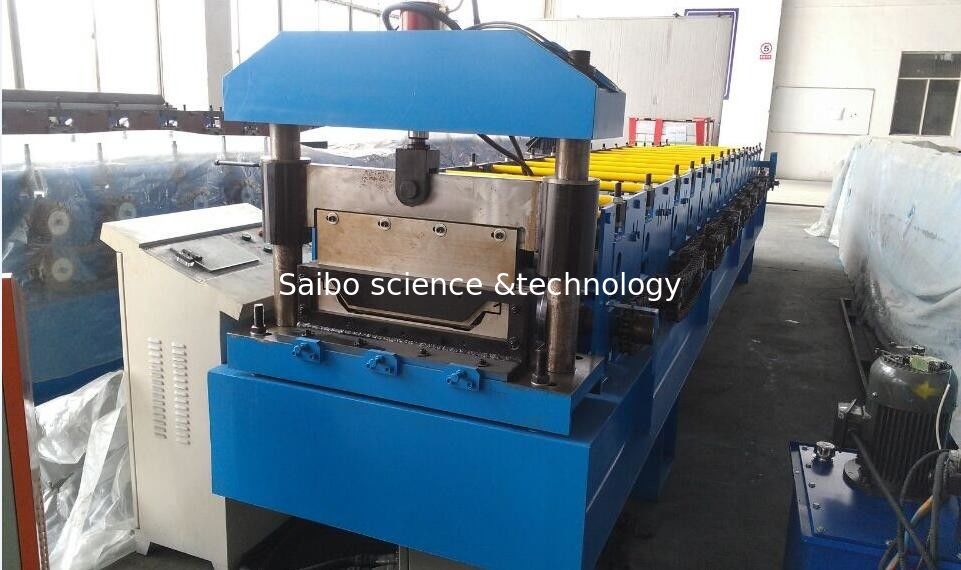

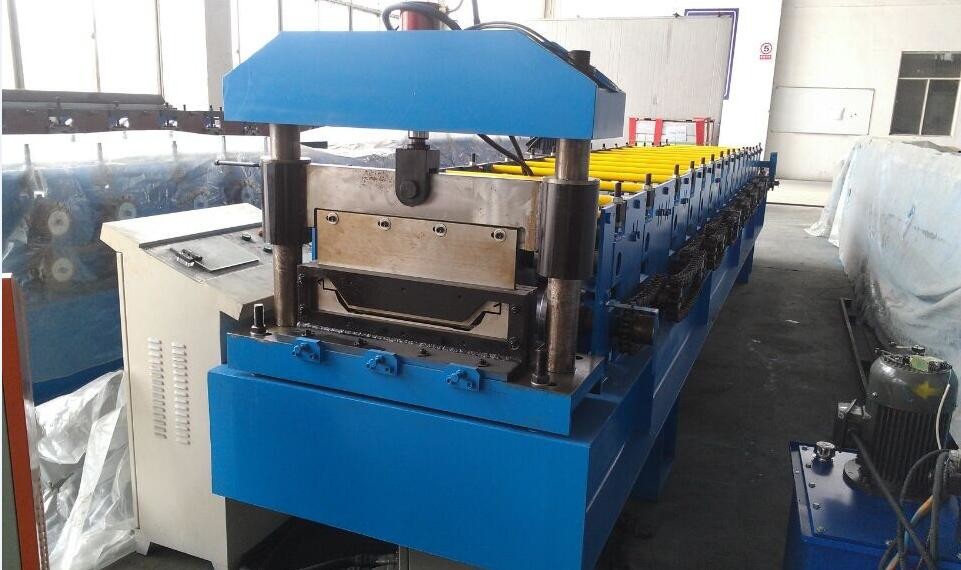

(2) Main Roll Forming Machine

  • Roller material:ASTM1045 chrome plated surface with chrome
  • Shaft diameter: ¢65mm material: SAE1045 with quenching and tempering
  • main power: 5.5KW

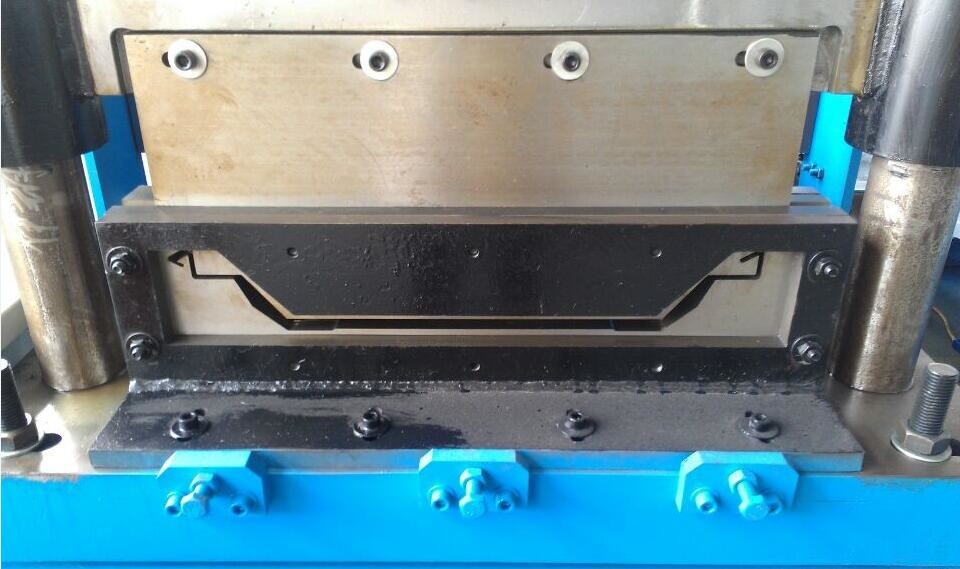

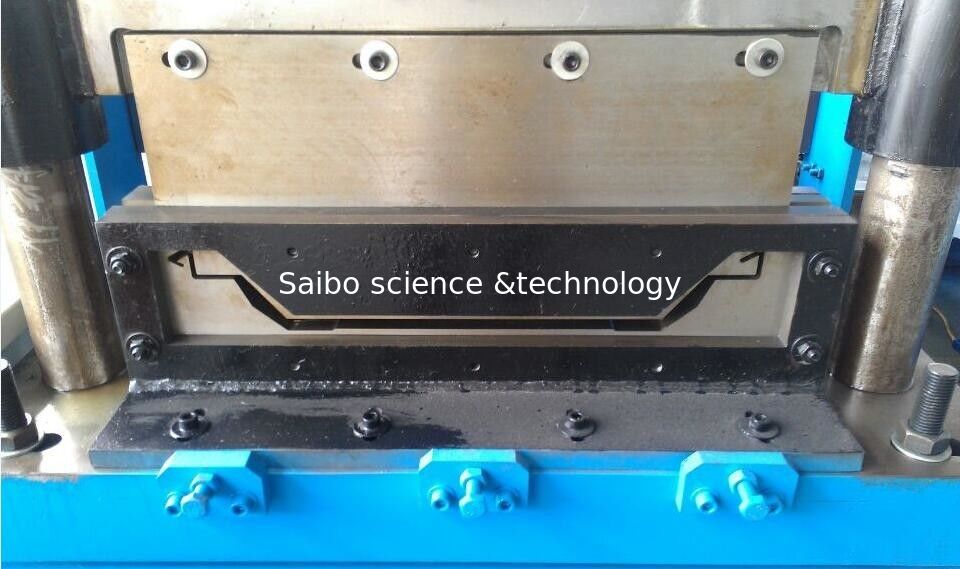

(3) Hydraulic cutting system
  • Cutting before forming: Cut the sheet before roll forming to required length
  • Material of blade:Cr12, 58-62 HRC hardness
  • Cutting power by hydraulic,4KW
  • Working pressure: 12Mpa adjustable
  • Length measuring: Automatic encoder length measuring
  • Tolerance of length: +/- 1.5mm for each piece end product



(4) Hydraulic station

  • Hydraulic power: 4kw
  • Working pressure: 12Mpa adjustable
  • Solenoid valve: 1 group
  • Hydraulic oil: 46# hydraulic oil



(5) Computer Control Cabinet

  • Programmable setting of profile length and quantity
  • Operating system language: English and Chinese
  • Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved
  • PLC: Panasonic or customerization



6. Installation and training:



a.If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.



b.Without visiting, we will send you user manual and video to teach you to install and operate.



C.If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.
