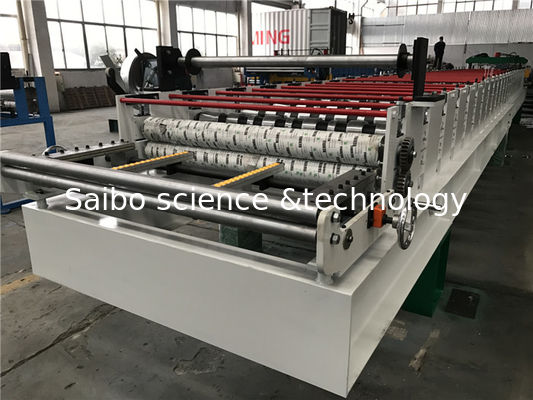

0.4 - 0.6mm Steel Thickness Tile Roll Forming Machine One Complete Chain With Decoiler

Basic Information
Place of Origin: China
Brand Name: Saibo
Certification: CE/ISO
Model Number: YX40-180-900
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Suitable for ocean shipment
Delivery Time: 70 working days after received deposit
Payment Terms: T/T, L/C
Supply Ability: 300 sets per year
Contact Now
Detail Information
Product Name: Tile Roll Forming Machine Power: 7.5KW+5.5kw
Decoiler: Hydraulic Station: 19 Stations
Steel Thickness: 0.4-0.6mm Roller Material: ASTM1045 Chrome Plated Surface With Chrome
Drive: By Chain Productivity: 5-8m/min

Product Description

1. Specification of the material

1 Suitable Material Colored Steel plate, Galvanized steel
2 Width of the raw material 1200mm
3 Thickness 0.4-0.6mm



2. Machine Detailed Parameters

1 Roll Forming Machine YX40-180-900



2 Machine structure



Wall panel structure



3 Total power

Motor power-7.5kw servo motor

Hydraulic power-5.5kw
4

Roller stations



About 19 stations
5

Productivity



5-8m/min
6

Drive system



By chain, one complete chain
7

Diameter of shaft



¢70mm solid shaft
8 Voltage



380v 50Hz 3phase
9

Color Of The Machine



Yellow and blue
10

Container need



40GP container
11

Deliver Time



70 days
12

Terms Of Payment



30%T/T 70% pay before shipment



3. Profile drawing

0.4 - 0.6mm Steel Thickness Tile Roll Forming Machine One Complete Chain With Decoiler





4. The Chart of Process Flow

0.4 - 0.6mm Steel Thickness Tile Roll Forming Machine One Complete Chain With Decoiler

5. Specification of Components

(1) 5T Hydraulic Un-coiler

  • Width of feeding: 1250mm
  • Capability: 5 Ton
  • Inter diameter: 470-520mm
  • Maximal out diameter: 1500mm
  • Main motor power: 5.5KW AC motor
  • Hydraulic power: 4kw



(2) Coil Car

  • Capacity: 5 ton
  • Track guide length: 3m
  • Can go forward and raise up to load the coil into the un-coiler

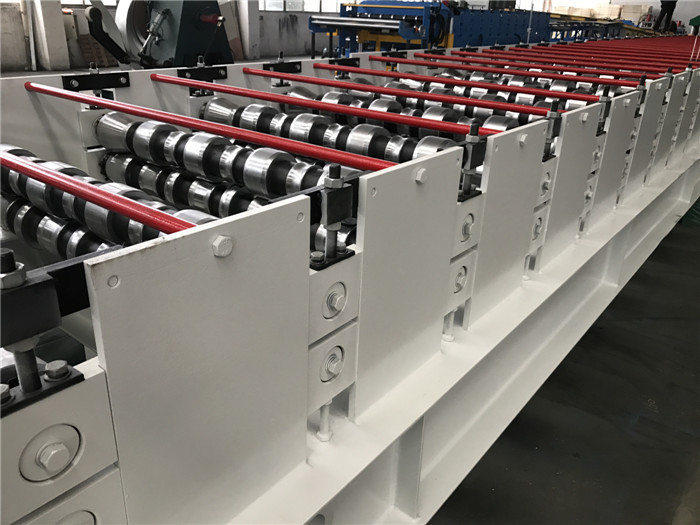

(3) Main Roll Forming Machine

  • Roller material:ASTM1045 chrome plated surface with chrome
  • Shaft diameter: ¢70mm material: SAE1045 with quenching and tempering



(4) Machine Structure

  • Main frame by 350H beam welding
  • Machine structure: wall panel



(5)Pressing System:

  • Pressing after forming: Press the sheet after roll forming to required length
  • Hydraulic drive uses the same hydraulic unit with cutting
  • Material of mold:Cr12, 58-62 HRC hardness
  • Pressing by hydraulic, 5.5KW



(6) Hydraulic cutting system

  • Cutting after forming: Cut the sheet after roll forming to required length
  • Uses two hydraulic cylinders for operation.
  • Material of blade:Cr12, 58-62 HRC hardness
  • Cutting power by hydraulic,5.5KW
  • Working pressure: 12Mpa adjustable
  • Length measuring: Automatic encoder length measuring
  • Tolerance of length: +/- 1.5mm for each piece end product



(7) Computer Control Cabinet

  • Programmable setting of profile length and quantity
  • Operating system language: English and Chinese
  • Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved
  • PLC: Panasonic or customerization



Warranty

  • Warranty: 1 year warranty from date of shipment
  • Guarantee:

1: Guaranteed against malfunctions due to manufacturing defects for 1 year after date of shipment. Repairs will be made free of charge.

2: Repairs will not be performed free of change even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

3:Air ticket, transportation cost, hotel, meals and 100$ per day shall be for purchaser’s account if manufacturer’s engineer has to be send to purchaser’s factory to maintain the machine during the guarantee period.



5. FAQ

1) Q: Are you manufacturer or trading company?

A: We are manufacturer and trading company .



2) Q: Do you provide installing and training overseas?

A: Overseas machine install and worker training services are optional.



3) Q: How is your after sales support?

A: We provide technical support on line as well as overseas services by skillful technicians.



4) Q: How does your factory do regarding quality control?

A: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.



5) How can I trust you that machines pasted testing running before shipping?

A: 1) We record the testing video for your reference. Or,

2) We welcome you visit us and test machine by yourself in our factory.



6) Q: Do you have this roof panel roll forming machine in stock?

A: No, machine is made to order.
