4KW Main Powet Shutter Roll Forming Machine by Chain 56mm Shaft

Basic Information
Place of Origin: China
Brand Name: Saibo
Certification: CE/IS09001/SGS
Model Number: YX17-126
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Suitable for ocean shipment
Delivery Time: 60 working days after received deposit
Payment Terms: L/C, T/T, Western Union
Supply Ability: 350 sets per year
Contact Now
Detail Information
Product Name: Shutter Roll Forming Machine Roller Material: ASTM1045 Chrome Plated Surface With Chrome
Station: 14 Stations Drive: Chain, 1.0inch
Steel Thickness: 0.4-0.7mm Main Motor: 4kw
Hydraulic Power: 3kw Coil Width: According To The Final Profile
Working Speed: 0-15m/min

Product Description

Shutter Roll Forming Machine

Profile:

1. Coil width: according to the final profile

2. Thickness: 0.4-0.7mm

3. Suitable material: Galvanized steel up to 235Mpa

4KW Main Powet Shutter Roll Forming Machine by Chain 56mm Shaft

Layout:

4KW Main Powet Shutter Roll Forming Machine by Chain 56mm Shaft

Manual de-coiler—Feeding—Roll Forming—Cutting—Out table



Machine Detailed Parameters

1 Machine structure Wire-electrode cutting structure
2 Total power

Motor power-4kw

Hydraulic power-3kw

3 Roller stations About 14 stations + one station for rectify (according the final design)
4 Productivity 0-15m/min
5 Drive system By 1.0 inch single chain
6 Diameter of shaft ¢56mm solid shaft

7



Voltage 380V 50Hz 3phases (Customized)

8



Container need 20GP container





Specification of Components

No   Technical Specification & Remark
1

Manual Uncoiler





  • Width of feeding: 350mm
  • Capability: 3 Ton
  • Bound of expand &fight: 380mm—520mm
  • Mode of expand &fight: inner expand &fight by manual
  • Way of feeding: manual
  • Quantity: 1
2

Main Roll Forming Machine



  • Roller material:ASTM1045 chrome plated surface with chrome
  • Shaft diameter: ¢56mm material: SAE1045 with tempering
  • To avoid accidents, the driven parts will be covered with the protective cover
3

Machine structure:



  • Main frame by 350H beam welding
  • Machine structure: Wall board panel
4

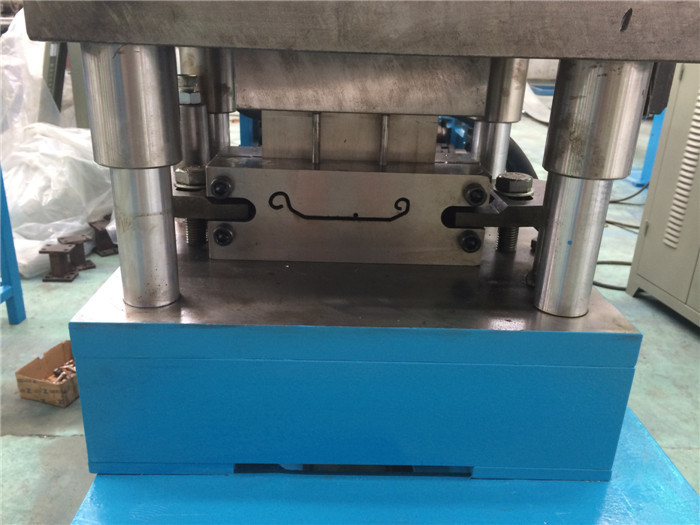

Hydraulic cutting system



  • Cutting after forming: Cut the sheet after roll forming to required length
  • Uses two hydraulic cylinders for operation.
  • Material of blade:Cr12, 58-62 HRC hardness
  • Cutting power by hydraulic,3KW
  • Working pressure: 10-12Mpa adjustable
  • Length measuring: Automatic encoder length measuring
  • Tolerance of length: +/- 1.5mm for each piece end product
5

Hydraulic System









  • Hydraulic power: 3kw
  • Working pressure: 10-12Mpa adjustable
  • Solenoid valve: 1 group
  • Hydraulic oil: 46# hydraulic oil
  • Quantity :1





6

Computer Control Cabinet





  • Programmable setting of profile length and quantity
  • Operating system language: English and Chinese
  • Voltage, Frequency, Phase: 380 V, 50 Hz, 3Phase
  • Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved
  • Length inaccuracy can be amended easily.
  • Control panel: Button-type switch and touch screen
  • Unit of length: millimeter
7

Out table



  • Jointed by steel tube
  • Quantity: 2 units
8

Spare Parts



  • Bearing: 2 pieces.
  • Limit switch: 2 pieces
  • Relay: 2 pieces.
  • Oil tube: 1 pieces.
  • Screws and nuts: some.
  • Chain: 1 piece
  • Tools: spanner, hex spanner and adjustable wrench and other correlative adjust machine tools



Warranty
Warranty: 1 year warranty from date of shipment
Guarantee:
1: Guaranteed against malfunctions due to manufacturing defects for 1 year after date of shipment. Repairs will be made free of charge.
2: Repairs will not be performed free of change even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
3:Air ticket, transportation cost, hotel, meals and 100$ per day shall be for purchaser’s account if manufacturer’s engineer has to be send to purchaser’s factory to maintain the machine during the guarantee period.

4. Installation and training
a. If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
b. Without visiting, we will send you user manual and video to teach you to install and operate.
C. If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.
