Driven by Chain Shutter Roll Forming Machine without Punching 56mm Shaft

Basic Information
Place of Origin: China
Brand Name: Saibo
Certification: CE/IS09001/SGS
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Suitable for ocean shipment
Delivery Time: 60 working days after received deposit
Payment Terms: L/C, T/T, Western Union
Supply Ability: 350 sets per year
Contact Now
Detail Information
Roller Material: ASTM1045 Chrome Plated Surface With Chrome Station: 14 Stations( According To The Final Design)
Drive: By Chain, 1.0inch Steel Thickness: 0.4-0.8mm
Power: 4kw+3kw Coil Width: According To The Final Profile
Working Speed: 0-15m/min Color: Bule And Yellow

Product Description

Shutter Roll Forming Machine



No Specification of the material

1



Suitable Material Galvanized steel

2



Width of the raw material According the profile
3 Thickness 0.4-0.8mm



Layout:

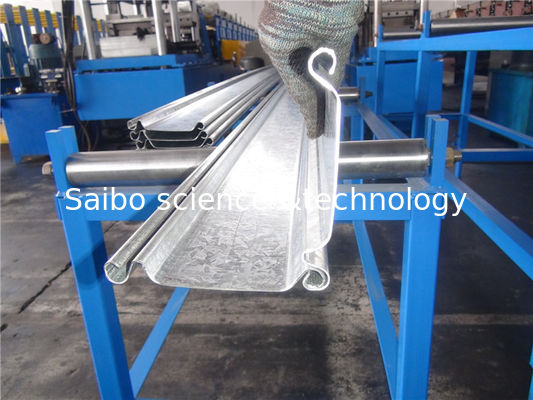

Driven by Chain Shutter Roll Forming Machine without Punching 56mm Shaft

Manual de-coiler—Feeding—Roll Forming—Cutting—Out table



Machine Detailed Parameters

1 Machine structure Wire-electrode cutting structure
2 Total power

Motor power-4kw

Hydraulic power-3kw

3 Roller stations About 14 stations + one station for rectify (according the final design)
4 Productivity 0-15m/min
5 Drive system By 1.0 inch single chain
6 Diameter of shaft ¢56mm solid shaft

7



Voltage 380V 50Hz 3phases (Customized)

8



Container need 20GP container





Specification of Components

No   Technical Specification & Remark
1

Manual Uncoiler





  • Width of feeding: 350mm
  • Capability: 3 Ton
  • Bound of expand &fight: 380mm—520mm
  • Mode of expand &fight: inner expand &fight by manual
  • Way of feeding: manual
  • Quantity: 1
2

Main Roll Forming Machine



  • Roller material:ASTM1045 chrome plated surface with chrome
  • Shaft diameter: ¢56mm material: SAE1045 with tempering
  • To avoid accidents, the driven parts will be covered with the protective cover
3

Machine structure:



  • Main frame by 350H beam welding
  • Machine structure: Wall board panel
4

Hydraulic cutting system



  • Cutting after forming: Cut the sheet after roll forming to required length
  • Uses two hydraulic cylinders for operation.
  • Material of blade:Cr12, 58-62 HRC hardness
  • Cutting power by hydraulic,3KW
  • Working pressure: 10-12Mpa adjustable
  • Length measuring: Automatic encoder length measuring
  • Tolerance of length: +/- 1.5mm for each piece end product
5

Hydraulic System









  • Hydraulic power: 3kw
  • Working pressure: 10-12Mpa adjustable
  • Solenoid valve: 1 group
  • Hydraulic oil: 46# hydraulic oil
  • Quantity :1





6

Computer Control Cabinet





  • Programmable setting of profile length and quantity
  • Operating system language: English and Chinese
  • Voltage, Frequency, Phase: 380 V, 50 Hz, 3Phase
  • Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved
  • Length inaccuracy can be amended easily.
  • Control panel: Button-type switch and touch screen
  • Unit of length: millimeter
7

Out table



  • Jointed by steel tube
  • Quantity: 2 units
8

Spare Parts



  • Bearing: 2 pieces.
  • Limit switch: 2 pieces
  • Relay: 2 pieces.
  • Oil tube: 1 pieces.
  • Screws and nuts: some.
  • Chain: 1 piece
  • Tools: spanner, hex spanner and adjustable wrench and other correlative adjust machine tools



Warranty

  • Warranty: 1 year warranty from date of shipment
  • Guarantee:

1: Guaranteed against malfunctions due to manufacturing defects for 1 year after date of shipment. Repairs will be made free of charge.

2: Repairs will not be performed free of change even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

3:Air ticket, transportation cost, hotel, meals and 100$ per day shall be for purchaser’s account if manufacturer’s engineer has to be send to purchaser’s factory to maintain the machine during the guarantee period.
