Wire-electrode Cutting Shutter Roll Forming Machine with Punching 56mm Shaft

Basic Information
Place of Origin: China
Brand Name: Saibo
Certification: CE/IS09001/SGS
Model Number: YX20-110
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Suitable for ocean shipment
Delivery Time: 60 working days after received deposit
Payment Terms: L/C, T/T, Western Union
Supply Ability: 350 sets per year
Contact Now
Detail Information
Roller Material: ASTM1045 Chrome Plated Surface With Chrome Station: 14 Stations( According To The Final Design)
Drive: By Chain, 1.0inch Single Line Steel Thickness: 0.8-1.25mm
Power: 7.5kw+5.5kw Coil Width: According To The Final Profile
Working Speed: 0-15m/min Color: Bule And Yellow

Product Description

Shutter Roll Forming Machine



No Specification of the material

1



Suitable Material Galvanized steel

2



Width of the raw material 185mm
3 Thickness 0.8-1.25mm

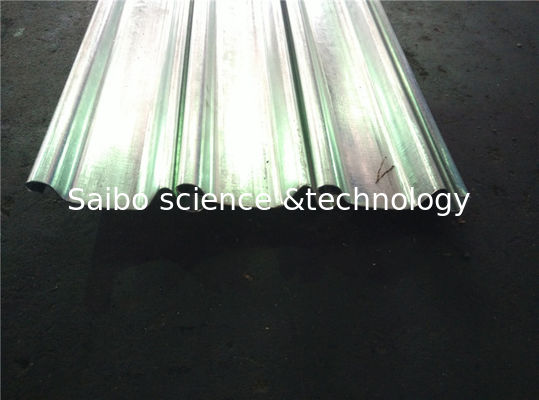

Wire-electrode Cutting Shutter Roll Forming Machine with Punching 56mm Shaft

Layout:

Wire-electrode Cutting Shutter Roll Forming Machine with Punching 56mm Shaft

Manual Uncoiler—Roll Forming—Rectify—Punching—Cutting—Out table



Machine Detailed Parameters

1 Machine structure Wire-electrode cutting structure
2 Total power

Motor power-7.5kw

Hydraulic power-5.5kw

3 Roller stations About 14 stations + one station for rectify (according the final design)
4 Productivity 0-15m/min
5 Drive system By 1.0 inch single chain
6 Diameter of shaft ¢56mm solid shaft

7



Voltage 380V 50Hz 3phases (Customized)



Specification of Components

No   Technical Specification & Remark
1

Manual Uncoiler





  • Width of feeding: 350mm
  • Capability: 3 Ton
  • Bound of expand &fight: 380mm—520mm
  • Mode of expand &fight: inner expand &fight by manual
  • Way of feeding: manual
  • Quantity: 1
2

Main Roll Forming Machine



  • Roller material:ASTM1045 chrome plated surface with chrome
  • Shaft diameter: ¢56mm material: SAE1045 with tempering
  • To avoid accidents, the driven parts will be covered with the protective cover
3

Machine structure:



  • Main frame by 350H beam welding
  • Machine structure: Wall board panel
4

Hydraulic punching & cutting system



  • Cutting & Punching after forming: Cut the sheet after roll forming to required length
  • Uses two hydraulic cylinders for operation.
  • Material of blade/punching mould: Cr12, 58-62 HRC hardness
  • Power by hydraulic,5.5KW
  • Working pressure: 12-16Mpa adjustable
  • Length measuring: Automatic encoder length measuring
  • Tolerance of length: +/- 1.5mm for each piece end product
5

Hydraulic System









  • Hydraulic power: 5.5kw
  • Working pressure: 12-16Mpa adjustable
  • Solenoid valve: 1 group
  • Hydraulic oil: 46# hydraulic oil
  • Quantity :1





6

Computer Control Cabinet





  • Programmable setting of profile length and quantity
  • Operating system language: English and Chinese
  • Voltage, Frequency, Phase: 380 V, 50 Hz, 3Phase
  • Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved
  • Length inaccuracy can be amended easily.
  • Control panel: Button-type switch and touch screen
    • Unit of length: millimeter
    • PLC brand: Panasonic
7

Out table



  • Jointed by steel tube
  • Size: about 2.0m long*0.8mwide*0.6-1mhigh
  • One out table with three support roller
  • Quantity: 2 units
8

Spare Parts



  • Bearing: 2 pieces.
  • Limit switch: 2 pieces
  • Relay: 2 pieces.
  • Oil tube: 1 pieces.
  • Screws and nuts: some.
  • Chain: 1 piece
  • Tools: spanner, hex spanner and adjustable wrench and other correlative adjust machine tools





Installation and training:

a.If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.

b.Without visiting, we will send you user manual and video to teach you to install and operate.

C.If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.



After Service

a.One year guarantee for whole machine.

b.24 hours technical support by email or calling

c.If there is any problem found of the machine, we will repair it for free in one year.
