0.5-1.2MM Shutter Roll Forming Machine with Continuity punch Punching 56mm Shaft

Basic Information
Place of Origin: China
Brand Name: Saibo
Certification: CE/IS09001/SGS
Model Number: YX17-126
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Suitable for ocean shipment
Delivery Time: 60 working days after received deposit
Payment Terms: L/C, T/T, Western Union
Supply Ability: 350 sets per year
Contact Now
Detail Information
Roller Material: ASTM1045 Chrome Plated Surface With Chrome Station: 10stations +1 Station Of Rectify
Drive: 1.0inch Double Line Chain Steel Thickness: 0.5-1.2mm GI Or Carbon Steel 195-235Mpa
Power: 4kw+3kw Coil Width: 266mm
Working Speed: 0-15m/min Color: Bule And Yellow

Product Description

Shutter Roll Forming Machine



No Specification of the material

1



Suitable Material GI or color steel

2



Width of the raw material 266mm
3 Thickness 0.5-1.2mm



Layout:

0.5-1.2MM Shutter Roll Forming Machine with Continuity punch Punching 56mm Shaft

Decoiler→punching→ feeding→roll forming→rectify→post cutting →output table



0.5-1.2MM Shutter Roll Forming Machine with Continuity punch Punching 56mm Shaft

0.5-1.2MM Shutter Roll Forming Machine with Continuity punch Punching 56mm Shaft



Specification of Components

No   Technical Specification & Remark
1

Manual Uncoiler





  • Width of feeding: 350mm
  • Capability: 3 Ton
  • Bound of expand &fight: 380mm—520mm
  • Mode of expand &fight: inner expand &fight by manual
  • Way of feeding: manual
  • Quantity: 1
2 Feeding
  • Armed adjustable center of the forming rollers and of sufficient length to prevent lateral movement of the strip on its entry to punching
  • Entrance table-guide: adjustable
  • Entrance width range:10-25mm
  • Entrance and guide roller: diameter is ¢65mm, material is sae1045, surface with chrome
  • Quantity: 1

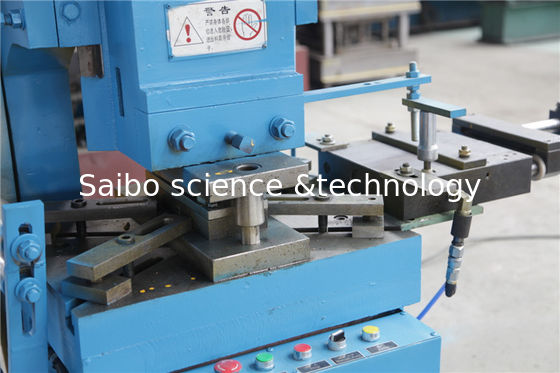

3 Punching
  • Machine adopt 25Tons punching machine
  • Feeding by air pneumatic
  • Air pneumatic power: 3KW (provide by buyer)
  • Punching mold: Cr12 with heat treatment
4

Main Roll Forming Machine





  • Machine Voltage, Frequency, Phase: 380 V, 50 Hz, 3Phase
  • Roll station:10stations +1 station of rectify
  • Roller material:SAE1045, hardness and chrome plated surface
  • Shaft diameter: ¢56mm material: SAE1045
5

Machine structure:



  • Main frame by 350H beam welding
  • Machine structure: Wall board panel
6 Rectify device
  • One station after roll forming,
  • Function: for revise the end product up and down/ left and right to straightness
  • Roller material: Roller material: GCR15 quenched 58°-62°finishing turning CNC
  • Adjust by hand wheel
  • Quantity: 1
7

Hydraulic cutting system



  • Cutting & Punching after forming: Cut the sheet after roll forming to required length
  • Uses two hydraulic cylinders for operation.
  • Material of blade/punching mould: Cr12, 58-62 HRC hardness
  • Power by hydraulic,3KW
  • Working pressure: 12-16Mpa adjustable
  • Length measuring: Automatic encoder length measuring
  • Tolerance of length: +/- 1.5mm for each piece end product
8

Hydraulic System









  • Hydraulic power: 3kw
  • Working pressure: 12-16Mpa adjustable
  • Solenoid valve: 1 group
  • Hydraulic oil: 46# hydraulic oil
  • Quantity :1





9

Computer Control Cabinet





  • Programmable setting of profile length and quantity
  • Operating system language: English and Chinese
  • Voltage, Frequency, Phase: 380 V, 50 Hz, 3Phase
  • Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved
  • Length inaccuracy can be amended easily.
  • Control panel: Button-type switch and touch screen
  • Unit of length: millimeter
10

Out table



  • Jointed by steel tube
  • Size: about 2.0m long*0.8mwide*0.6-1mhigh
  • One out table with three support roller
  • Quantity: 2 units
11

Spare Parts



  • Bearing: 2 pieces.
  • Limit switch: 2 pieces
  • Relay: 2 pieces.
  • Oil tube: 1 pieces.
  • Screws and nuts: some.
  • Chain: 1 piece
  • Tools: spanner, hex spanner and adjustable wrench and other correlative adjust machine tools





Installation and training:

a.If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.

b.Without visiting, we will send you user manual and video to teach you to install and operate.

C.If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.



After Service

a.One year guarantee for whole machine.

b.24 hours technical support by email or calling

c.If there is any problem found of the machine, we will repair it for free in one year.
