11KW X 2 Floor Deck Roll Forming Machine Chains Drive Wall Board Structure

China 11KW X 2 Floor Deck Roll Forming Machine Chains Drive Wall Board Structure supplier
11KW X 2 Floor Deck Roll Forming Machine Chains Drive Wall Board Structure supplier 11KW X 2 Floor Deck Roll Forming Machine Chains Drive Wall Board Structure supplier 11KW X 2 Floor Deck Roll Forming Machine Chains Drive Wall Board Structure supplier 11KW X 2 Floor Deck Roll Forming Machine Chains Drive Wall Board Structure supplier

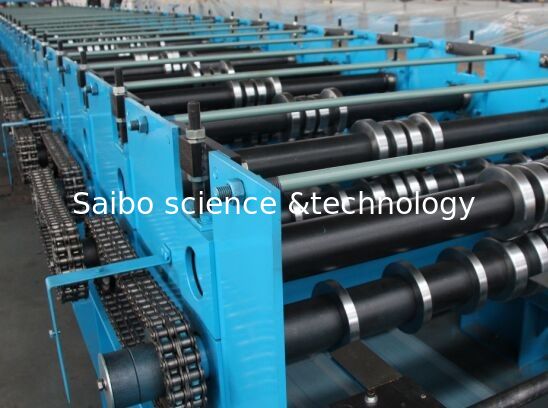

Large Image :  11KW X 2 Floor Deck Roll Forming Machine Chains Drive Wall Board Structure

Product Details:

Place of Origin: China
Brand Name: Saibo
Certification: CE/ISO
Model Number: YX75-305-915

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Suitable for ocean shipment
Delivery Time: 70 working days after received deposit
Payment Terms: T/T, L/C
Supply Ability: 300 sets per year
Detailed Product Description
Product Name: Floor Deck Roll Forming Machine Power: 11KW X2+5.5kw
Size Of Purlin: YX75-305-915 Steel Thickness: 0.7-1.2mm
Decoiler: Manual Or Hydraulic Station: 30 Stations
Roller Material: Roller Material: ASTM1045 Chrome Plated Surface With Hardness, CNC Size Of Line: About 11mx2.1x1.6m
Drive: By Chain Container Need: 1X40HQ

sheet metal forming equipment

1. Specification of the material

1 Suitable Material Colored Steel plate, Galvanized steel
2 Width of the raw material 1250mm
3 Thickness 0.7mm-1.2mm



2. Machine Detailed Parameters

1



Roll Forming Machine YX75-305-915

2



Machine structure Wall board structure

3



Total power

Motor power-11kw x2

Hydraulic power-5.5kw

4



Roller stations About 30 stations

5



Productivity

0-15m/min

6



Drive system By chain

7



Diameter of shaft ¢85mm solid shaft

8



Voltage 380V 50Hz 3phases (Customized)

9



Color Of The Machine Yellow and blue

10



Container need 40HQ container

11



Deliver Time 70 days

12



Terms Of Payment 30%T/T 70% pay before shipment



3. Profile drawing

11KW X 2 Floor Deck Roll Forming Machine Chains Drive Wall Board Structure



4. The Chart of Process Flow

11KW X 2 Floor Deck Roll Forming Machine Chains Drive Wall Board Structure





5. Specification of Components

(1) 5T Manual Un-coiler

  • Width of feeding: 1250mm
  • Capability: 5 Ton
  • Inter diameter: 500-590mm
  • Maximal out diameter: 1500mm
  • Mode of expand &fight: inner expand &fight by manual
  • Way of feeding: manual



(2) Main Roll Forming Machine

  • Roller material: ASTM1045 chrome plated surface with hardness, CNC
  • Shaft diameter: ¢85mm material: SAE1045 with quenching and tempering
  • Main frame by 350H beam welding
  • Machine structure: wall board



(3) Hydraulic cutting system

  • Cutting after forming: Cut the sheet after roll forming to required length
  • Uses two hydraulic cylinders for operation.
  • Material of blade:Cr12, 58-62 HRC hardness
  • Cutting power by hydraulic,5.5KW
  • Working pressure: 12Mpa adjustable
  • Length measuring: Automatic encoder length measuring
  • Tolerance of length: +/- 1.5mm for each piece end product



(4) Computer Control Cabinet

  • Programmable setting of profile length and quantity
  • Operating system language: English and Chinese
  • Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved
  • PLC: Panasonic or customerization
