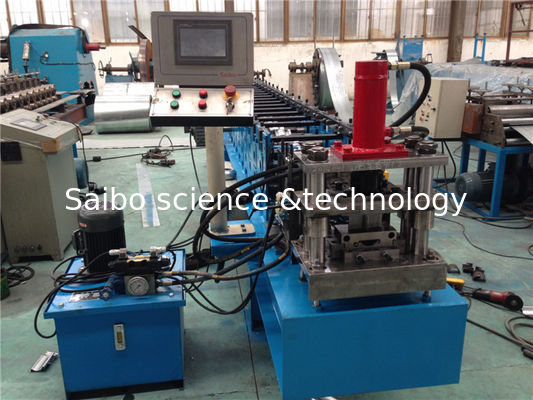

PLC control Door Frame Roll Forming Machine 128mm Coil Width

Basic Information
Place of Origin: China
Brand Name: Saibo
Certification: CE/IS09001/SGS
Model Number: YX16-84.5
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Suitable for ocean shipment
Delivery Time: 60 working days after received deposit
Payment Terms: L/C, T/T, Western Union
Supply Ability: 350 sets per year
Contact Now
Detail Information
Decoiler: Manual Or Hydraulic Product Name: Door Frame Roll Forming Machine
Roller Material: #45 Forged Steel With Chrome Station: 13 Stations
Drive: Chain Usage: Door Shutter
Container Need: 1X20GP Steel Thickness: 0.5-0.8mm

Product Description

YX16-84.5 Shutter Roll Forming Machine



Profile:

All of our machine profile is customized, below profile is only for your reference.

1. Coil width: 128mm

2. Effective width: according the profile

3. Thickness: 0.5-0.8mm

PLC control Door Frame Roll Forming Machine 128mm Coil Width

Layout:

PLC control Door Frame Roll Forming Machine 128mm Coil Width

Manual de-coiler—Feeding—Roll Forming—Cutting—Out table



Specifications:

Item NO



Description



Offered specification

1 Roll Forming Machine

Shutter



2 Coil width 128mm
3 Rolling Speed 12-15m/min(not include cutting time)
4 Rolling Thickness 0.5-0.8mm GI
5 Control System PLC (Panasonic) as list in the note
6 Un Coiler 3T manual decoiler
7 Pre-cutting By manual
8 Roller Stations About 13 stations (according the final design)
9 Roller Material 45# forge steel, coated with chrome
10 Shaft Material and DIA ¢56mm, material is 45# forge steel
11 Post cutting Hydraulic cutting and punching at the same time after forming
12 Maim Motor Power 4kw
13 Hydraulic Station Power 3kw
14 Hydraulic Pressure 10-12Mpa adjustable
15 Material Of Cutting Cr12Mov quenching 58-62℃
16 Structure Of The Stations Wall panel
17 Tolerance 3m+-1.5mm
18 Electric Source

380V, 50HZ,3 phase

According to customer’s require



19 Way Of Drive By chain
20 Color Of The Machine Yellow and blue
21 Size of the machine L*W*H about 6.0m*1m*1.2m
22 Container Need 1x20 feet



Main Features

1. Simple structure in linear type ,easy in installation and maintenance.

2. Adopting advanced world famous brand components in pneumatic parts, electric parts and operation parts.

3. Running in a high automatization and intellectualization, no pollution

4. No need foundation, easy operation
