5.5KW Automatically Roof Panel Roll Forming Machine 40GP Container

Basic Information
Place of Origin: China
Brand Name: Saibo
Certification: CE/ISO
Model Number: YX30-200-1000
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Suitable for ocean shipment
Delivery Time: 70 working days after received deposit
Payment Terms: T/T or L/C
Supply Ability: 300 sets per year
Contact Now
Detail Information
Product Name: Roof Panel Roll Forming Machine Power: 5.5KW+4kw
Size Of Purlin: YX30-200-1000 Steel Thickness: 0.3-0.8mm
Decoiler: 45# Forge Steel, Surface With Chrome Size Of Line: About 8.0mx2.1mx1.6m
Drive: By Chain Color: Bule And Yellow

Product Description

YX30-200-1000 Roofing Panel Roll Forming Machine



1. Specification of the material

Suitable Material: Colored Steel plate, Galvanized steel

Width of the raw material :1250mm

Thickness :0.3-0.8mm


2. Machine Detailed Parameters

Roll Forming Machine YX30-200-1000
Machine structure Guide pillar structure
Total power

Motor power-5.5kw

Hydraulic power-4kw

Roller stations About 20 stations
Productivity 0-15m/min
Drive system By chain
Diameter of shaft ¢70mm solid shaft



Voltage



380V 50Hz 3phases (Customized)
Color Of The Machine Yellow and blue



Container need



40GP container
Deliver Time 70 days
Terms Of Payment 30%T/T 70% pay before shipment







3. Profile drawing

5.5KW Automatically Roof Panel Roll Forming Machine 40GP Container

4. The Chart of Process Flow



Manual Uncoiler—Pre-cutting—Roll Forming—Cutting—out table5.5KW Automatically Roof Panel Roll Forming Machine 40GP Container



5. Specification of Components

(1) 5T Manual Un-coiler

  • Width of feeding: 1250mm
  • Capability: 5 Ton
  • Inter diameter: 500-590mm
  • Maximal out diameter: 1500mm
  • Mode of expand &fight: inner expand &fight by manual
  • Way of feeding: manual

(2)Pre-cutting

  • Pre-cutting install after feeding for customer change coil only
  • Cutting type: manual
  • Function:for coil replacement
  • Quantity: 1

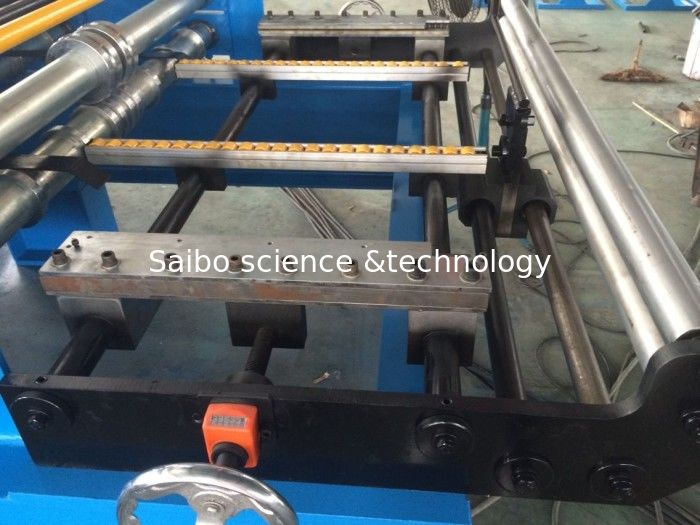

(3) Main Roll Forming Machine

  • Roller material:ASTM1045 chrome plated surface with chrome
  • Shaft diameter: ¢70mm material: SAE1045 with quenching and tempering
  • Main frame by 350H beam welding
  • Machine structure: guide pillar



(4) Mobile Protective mesh

  • ​To avoid accidents, the machine will be covered with the mobile protective mesh



(5) Hydraulic cutting system

  • Cutting after forming: Cut the sheet after roll forming to required length
  • Uses two hydraulic cylinders for operation.
  • Material of blade:Cr12, 58-62 HRC hardness
  • Cutting power by hydraulic,4KW
  • Working pressure: 12Mpa adjustable
  • Length measuring: Automatic encoder length measuring
  • Tolerance of length: +/- 1.5mm for each piece end product



(6) Computer Control Cabinet

  • Programmable setting of profile length and quantity
  • Operating system language: English and Chinese
  • Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved
  • PLC: Panasonic or customerization
