Stainless Steel Seamless Pipe Welding Machine High Frequency 150kw

Basic Information
Place of Origin: China
Brand Name: Saibo
Certification: CE/ISO
Model Number: YX-50
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Suitable for ocean shipment
Delivery Time: 90 working days after received deposit
Detail Information
Product Name: High Frequency Weld Pipe Machine Line Main Motor Power: 132kw
Size Of Pipe: 20-63.5mm High Frequency Power: 132kw
Thickness: 0.8-3.0mm Line Speed: 0-80m/min
Drive: Gear Box Weld: High Frequency
High Light:

Automatic Pipe Welding Machine

,

Stainless Steel Pipe Welding Machine


Product Description

Specifications

1-Tube machine
2-Easy to operation
3- PLC control system
4-High speed
5: High Frequency Welded pipe making machine


Description Capacity:
1,Pipe ID: 20mm-63.5mm
2,Thickness:0.8-3.0mm
3,Speed:0-80m/min

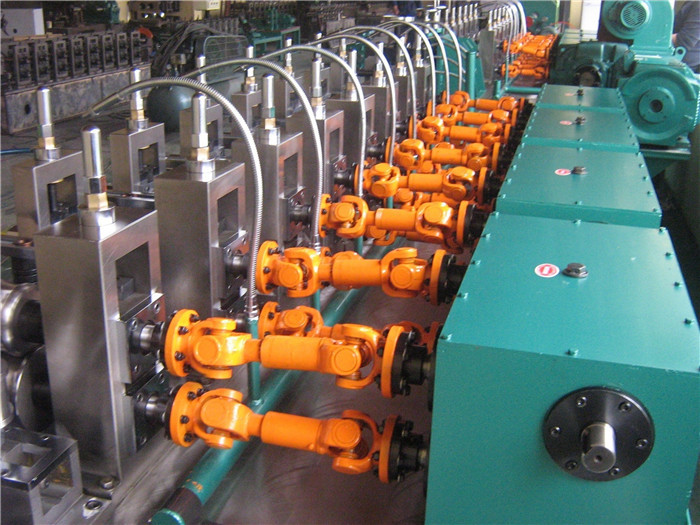

Stainless Steel Seamless Pipe Welding Machine High Frequency 150kw 0



Double-head uncoiler

Briefing: Rotary type to change coils easily with a pneumatic brake
Parameters:
(1)The max. weight of coil:2000kg
(2)The inside diameter of coil:450-520mm
(3)The max. outside diameter of coil :1600mm
(4)The max .width of coil: 115mm




Mechanical segments

1. Steel strip revolving bracket
2.Double-roller feeder
3.Horizontal accumulator of helix metal strip


Power configuration
1. Motor of horizontal accumulator of helix steel strip 11kw(AC motor)
2.motor of double-roller feeder 7.5kw(AC motor)

3.main motor power: 132kw
4. high frequency power: 150kw

Computer-controlled flying saw
A. Power of automatic controller: 11kw
B. Automatic tracking machine
1.The max .diameter to be cut :Φ63.5mm
2.The range of cutting length :4m-7m
3.The max. wall thickness to be cut :3.0mm
C. Type : round metal saw blade:Φ400mm×Φ35mm×Φ2.5mm
D. Power of the saw: 15kw
E. Accuracy of the cutting length :within±0.3mm

Discharging table
Conveyed on the rolling way ,reversed pneumatically(with 2.2kw 6classes motor)
