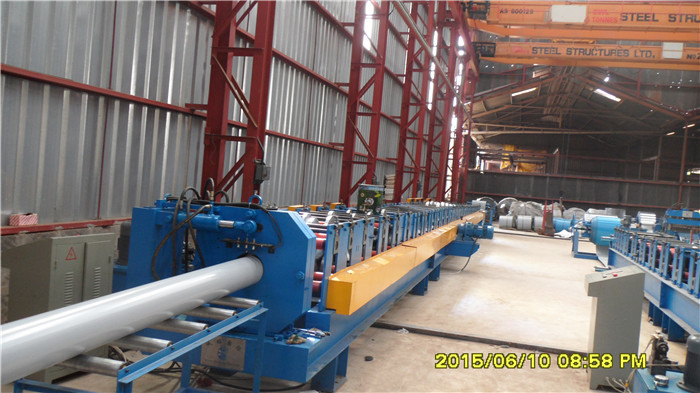

45# Steel Round Downspout Roll Forming Machine 40GP Container Integrated Adjustment

Basic Information
Place of Origin: China
Brand Name: Saibo
Certification: CE/ISO
Model Number: YX100
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Suitable for ocean shipment
Delivery Time: 60 working days after received deposit
Supply Ability: 300 sets per year
Contact Now
Detail Information
Product Name: Downspout Roll Forming Machine Power: 7.5kw+5.5kw+2.2kw
Size: 100 Steel Thickness: 0.4-0.7mm
Station: 22 Stations Roller Material: 45# Steel
Drive: Single Chain Container Need: 1X40GP

Product Description

Round Downspout Roll Forming Machine 40GP Container Integrated Adjustment



 Main specification



No Specification of the material

1



Suitable Material Colored Steel plate, Galvanized steel

2



Width of the raw material 333mm
3 Thickness 0.5-0.7mm





Profile drawing:

45# Steel Round Downspout Roll Forming Machine 40GP Container Integrated Adjustment

The Chart of Process Flow

45# Steel Round Downspout Roll Forming Machine 40GP Container Integrated Adjustment

Manual Uncoiler—Roll Forming—Cutting—out table



Specification of Components



No   Technical Specification & Remark
1

Manual Uncoiler







  • Capability: 3 Ton
  • Mode of expand &fight: inner expand &fight by manual
  • Way of feeding: manual
2

Main Roll Forming Machine



45# Steel Round Downspout Roll Forming Machine 40GP Container Integrated Adjustment

  • Roller material:ASTM1045 chrome plated surface with chrome
  • Shaft diameter: ¢65mm material: SAE1045 with tempering
3

Machine structure:



45# Steel Round Downspout Roll Forming Machine 40GP Container Integrated Adjustment

  • Main frame by 350H beam welding
  • Machine structure: wall board panel
4

Hydraulic cutting system

45# Steel Round Downspout Roll Forming Machine 40GP Container Integrated Adjustment



  • Cutting after forming: Cut the sheet after roll forming to required length
  • Material of blade:Cr12, 58-62 HRC hardness
  • Cutting power by hydraulic,5.5KW
5

Hydraulic System











  • Hydraulic power: 5.5kw
  • Working pressure: 12-16Mpa adjustable
  • Solenoid valve: 1 group





6

Computer Control Cabinet







  • Programmable setting of profile length and quantity
  • Operating system language: English and Chinese
  • Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved
  • Length inaccuracy can be amended easily.
  • PLC: Panasonic
7

Out table





  • Size: about 2.0m long*0.8mwide*0.6-1mhigh
  • Quantity: 2 units
8

Bending machine







  • Max bend angle: 90°
  • Function: bend and fasten at the same time
  • power; 2.2kw





6. Warranty

  • Warranty: 1 year warranty from date of shipment
  • Guarantee:

1: Guaranteed against malfunctions due to manufacturing defects for 1 year after date of shipment. Repairs will be made free of charge.

2: Repairs will not be performed free of change even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

3:Air ticket, transportation cost, hotel, meals and 100$ per day shall be for purchaser’s account if manufacturer’s engineer has to be send to purchaser’s factory to maintain the machine during the guarantee period.
