|Place of Origin:||China|
|Minimum Order Quantity:||1 set|
|Packaging Details:||Suitable for ocean shipment|
|Delivery Time:||50 working days after received deposit|
|Payment Terms:||L/C, T/T, Western Union|
|Supply Ability:||400 sets per year|
|Product Name:||Cut To Length Machine||Steel Thickness:||0.5-1.5mm|
|Roller Material:||SAE1045 Steel With Chrome||Station:||2 Rubber Stations|
|Drive:||Single Chain||Container Need:||1X20GP|

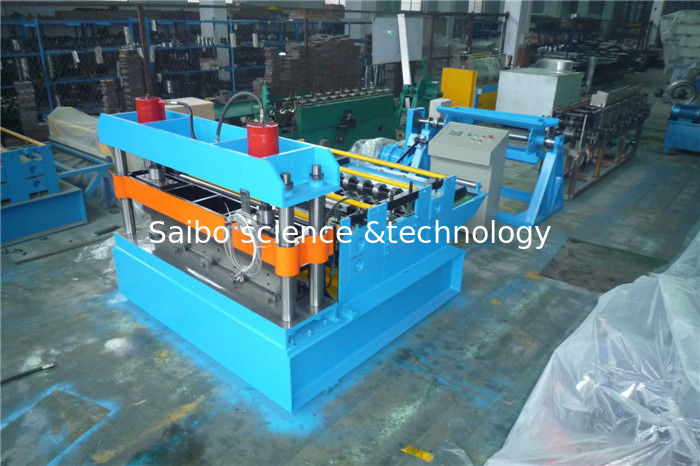

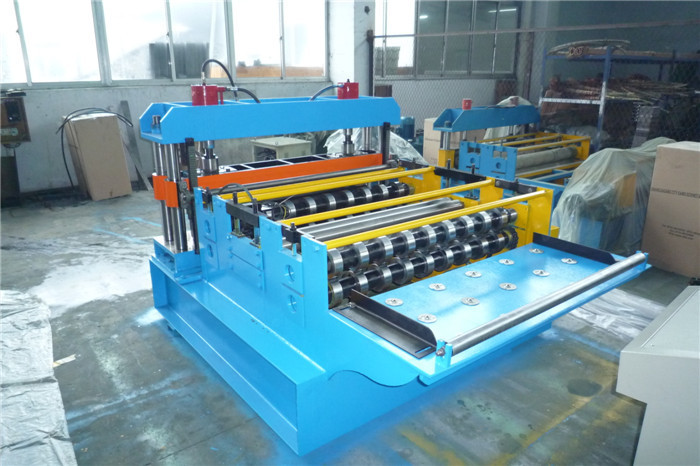

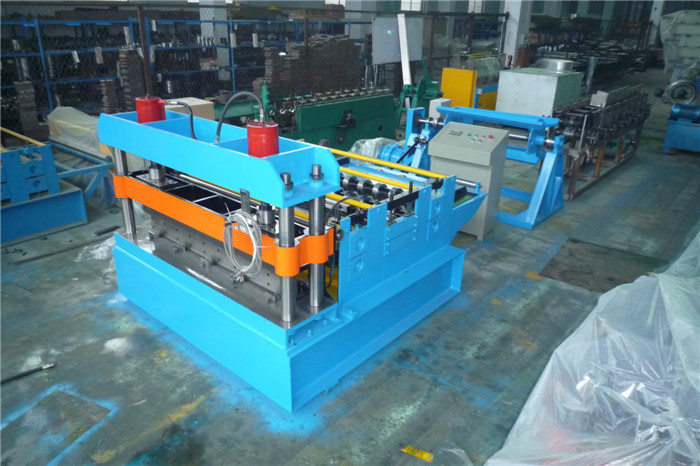

Cut To Length Machine
All of our machine profile is customized, above raw material is only for your reference.
1. Coil width: 1220mm
2. Thickness: 0.5-1.5mm
Manual de-coiler—Feeding—Cutting—Out table
|1||Roll Forming Machine||
Cut to Length Machine
|3||Rolling Speed||12-15m/min(not include cutting time)|
|4||Rolling Thickness||0.5-1.5mm GI|
|5||Control System||PLC (Panasonic) as list in the note|
|6||Un Coiler||5T manual de-coiler|
|7||Roller Stations||2 stations for feeding|
|8||Roller Material||Rubber roller|
|9||Shaft Material and DIA||￠85mm, material is 45# forge steel|

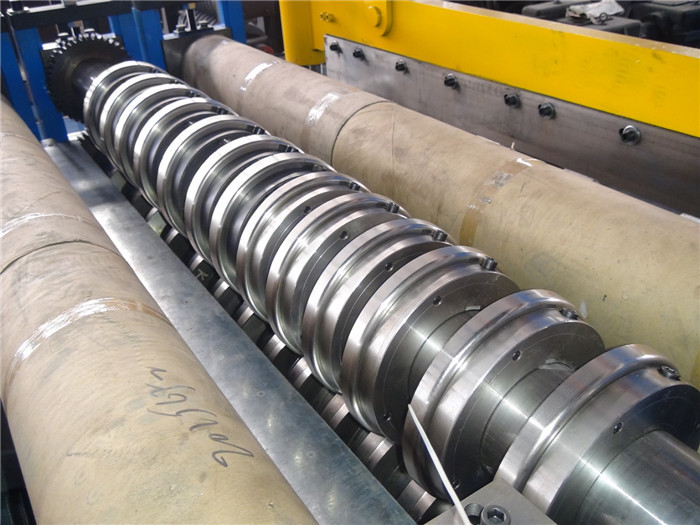

|10||Slitting||Maximum in 14 strips|
|11||Blades of slitting||13 sets of slitting|
|12||Post cutting||Hydraulic cutting slitting|
|13||Main Motor Power||7.5kw|
|14||Hydraulic Station Power||5.5kw|
|15||Hydraulic Pressure||12-16Mpa adjustable|
|16||Material Of Cutting||Cr12Mov quenching 58-62℃|
|17||Structure Of The Stations||Wall panel|
380V, 50HZ,3 phase
According to customer’s require
|20||Way Of Drive||By chain|
|21||Color Of The Machine||Yellow and blue|
|22||Size of the machine||L*W*H about 2.0m*1.7m*1.2m|
|23||Container Need||1x20 feet|
1. The structure is simple and the appearance of the machine is beautiful because we adopt the shape-steel structure and process as a whole after welding. It has the ability of strong loading and stable operation when running the machine.
2. All the components of machine are from brand-famous enterprise so that they ensure the machine normal function very effectively.
3. We adopt the automatic length-fixed forming and cutting to guarantee the length to be precise and the finished product clear without deforming.
4. It is very easy to install the equipment and suitable for producing in the factory.
5. The machine has features of low noise and high efficiency.
