| Place of Origin: | China |
|---|---|
| Brand Name: | Saibo |
| Certification: | CE/IS09001/SGS |
| Model Number: | Three Waves |
| Minimum Order Quantity: | 1 set |
| Price: | negotiable |
| Packaging Details: | Suitable for ocean shipment |
| Delivery Time: | 65 working days after received deposit |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 280 sets per year |
| Product Name: | Guard Rail Roll Forming Machine | Steel Thickness: | 2.0-3.2mm |
|---|---|---|---|
| Decoiler: | 8tons Hydraulic Decoiler With Coil Car | Roller Material: | Gcr15 Surface With Chrome |
| Station: | 18 Stations | Drive: | 180 Type Gear Box |
| Shaft: | ￠100mm | Leveling: | ￠180mm |
| High Light: | Highway Guardrail Roll Forming Machine,Highway Guardrail Forming Machine |
||

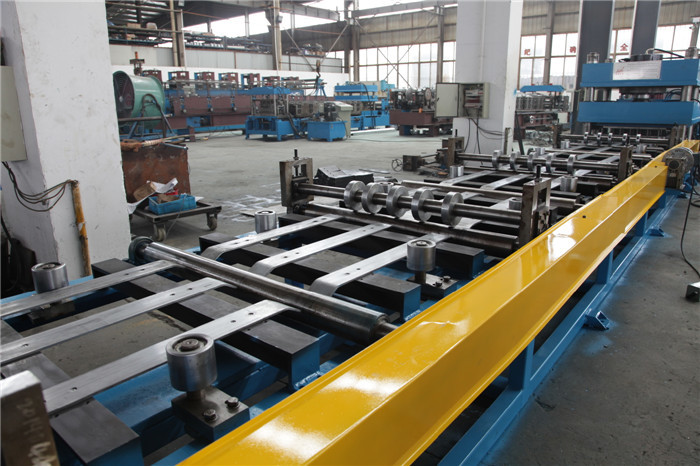

Three Waves Guard Rail Roll Forming Machine
Profile:
All of our machine profile is customized, above profile is only for your reference.
1. Coil width: 617mm
2. Thickness: 2.0-3.2mm
Layout:
Hydraulic De-coiling (8tons) --- cutting & welding ----flatting device --- hydraulic punching holes & cutting device Feeding material-----sheet transportation table (6500mm length) --- Roll forming---- Products stacking
Specifications:
| Item NO |
Description |
Offered specification |
| 1 | Roll Forming Machine |
Guardrail
|
| 2 | Material Width | 617mm |
| 3 | Rolling Speed | 2PCS/min (4.3M Length product) |
| 4 | Rolling Thickness | 2.0-3.2 mm |
| 5 | Control System | PLC (Panasonic) as list in the note |
| 6 | Un Coiler | 8 ton hydraulic de-coiler with coil car |
| 7 | Cutting &welding | For change coil |
| 8 | Leveling Station | 1 station (three rollers over four), 5.5kw |
| 9 | Punching | Four sets |
| 10 | Pre-cutting | By hydraulic |
| 11 | Material Of Cutting | Cr12Mov quenching 58-62℃ |
| 12 | Hydraulic Station Power | 22kw |
| 13 | Hydraulic Pressure | 20-25Mpa |
| 14 | Conveyor table | 3KW, 6.5 meters |
| 15 | Roller Stations | 18 stations (according the final design) |
| 16 | Roller Material |
GCR15, HRC58-62℃ coated with chrome |
| 17 | Shaft Material and DIA | ￠100mm, material is 45# forge steel |
| 18 | Maim Motor Power | 45kw |
| 19 | Structure Of The Stations | Guide pillar |
| 20 | Tolerance | 3m+-1.5mm |
| 21 | Electric Source |
380V, 50HZ,3 phase According to customer’s require
|
| 22 | Way Of Drive | By gearbox |
| 23 | Auto stacker | 3kw, 6.5 meters |
| 24 | Color Of The Machine | Yellow and blue |
| 25 | Container Need | 1 x40 feet & 1 x20 feet |
Main Features
1. The structure is simple and the appearance of the machine is beautiful because we adopt the shape-steel structure and process as a whole after welding. It has the ability of strong loading and stable operation when running the machine.
2. All the components of machine are from brand-famous enterprise so that they ensure the machine normal function very effectively.
3. We adopt the automatic length-fixed forming and cutting to guarantee the length to be precise and the finished product clear without deforming.
4. It is very easy to install the equipment and suitable for producing in the factory.
5. The machine has features of low noise and high efficiency.
