Precision C Purlin Roll Forming Machine With Hydraulic Punching System

Basic Information
Place of Origin: China
Brand Name: Saibo
Certification: CE/ISO
Model Number: C purlin
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Suitable for ocean shipment
Delivery Time: 60 working days after received deposit
Supply Ability: 300 sets per year
Detail Information
Product Name: C Purlin Roll Forming Machine Main Power: 7.5kw
Size: 40-50 Steel Thickness: 2.0mm
Station: 14 Stations+ One Stations Of Rectify Roller Material: Gcr15
Shaft Dia: 65mm Roll Forming Speed: 15m/min
High Light:

steel roll forming machine


storage rack roll forming machine

Product Description

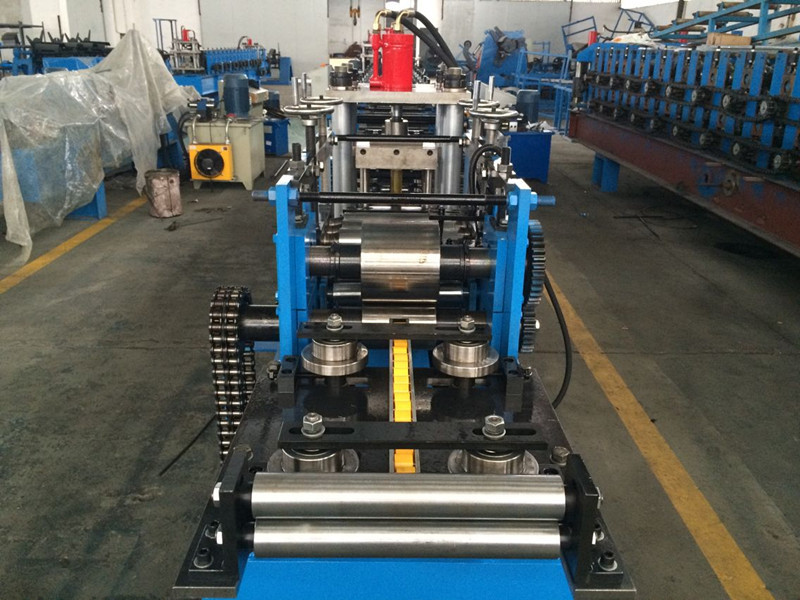

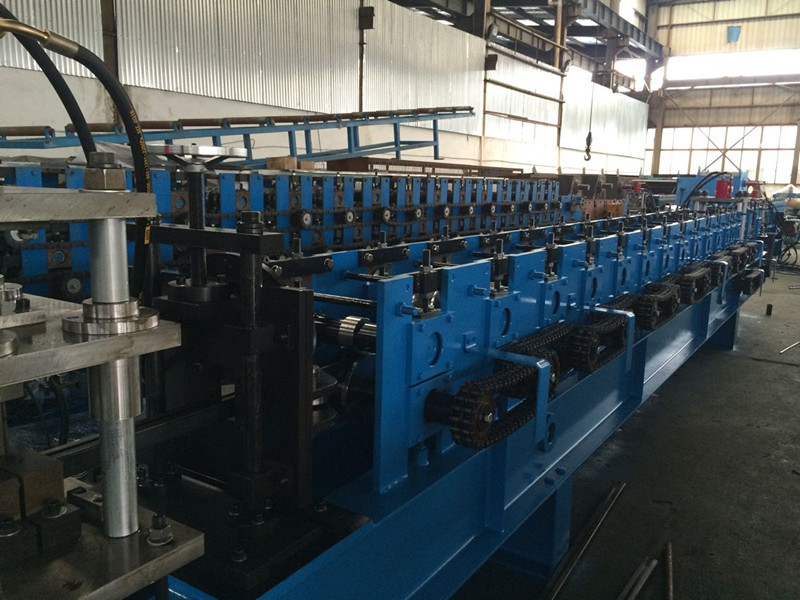

Flatten system Racking system roll forming machine C purlin pre punching system


Main specification


No Specification of the material



Suitable Material Carbon steel, GI



Width of the raw material According to the final profile
3 Thickness 2.0mm


Profile drawing:

Precision C Purlin Roll Forming Machine With Hydraulic Punching System 0


The Chart of Process Flow


Manual Un-coiler—Punching—Roll Forming—rectify—Cutting—out table



Specification of Components

No   Technical Specification & Remark

Manual Un-coiler



  • Width of feeding: 500mm
  • Capability: 3 Ton
  • Tension by manual
  • Way of feeding: manual
  • Color: blue
  • quantity: 1 unit

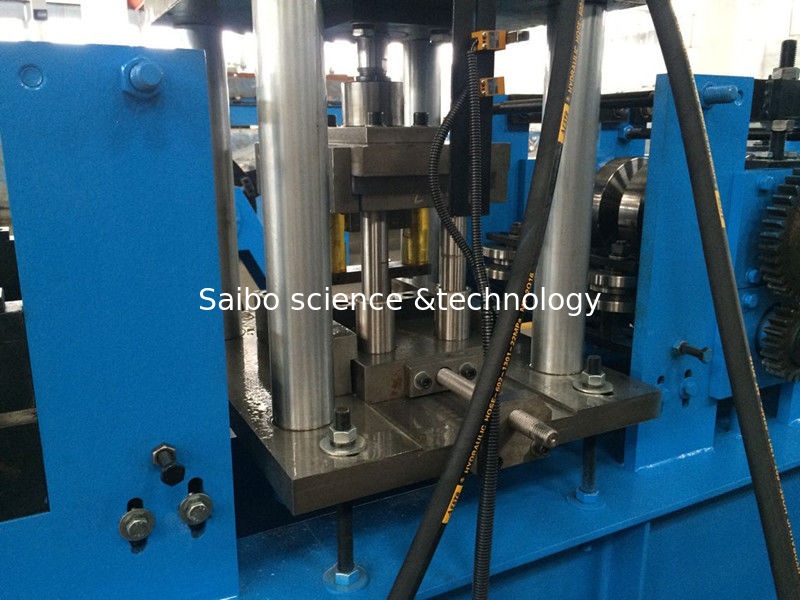

2 Hydraulic Punching System
  • Machine adopts pre-punching system
  • According to the customer request, machine adopts 1 unit punching station

Main Roll Forming Machine



  • Roll station:14stations +1 station of rectify
  • Roller material:Gcr15
  • Shaft diameter: ¢65mm material: SAE1045
  • main power: 7.5kw

Machine structure:



  • Main frame by 350H beam welding
  • Machine structure: wall board

Hydraulic cutting system



  • Machine adopt hydraulic post cutting system.
  • Cutting power by hydraulic, 5.5KW
  • Cutting after forming: Cut the sheet after roll forming to required length
  • Material of blade:Cr12 with heat treatment 58-60°

Hydraulic System






  • Hydraulic power: 5.5kw
  • Solenoid valve: 2 groups
  • Hydraulic oil: 46# hydraulic oil
  • quantity: 1 unit




Computer Control Cabinet





  • Programmable setting of profile length and quantity
  • Operating system language: English and Chinese
  • Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved
  • Length inaccuracy can be amended easily.

Out table



  • Jointed by steel tube
  • Size: about 2.0m long*0.8mwide*0.6-1mhigh
  • One out table with three support roller
  • Quantity: 2 units




  • Warranty: 1 year warranty from date of shipment
  • Guarantee:

1: Guaranteed against malfunctions due to manufacturing defects for 1 year after date of shipment. Repairs will be made free of charge.

2: Repairs will not be performed free of change even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

3:Air ticket, transportation cost, hotel, meals and 80$ per day shall be for purchaser’s account if manufacturer’s engineer has to be send to purchaser’s factory to maintain the machine during the guarantee period.


Installation and training

a. If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.

b. Without visiting, we will send you user manual and video to teach you to install and operate.

C. If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.




Contact Details

Phone Number : +8613921223200

WhatsApp : +8613921996208
