High Speed Angle Roll Forming Machine With Notching And Convey

Basic Information
Place of Origin: China
Brand Name: Saibo
Certification: CE/ISO
Model Number: 3mm Angle
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Suitable for ocean shipment
Delivery Time: 90 days
Payment Terms: L/C, T/T
Supply Ability: 300 sets per year
Detail Information
Product Name: Angle Profile Roll Forming Machine Shaft Diameter: 65mm
Steel Thickness: 3.0mm Decoiler: Hydraulic Or Manual
Station: 7 Stations+ On Station Of Rectify Roller Material: Gcr15
Cutting And Notching System: Before Roll Forming Speed: 20-30/min
Convey: Bwteen The Notching And Roll Forming Convey Length: 4 Meters
High Light:

Angle Roll Forming Machine


Metal Roll Forming Machine

Product Description

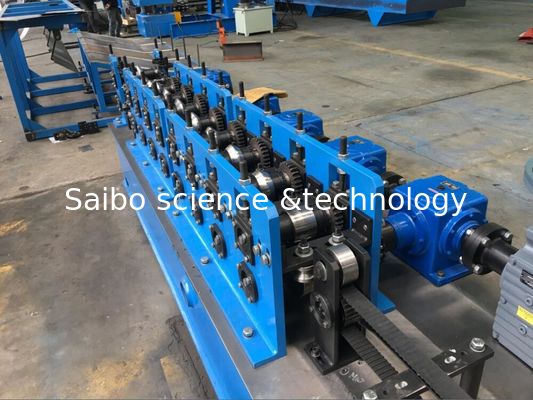

High Speed Angle Roll Forming Machine with notching and convey


main speficication:

High Speed Angle Roll Forming Machine With Notching And Convey 0


1. The Chart of Process Flow

manual decoiler— Feeding—nottching and cutting—convey— roll formingrectifystacker

High Speed Angle Roll Forming Machine With Notching And Convey 1



No   Technical Specification & Remark

3T manual decoiler


  • Steel coil width: 300mm;
  • Internal diameter of coil: variable, from 380 mm to 480mm
  • Maximum coil weight: 3000Kg;
  • extension and decoiling by manual
2 Combined pre-cutting and notching
  • The notching and cutting will take place at the same time.
  • Hydraulic power: 5.5kw
  • Hydraulic working pressure: 20Mpa
  • Material of blade:Cr12 with heat treatment 58-60°
  • Length measuring: Automatic encoder length measuring
3 Conveyor
  • The conveyor length: 4 meters
  • Conveyor function: keep enough material for the roll forming machine to get the high speed.

Main Roll Forming Machine


  • Profile steel thickness 3mm
  • Main motor power: 11kw
  • Machine Voltage, Frequency, Phase: 380 V, 50 Hz, 3Phase
  • Roll station: about 7 stations +1 station of straightening
  • Roller material:Gcr15, 58-62,HRC hardness and chrome plated surface
  • Shaft diameter: ¢65mm material: SAE1045
  • Machine roll forming speed:20-30m/min
  • Machine base frame adopt H beam welding steel
  • Structure: wallboard structure
  • Transmission: by gear box


auto stacker




  • Automatic out table.
  • Length: 3m
  • With air cylinder to carry the products from the machine. Then left them down.
  • There is transmission table to move the products out.







Hydraulic System






  • Hydraulic power: 5.5kw
  • Working pressure: 20Mpa adjustable
  • Solenoid valve: 1 group
  • Hydraulic oil: 46# hydraulic oil

Computer Control Cabinet



  • Programmable setting of profile length and quantity
  • Operating system language: English and Chinese
  • Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved
  • Length inaccuracy can be amended easily.
  • PLC brand: Panasonic
  • Touch screen: MCGS


4. Warranty

  • Warranty: 1 year warranty from date of shipment
  • Guarantee:

1: Guaranteed against malfunctions due to manufacturing defects for 1 year after date of shipment. Repairs will be made free of charge.

2: Repairs will not be performed free of change even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

3:Air ticket, transportation cost, hotel, meals and 100$ per day shall be for purchaser’s account if manufacturer’s engineer has to be send to purchaser’s factory to maintain the machine during the guarantee period.


5. FAQ

1) Q: Are you manufacturer or trading company?

A: We are manufacturer and trading company .


2) Q: Do you provide installing and training overseas?

A: Overseas machine install and worker training services are optional.


3) Q: How is your after sales support?

A: We provide technical support on line as well as overseas services by skillful technicians.


4) Q: How does your factory do regarding quality control?

A: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.


5) How can I trust you that machines pasted testing running before shipping?

A: 1) We record the testing video for your reference. Or,

2) We welcome you visit us and test machine by yourself in our factory.


6) Q: Do you have this roof panel roll forming machine in stock?

A: No, machine is made to order.
