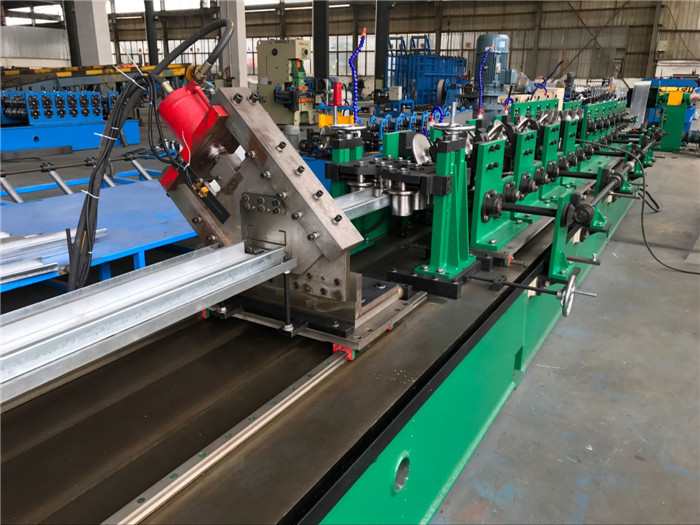

1.8mm Thickness C Channel Roll Forming Machine Drive System By Chain

Basic Information
Place of Origin: China
Brand Name: Saibo
Certification: CE/ISO
Model Number: C channel High Speed Roll Forming Machine
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Suitable for ocean shipment
Delivery Time: 70 working days after received deposit
Payment Terms: T/T, L/C
Supply Ability: 300 sets per year
Detail Information
Product Name: C Channel High Speed Roll Forming Machine Main Power: 11kw
Steel Thickness: 1.8mm(max) Decoiler: 3T Hydraulic Decoiler
Station: 14 Stations Roller Material: Gcr15, HRC58-60
Drive: By Chain Adjust: Adjust By Hand Wheel
High Light:

Metal Stud Roll Forming Machine


Stud Roll Forming Machine

Product Description

1.8mm Thickness C Channel Roll Forming Machine 11kw Main Motor High Speed


1. Specification of the material

1 Suitable Material Galvanized steel
2 Width of the raw material Base on profile
3 Thickness 0.7-2.0mm


2. Machine Detailed Parameters

1 Roll Forming High Speed Roll Forming Machine


2 Machine structure


Wire-electrode cutting structure
3 Total power

Motor power-11kw

Hydraulic power-7.5kw

4 Roller stations


About 14 stations + one station for rectify (according the final design)





About 0-40m/min

Drive system


By chain

Diameter of shaft


¢70mm solid shaft

Servo motor






Color Of The Machine


Yellow and blue


Deliver Time


70 days

Terms Of Payment


30%T/T 70% pay before shipment


3. The Chart of Process Flow

1.8mm Thickness C Channel Roll Forming Machine Drive System By Chain 0



4. Specification of Components


(1) 3T hydraulic decoiler

  • Steel coil width: 300 mm;
  • Internal diameter of coil: variable, from380 mm to 520 mm
  • Maximal out diameter:1200mm
  • Maximum coil weight: 5000 Kg;
  • Main motor power: 3KW


(2) Main Roll Forming Machine

  • Roller material:ASTM52100 chrome plated surface with chrome, HRC58-62 degree
  • Shaft diameter: ¢70mm material: SAE1045 with tempering
  • Change size by hand wheel
  • To avoid accidents, the driven parts will be covered with the protective cover
  • Cooling system is consider


(3) Machine Structure

  • Main frame by 350H beam welding
  • Machine structure: Wire-electrode cutting
  • By chain: 1.0inch double line


(4) Track cutting system

  • Adopt the hydraulic cutting
  • Cutting after forming: Cut the sheet after roll forming to required length
  • Material of blade:Cr12, 58-62 HRC hardness , 25 cutters
  • Cutting power by hydraulic, 7.5KW Siemens
  • Servo power: 3KW Yaskawa
  • Length measuring: Automatic encoder length measuring
  • Tolerance of length: +/- 1.5mm for each piece end product


(5) Hydraulic System

  • Hydraulic power: 7.5kw
  • Working pressure: maximal 25Mpa
  • Solenoid valve: 1 group
  • Hydraulic oil: 46# hydraulic oil


(6) Computer Control Cabinet

  • Programmable setting of profile length and quantity
  • Operating system language: English and Chinese
  • Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved
  • PLC: Panasonic or customerization


Usage: Put the raw material(steel plate) through the beach to manufacture and process,it can guarantee that the products are neat, parallel and everything is uniformity.Please refer to the equipment regulation to know the function of locate angle iron.


Usage: In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, chain

transmission,roller was chromed which can keep the molding plate surface smooth and not easy to be marked whenit is working


Feature : Ensure stability , precision and lifetime.

Advanced hydraulic drive, automatic punching and cutting after forming, no distorting or wasting, high level safety factor.
