Manual Decoiler Floor Metal Deck Roll Forming Machine 85mm Shaft 30 Stations

Basic Information
Place of Origin: China
Brand Name: Saibo
Certification: CE/ISO
Model Number: Floor Deck
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Suitable for ocean shipment
Delivery Time: 70 working days after received deposit
Payment Terms: T/T, L/C
Supply Ability: 300 sets per year
Detail Information
Product Name: Floor Deck Roll Forming Machine Main Power: 11KW X2
Steel Thickness: 0.7-1.3mm Decoiler: Manual
Station: 30 Stations Coil Width: 1220mm
Productivity: 15m/min Shaft Dia: 85mm
High Light:

Metal Deck Roll Forming Machine


Floor Decking Forming Machine

Product Description

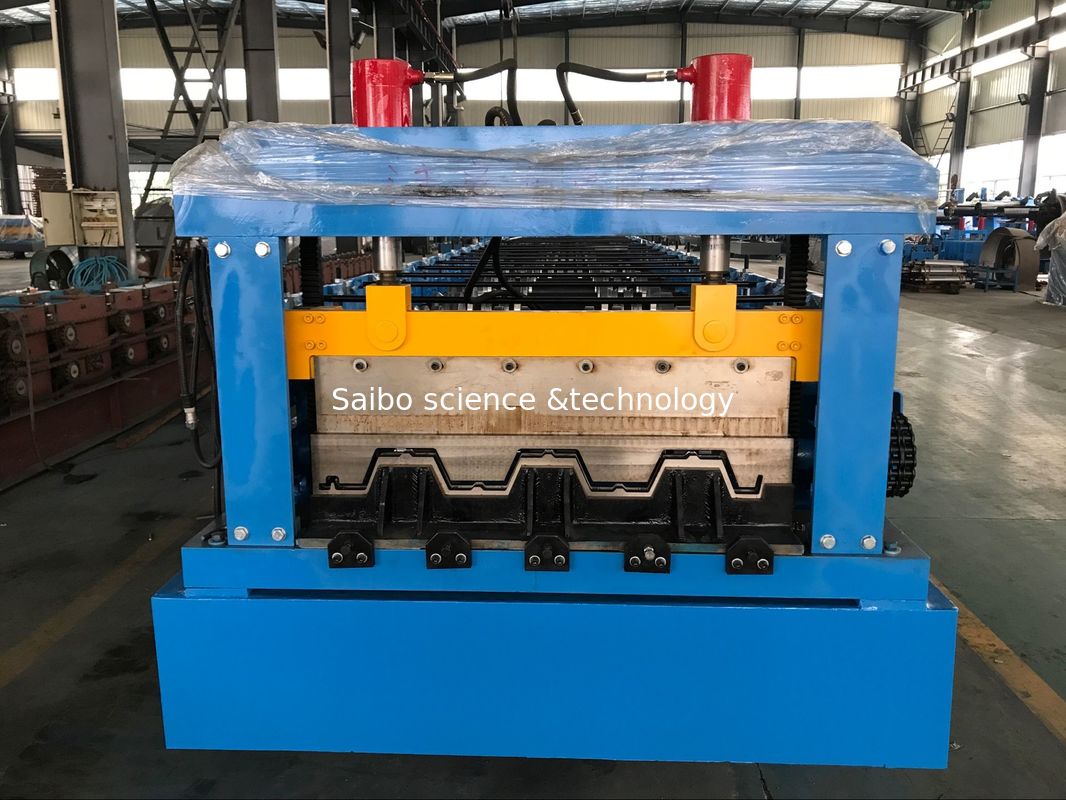

0.7-1.3mm Thickness Floor Deck Roll Forming Machine 85mm Shaft 30 Stations


1. Specification of the material

1. Sutiable Material: Galvanized steel, 550Mpa

2. Width of the raw material: 1220mm

3. Thickness: 0.7mm-1.3mm


2. Machine Detailed Parameters



Roll Forming Machine Floor deck roll forming machine



Machine structure Wall board structure



Total power

Motor power-11kw x2

Hydraulic power-5.5kw



Roller stations About 30 stations







Drive system By chain,, 1.2inch, double line



Diameter of shaft ¢85mm solid shaft



Voltage Customized



Color Of The Machine Yellow and blue


3. The Chart of Process Flow

Manual Decoiler Floor Metal Deck Roll Forming Machine 85mm Shaft 30 Stations 0


Decoiler—Feeding— Roll forming— cutting— Out table


4. Specification of Components


(1) 5T Manual Un-coiler

  • Width of feeding: 1250mm
  • Capability: 5 Ton
  • Inter diameter: 500-590mm
  • Maximal out diameter: 1500mm
  • Mode of expand &fight: inner expand &fight by manual
  • Way of feeding: manual
  • Color: blue
  • Quantity: 1


(2) Main Roll Forming Machine

  • Roller material: ASTM1045 chrome plated surface with hardness
  • Shaft diameter: ¢85mm material: SAE1045
  • Chain: 1.0 inch double chain
  • All the driven parts will covered with protective cover

(3) Machine structure

  • Main frame by 350H beam welding
  • Machine structure: wall board panel


(4) Hydraulic cutting system

  • Cutting after forming: Cut the sheet after roll forming to required length
  • Uses two hydraulic cylinders for operation.
  • Material of blade:Cr12, 58-62 HRC hardness
  • Cutting power by hydraulic,5.5KW
  • Working pressure: 16Mpa adjustable
  • Length measuring: Automatic encoder length measuring
  • Tolerance of length: +/- 1.5mm for each piece end product


(5) Computer Control Cabinet

  • Programmable setting of profile length and quantity
  • Operating system language: English and Chinese
  • Voltage, Frequency, Phase:415V, 50 Hz, 3Phase
  • Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved
  • Length inaccuracy can be amended easily.
  • Control panel: Button-type switch and touch screen
  • Unit of length: millimeter
  • PLC brand: Panasonic
  • Transducer: Yaskawa
  • Touch screen: MCGS

(6) Hydraulic System

  • Hydraulic power: 5.5kw
  • Working pressure: 16Mpa adjustable
  • Solenoid valve: 1 group
  • Hydraulic oil: 46# hydraulic oil
  • Quantity :1

5. Installation and training:

a.If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.

b.Without visiting, we will send you user manual and video to teach you to install and operate.

C.If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.


6. After Service

a.One year guarantee for whole machine.

b.24 hours technical support by email or calling

c.If there is any problem found of the machine, we will repair it for free in one year.
