| Place of Origin: | China |
|---|---|
| Brand Name: | Saibo |
| Certification: | CE/ISO |
| Model Number: | CZ |
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Packaging Details: | Suitable for ocean shipment |
| Delivery Time: | 60 working days after received deposit |
| Supply Ability: | 300 sets per year |
| Product Name: | CZ Purlin Roll Forming Machine | Power: | 20.5kw |
|---|---|---|---|
| Size: | CZ | Steel Thickness: | 1.5-3.0mm |
| Decoiler: | Manual | Station: | 16 Stations |
| Roller Material: | Gcr15 | Drive: | Chain |
| Container Need: | 1X40GP | Material: | Galvanized Steel |
| Highlight: | Manual CZ Purlin Roll Forming Machine,20.5kw CZ Purlin Roll Forming Machine,PLC Control System c purlin roll former |
||
CZ Purlin Roll Forming Machine with PLC Control System No need to Change Cutters
1.Main specification
| No | Specification of the material | |
|
1
|
Suitable Material | Carbon steel and Galvanized steel |
|
2
|
Width of the raw material | Based on the purlin sizes. |
| 3 | Thickness | 1.5mm-3.0mm |
2.Specification of Components
| No | Technical Specification & Remark | |
| 1 |
Manual Un-coiler
|
|
| 2 |
Leveling part
|
|
| 4 |
Main Roll Forming Machine
|
|
| 5 |
Machine structure:
|
|
| 6 |
Hydraulic cutting system
|
|
| 7 |
Hydraulic System
|
|
| 8 |
Computer Control Cabinet
|
|
| 9 |
Out table
|
|
3.Profile drawing:
4.The Chart of Process Flow
Manual Un-coiler—Leveling —Roll Forming—Cutting—out table

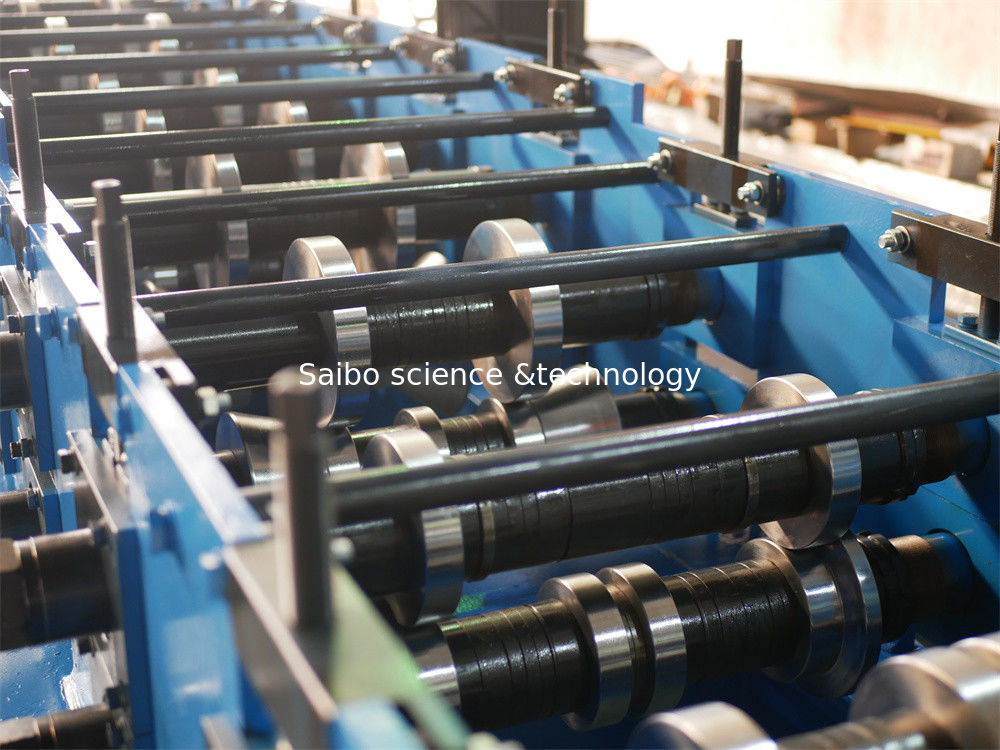

5. Machine pictures for reference
6. Warranty
1: Guaranteed against malfunctions due to manufacturing defects for 1 year after date of shipment. Repairs will be made free of charge.
2: Repairs will not be performed free of change even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
3:Air ticket, transportation cost, hotel, meals and 80$ per day shall be for purchaser’s account if manufacturer’s engineer has to be send to purchaser’s factory to maintain the machine during the guarantee period.
