High Speed Tile Roll Forming Machine 10T Hydraulic Decoiler With Gear Box Drive

Basic Information
Place of Origin: China
Brand Name: Saibo
Certification: CE/ISO
Model Number: YX28-200-1000
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Suitable for ocean shipment
Delivery Time: 70 working days after received deposit
Payment Terms: T/T, L/C
Supply Ability: 300 sets per year
Detail Information
Product Name: Tile Roll Forming Machine Power: 11KW Servo Motor+11kw
Decoiler: 10T Hydraulic Station: About 16 Stations
Steel Thickness: 0.36-0.6mm Roller Material: ASTM1045 Chrome Plated Surface With Chrome
Drive: By Gear Box Productivity: 5m/min( Including Cutting And Pressing)
High Light:

10T Hydraulic Tile Roll Forming Machine


5m/min Tile Roll Forming Machine


Tile Roll Forming Machine chrome plated

Product Description

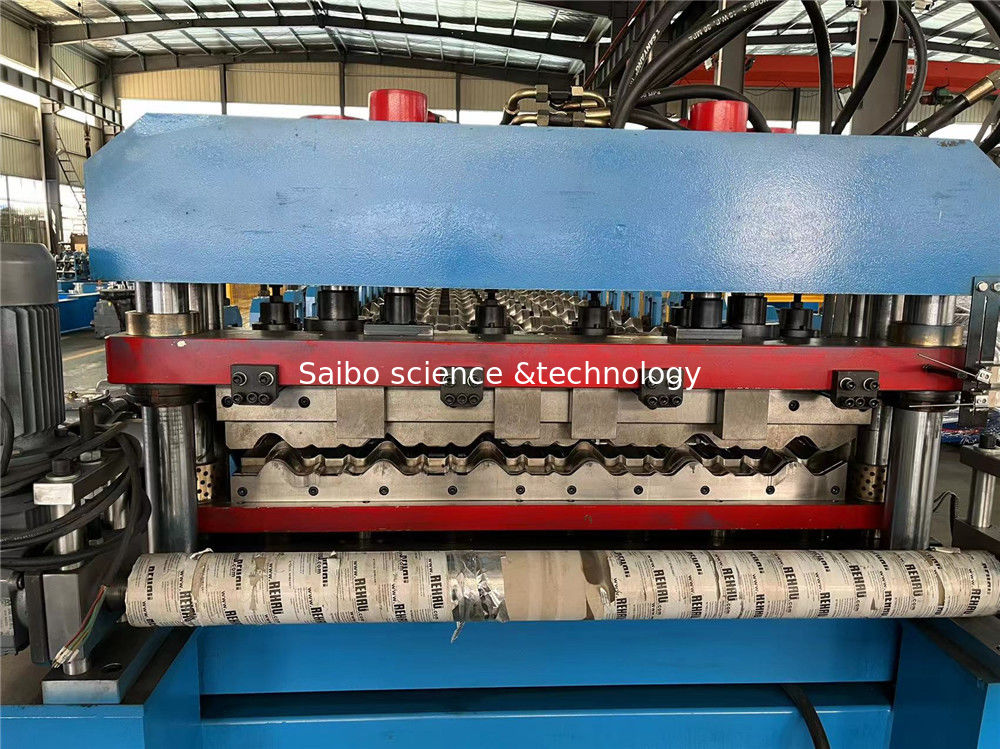

Tile Roll Forming Machine


Tile roofing roll forming machine or roof tile making machine is a machine can make tile roofing sheets by forming metal sheet. Step by step, the roller inside machine will shape metal sheet and pressing system make it become a tile roofing sheet.

The machine is fullu automatic and it is easy to operate with friendly HMI panel. It consists of one decoiler, sheet guiding equipment, roll forming section, PLC control system, hydraulic cutting and collection table.


1. Specification of the material

1 Suitable Material

Zincalume coated painted coils

Nominal YS= 300 Mpa; Typical YS shall be on the higher side upto 360 Mpa
2 Width of the raw material 1220mm
3 Thickness 0.36-0.6mm


2. Machine Detailed Parameters

1 Roll Forming Machine YX28-200-1000


2 Machine structure


Wire electrode cutting structure


3 Total power

Motor power-11kw servo motor

Hydraulic power-11kw with cooling system

Roller stations


About 16 stations



5m/min(including cutting and pressing time)

Drive system


By gear box

Diameter of shaft


¢76mm solid shaft
8 Voltage


380v 50Hz 3phase(customized)

Color Of The Machine


Yellow and blue

Container need


40GP container

Deliver Time


70 days

Terms Of Payment


30%T/T 70% pay before shipment


3. Profile drawing

High Speed Tile Roll Forming Machine 10T Hydraulic Decoiler With Gear Box Drive 0



4. The Chart of Process Flow

High Speed Tile Roll Forming Machine 10T Hydraulic Decoiler With Gear Box Drive 1

5. Specification of Components


(1) 10T Hydraulic Un-coiler

  • Width of feeding: 1250mm
  • Capability: 10 Ton
  • Inter diameter: 470-520mm
  • Maximal out diameter: 1500mm
  • Main motor power: 7.5KW AC motor
  • Hydraulic power: 5.5kw
  • Hydraulic valve is by Yuken
  • Hydraulic motor: Siemens
  • Hydraulic pump:Yuken


(2) Main Roll Forming Machine

  • Roller material:ASTM1045 chrome plated surface with chrome
  • Shaft diameter: ¢76mm material: SAE1045 with quenching and tempering
  • Main frame by 350H beam welding
  • Machine structure: wire electrode cutting
  • Machine adopts whole protect mesh
  • Bearings should be SKF / FAG.


(3)Pressing System:

  • Pressing after forming: Press the sheet after roll forming to required length
  • Hydraulic drive uses the same hydraulic unit with cutting
  • Material of mold:Cr12, 58-62 HRC hardness
  • Pressing by hydraulic, 11KW


(4) Hydraulic cutting system

  • Cutting after forming: Cut the sheet after roll forming to required length
  • Uses two hydraulic cylinders for operation.
  • Material of blade:Cr12, 58-62 HRC hardness
  • Cutting power by hydraulic,11KW
  • Working pressure: 12Mpa adjustable
  • Length measuring: Automatic encoder length measuring
  • Tolerance of length: +/- 1.5mm for each piece end product


(5) Computer Control Cabinet

  • Programmable setting of profile length and quantity
  • Operating system language: English and Chinese
  • Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved
  • PLC: Panasonic or customerization

6​. Training and Installation
1 We offer installation service local in paid, reasonable charge.
2 QT test is welcome and professional.
3. manual and using guide is optional if no visiting and no installation.
Certification and after service
1. Match the technology standard, ISO producing certification
2. CE certification
3. 12 months warranty since the delivery. Board.
Our advantage:
1. Short delivery period.
2. Effective communication
3. Interface customized.
