Detail Information

Product Name:	CZ Purlin Roll Forming Machine	Power:	22.5kw
Size:	CZ	Steel Thickness:	1.0-3.0mm
Decoiler:	Manual Or Hydraulic	Station:	16 Stations
Roller Material:	Gcr15	Drive:	Chain
Container Need:	1X40GP	Material:	Galvanized Steel
Highlight:	Automatically CZ Purlin Roll Forming Machine , 3.0mm CZ Purlin Roll Forming Machine , 22.5 kw CZ Purlin Forming Machine

Product Description

CZ Purlin Roll Forming Machine

C/Z Purlin as one of important section in PEB, in same machine can make C channel, C lip channel, Z purlin and Sigma section. and the web & flange all automatic adjustable by servo motor to get high accuracy. And we give gear box for drive; Change C to Z in automatic also, n a real sense to achieve full automation production

1.Main specification

No	Specification of the material
1	Suitable Material	Carbon steel and Galvanized steel
2	Width of the raw material	Based on the purlin sizes.
3	Thickness	1.5mm-3.0mm

2.Specification of Components

No		Technical Specification & Remark
1	Manual Un-coiler	Width of feeding: 500mm Capability: 3 Ton Mode of expand &fight: inner expand &fight by manual Way of feeding: manual Color: blue
2	Leveling part	Flattener roller: upper is 3 rollers, down is 4 stations(total is 7 rollers) Flattener roller material: SAE 1045 thermal treatment hardness 48-52 HRC. Diameter of flattener shaft:￠70mm, material is SAE 1045, hardening and tempering
4	Main Roll Forming Machine	Roll station:16 stations+ one station of rectify Main power: 15kw Roller material:Gcr15, 58-62,HRC hardness and chrome plated surface Shaft diameter: ￠70mm material: SAE1045
5	Machine structure:	Main frame by 350H beam welding Machine structure: wire electrode cutting system Drive by gear box
6	Hydraulic cutting system	Machine adopt hydraulic post cutting system. Cutting power by hydraulic, 7.5KW Cutting after forming: Cut the sheet after roll forming to required length Cutting motion: The main machine will stop when cutting, after the motion the machine will continue automatically. Material of blade:Cr12 with heat treatment 58-60° Tolerance of length: 3000mm+/- 1.5mm
7	Hydraulic System	Hydraulic power: 7.5kw Solenoid valve: 1 group Hydraulic oil: 46# hydraulic oil
8	Computer Control Cabinet	Programmable setting of profile length and quantity Operating system language: English and Chinese Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved Length inaccuracy can be amended easily. PLC brand: Panasonic
9	Out table	Jointed by steel tube Size: about 2.0m long0.8mwide0.6-1mhigh One out table with three support roller Quantity: 2 units

3.Profile drawing:

10 - 3.0mm CZ Purlin Roll Forming Machine Flange And Web Change By Automatically 0

4.The Chart of Process Flow

Un-coiler—Leveling —Pre-cutting—Punching—Roll Forming—Post Cutting—out table

5. Machine pictures for reference

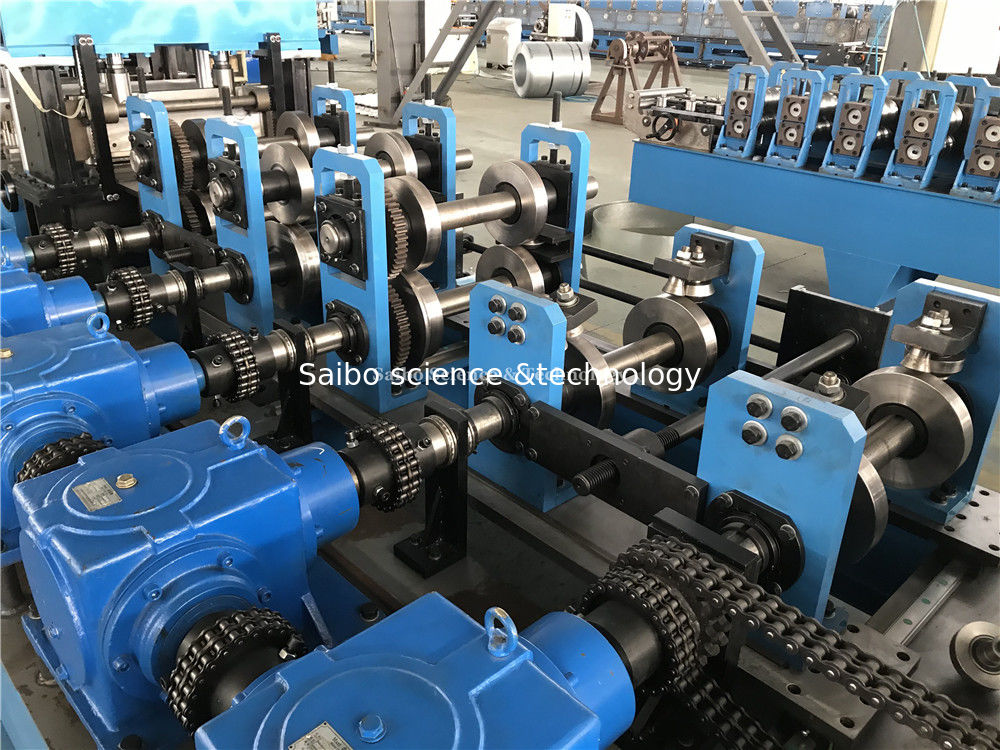

10 - 3.0mm CZ Purlin Roll Forming Machine Flange And Web Change By Automatically 1

10 - 3.0mm CZ Purlin Roll Forming Machine Flange And Web Change By Automatically 2

6. Warranty

Warranty: 1 year warranty from date of shipment
Guarantee:

1: Guaranteed against malfunctions due to manufacturing defects for 1 year after date of shipment. Repairs will be made free of charge.

2: Repairs will not be performed free of change even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

3:Air ticket, transportation cost, hotel, meals and 80$ per day shall be for purchaser’s account if manufacturer’s engineer has to be send to purchaser’s factory to maintain the machine during the guarantee period.
