5T Hydraulic Decoiler Z Purlin Roll Forming Machine 24kw With PLC Control System

Basic Information
Place of Origin: China
Brand Name: Saibo
Certification: CE/ISO
Model Number: Z
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Suitable for ocean shipment
Delivery Time: 60 working days after received deposit
Supply Ability: 300 sets per year
Detail Information
Product Name: Z Purlin Roll Forming Machine Power: 24kw
Size: Z Steel Thickness: 1.5-3.0mm
Decoiler: Hydraulic Decoiler Station: 17 Stations+one Station Of Rectify
Roller Material: Gcr15 Drive: Chain
Container Need: 1X40GP Material: Carbon Steel Or GI
High Light:

5T Z Purlin Roll Forming Machine


Purlin Hydraulic Decoiler Roll Forming Machine


24 kw ZPurlin Roll Forming Machine

Product Description

Z Purlin Roll Forming Machine with PLC Control System


1.Main specification

No Specification of the material



Suitable Material Carbon steel and Galvanized steel



Width of the raw material Based on the purlin sizes.
3 Thickness 1.5mm-3.0mm


2.Specification of Components

No   Technical Specification & Remark

5T Hydraulic Un-coiler



  • Steel coil width: 550 mm;
  • Internal diameter of coil: variable, from 470 mm to 520 mm
  • Maximal out diameter:1200mm
  • Maximum coil weight: 5000 Kg;
  • Feeding motor: 5.5kw
  • Expansion by hydraulic
  • Hydraulic power: 4kw
  • Quantity: 1


Punching system


  • Base on customer provide punching drawing, this machine need adopt two units hydraulic punching system before roll forming.
  • The punches and dollies will be CR-12, hardness HRC 58-62 and chrome coating.
  • Hydraulic power: 5.5kw

Main Roll Forming Machine



  • Roll station:17 stations+ one station of rectify
  • Roller material:Gcr15, 58-62,HRC hardness and chrome plated surface
  • Shaft diameter: ¢70mm material: SAE1045
  • Main power: 15kw

Machine structure:



  • Main frame by 350H beam welding
  • Machine structure: wire electrode cutting system
  • Drive by chain

Hydraulic cutting system



  • Machine adopt hydraulic post cutting system.
  • Cutting power by hydraulic, 5.5KW
  • Cutting after forming: Cut the sheet after roll forming to required length
  • Cutting motion: The main machine will stop when cutting, after the motion the machine will continue automatically.
  • Material of blade:Cr12 with heat treatment 58-60°
  • Tolerance of length: 3000mm+/- 1.5mm

Hydraulic System






  • Hydraulic power: 5.5kw
  • Solenoid valve: 1 group
  • Hydraulic oil: 46# hydraulic oil




Computer Control Cabinet





  • Programmable setting of profile length and quantity
  • Operating system language: English and Chinese
  • Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved
  • Length inaccuracy can be amended easily.
  • PLC brand: Panasonic

Out table



  • Jointed by steel tube
  • Size: about 2.0m long*0.8mwide*0.6-1mhigh
  • One out table with three support roller
  • Quantity: 2 units


3.Profile drawing:

5T Hydraulic Decoiler Z Purlin Roll Forming Machine 24kw With PLC Control System 0


4.The Chart of Process Flow

5T Hydraulic Decoiler Z Purlin Roll Forming Machine 24kw With PLC Control System 1

Un-coiler—Leveling —PunchingRoll Forming—Cutting—out table

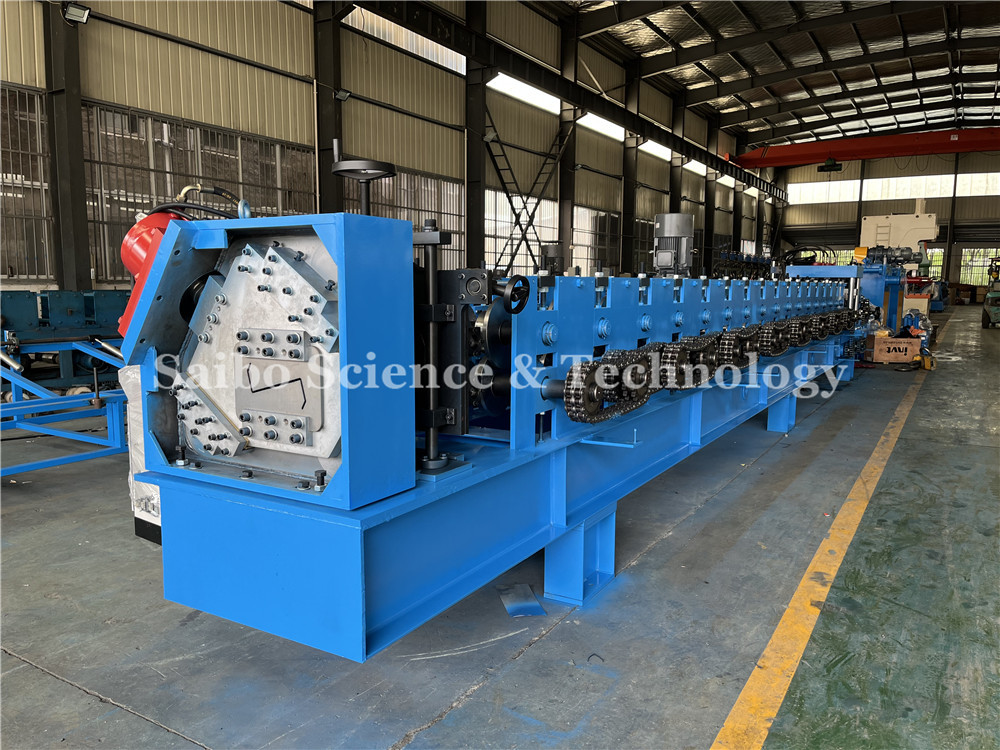

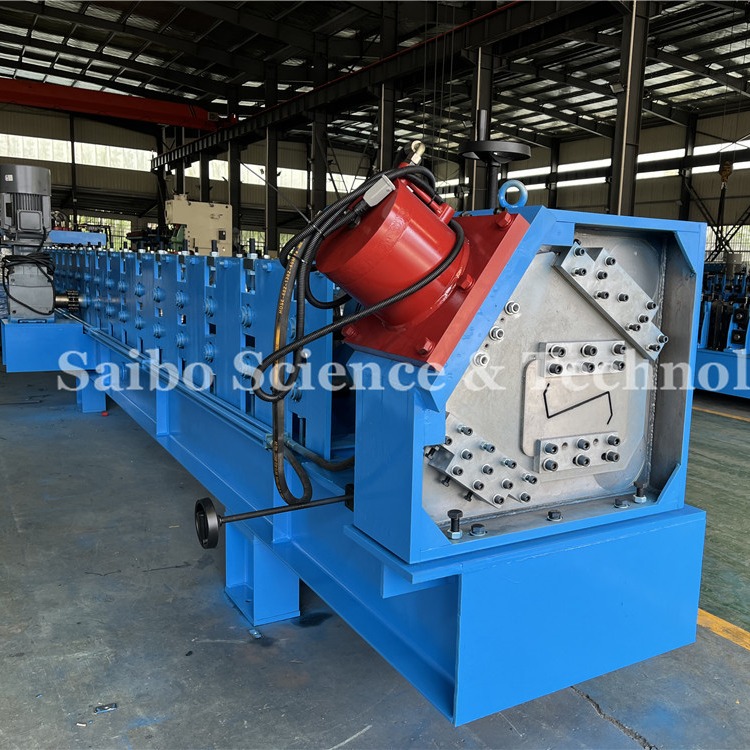

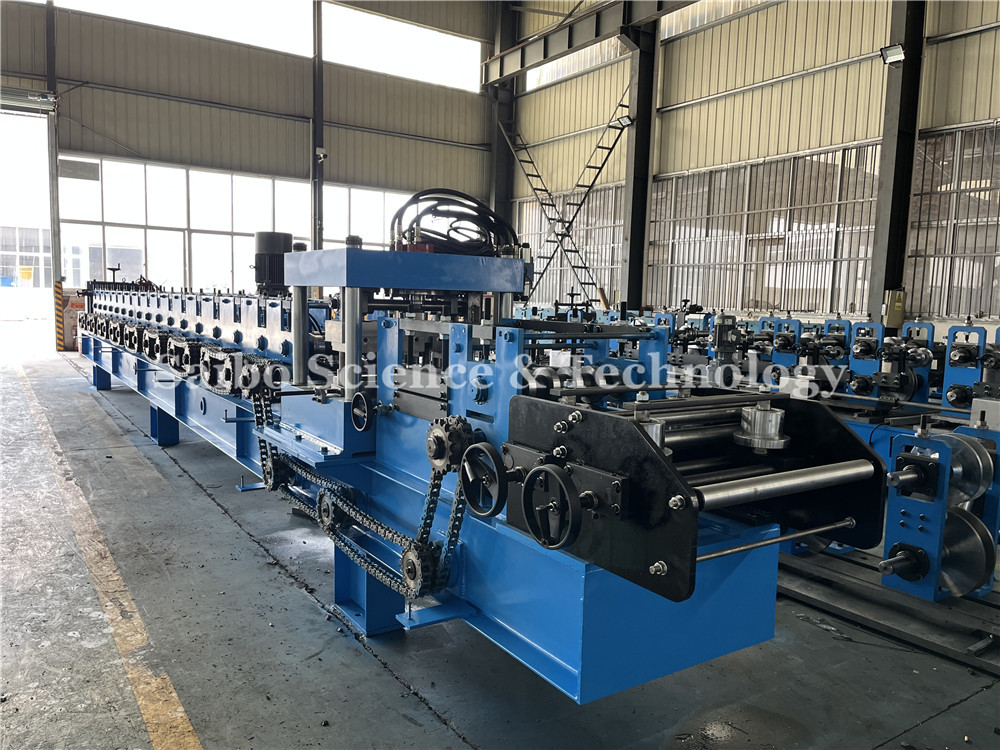

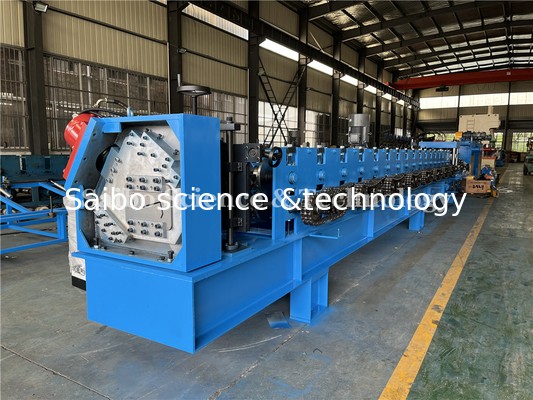

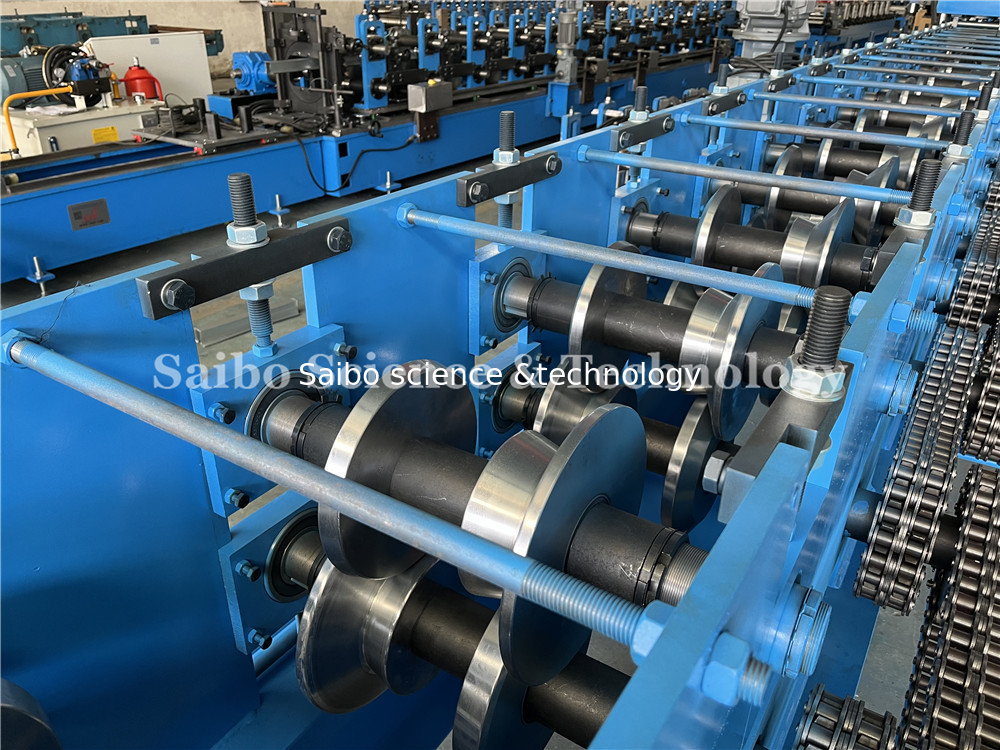

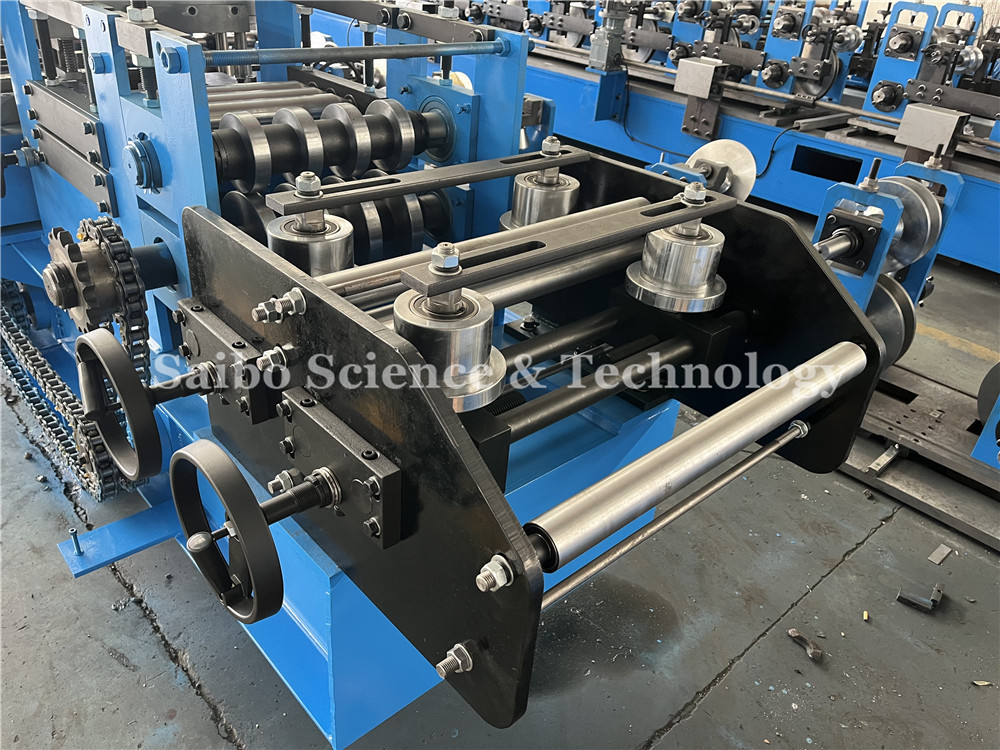

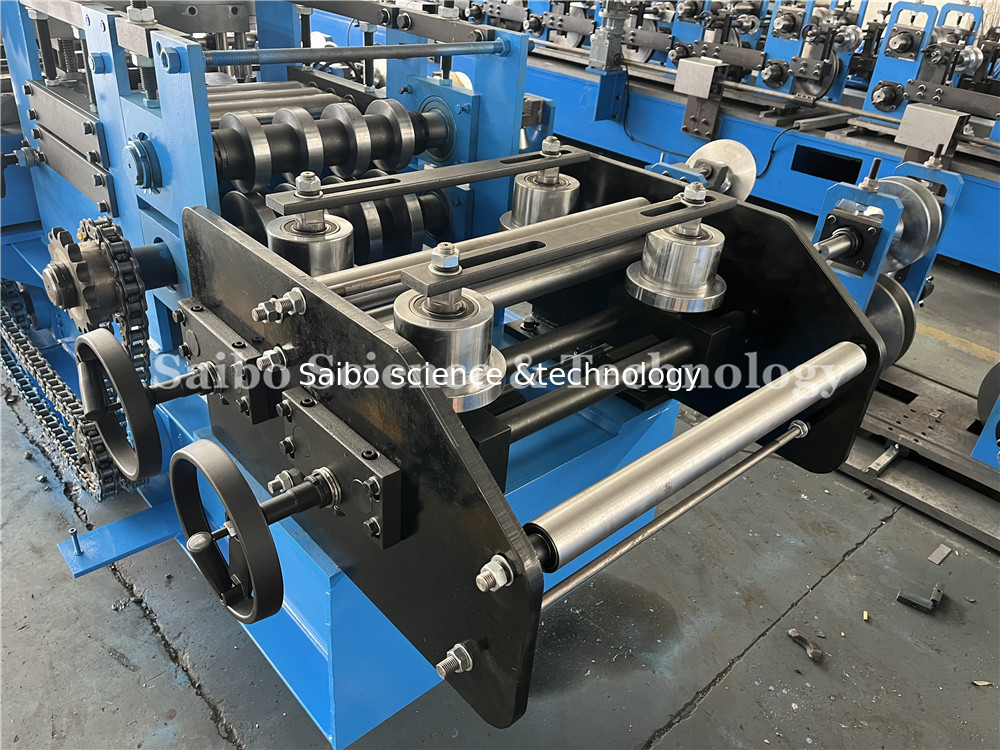

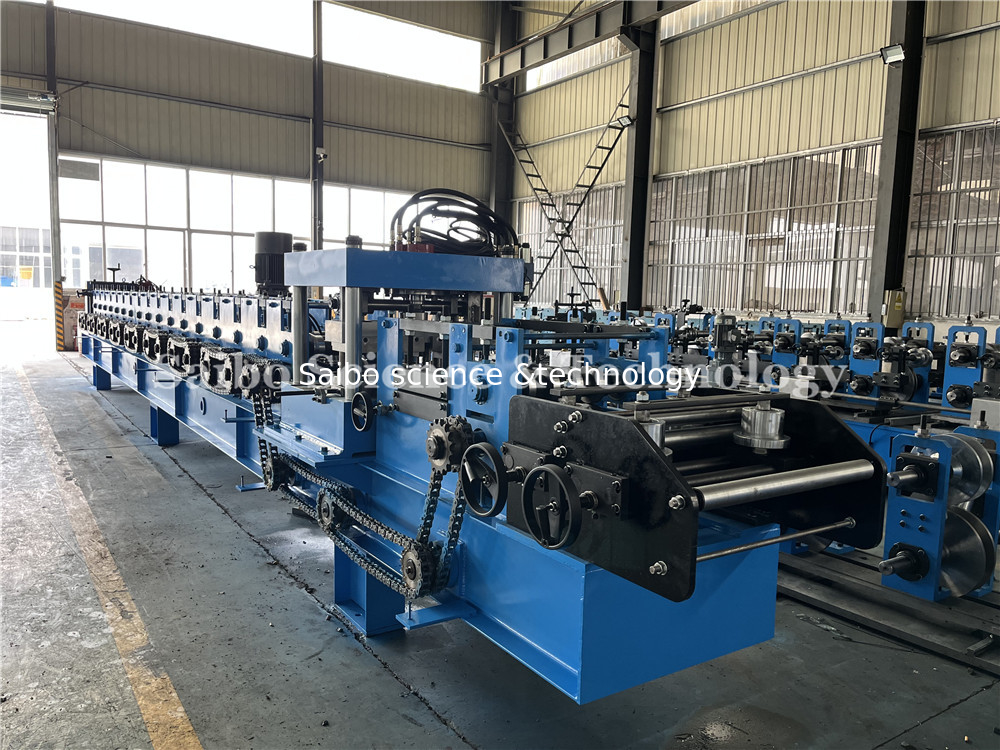

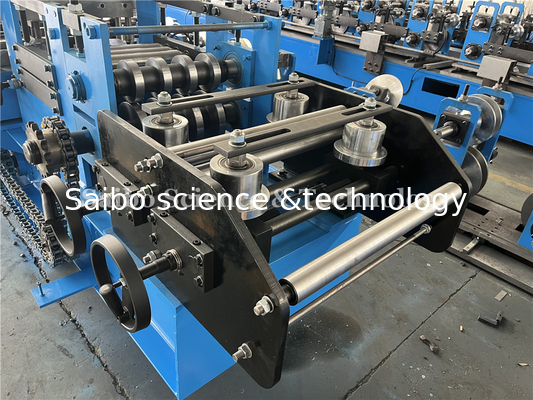

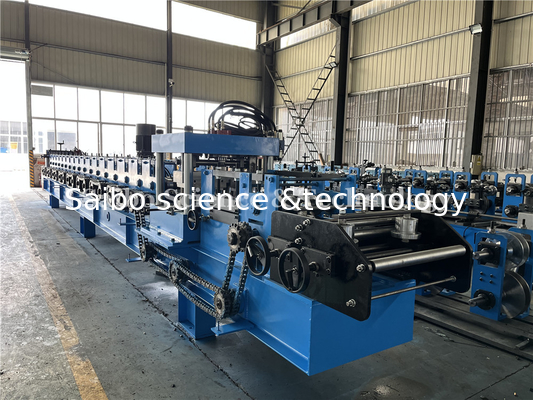

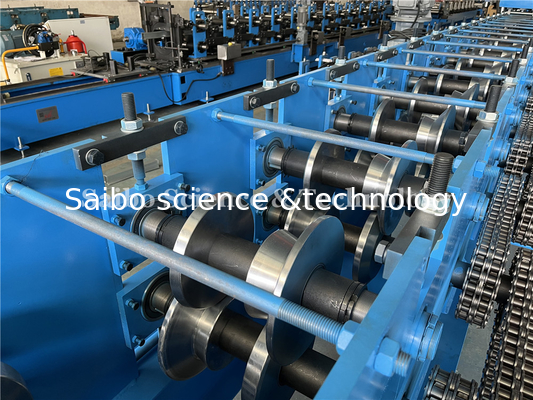

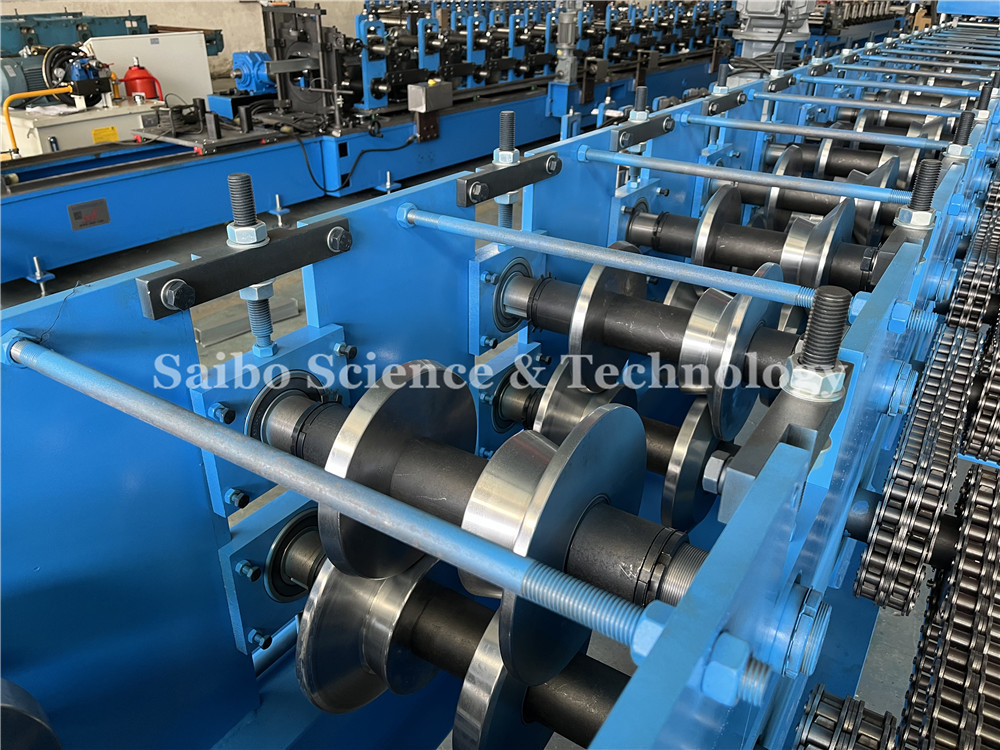

5. Machine pictures for reference

5T Hydraulic Decoiler Z Purlin Roll Forming Machine 24kw With PLC Control System 2

5T Hydraulic Decoiler Z Purlin Roll Forming Machine 24kw With PLC Control System 3

6. Warranty

  • Warranty: 1 year warranty from date of shipment
  • Guarantee:

1: Guaranteed against malfunctions due to manufacturing defects for 1 year after date of shipment. Repairs will be made free of charge.

2: Repairs will not be performed free of change even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

3:Air ticket, transportation cost, hotel, meals and 80$ per day shall be for purchaser’s account if manufacturer’s engineer has to be send to purchaser’s factory to maintain the machine during the guarantee period.
