Name: Automatically Driving Scaffolding Plank Roll Forming Machine With 160T Punching
Brand: Zhangjiagang City Saibo Science & Technology Co.,Ltd
SKU: Pedal plate
Price: 40,001.00 USD
Availability: InStock

Detail Information

Product Name:	Pedal Plate Roll Forming Machine	Power:	About 55kw
Steel Thickness:	1.0-1.5mm	Decoiler:	10T Hydraulic
Station:	About 20 Stations	Roller Material:	Gcr15 Chrome Plated Surface With Hardness 58-62 Degree
Drive:	Gear Box	Material:	Cold Rolled Steel
Punching Machine:	JH21-160T
Highlight:	Scaffolding Plank roll forming machine , Automatically Driving Scaffolding roll forming machine , 160 T Scaffolding roll forming machine

Product Description

Pedal plate roll forming machine

1.Main specification

No	Specification of the material
1	Suitable Material	Cold rolled steel, Q235,Q345
2	Width of the raw material	Based on the purlin sizes.
3	Thickness	1.5mm

2.Specification of Components

No		Technical Specification & Remark
1	Hydraulic Un-coiler	Width of feeding:600mm Capability: 5 Ton Inter diameter: 460-560mm Maximal out diameter: 1500mm Coil placement in the coil holder: hydraulic hoist Working speed: 0--20m/min adjustable Main motor power: 5.5KW AC motor Hydraulic power: 4kw Speed controlled by frequency converter Color: blue Quantity: 1
2	Leveling part	Leveling roller: upper is 3 rollers, down is 4 stations(total is 7 stations) Power: 5.5kw
3	Servo feeding& punching machine	Servo machine: Machine adopt servo feeding and punching machine to make high speed and accuracy Brand of servo: YASKAWA Servo power: 2.9kw Punching machine: Punching machine carrying capacity 160T Punching machine model: JH-21-160 Punching machine adopt continue punching Speed: 25 time /MIN Brand of punching machine: Yang Li Technology details of punching mould: Punching mould material: Cr12 with heat treatment
4	Hydraulic punching	Punching distance is by PLC control Punching die:D2 with HRC 58-62 °
5	Main Machine	Roll station: 25 stations Material of roller: Gcr15 steel, quenching, HRC55-58° Material of main shaft: 45﹟forge steel diameter roller: Ф76mm Main power: 15KW Change size by adjust roller spacer and change cutting die To avoid accidents, the driven parts will be covered with the protective cover Voltage, Frequency, Phase: 380 V, 50 Hz, 3Phase
6	Hydraulic cuttings system	Machine adopts hydraulic post cutting system, 45 ° twisting cutting. Cutting power by hydraulic, 7.5kw Cutting after forming: Cut the sheet after roll forming to required length Cutting motion: The main machine will stop when cutting, after the motion the machine will continue automatically. Material of blade: Cr12 with heat treatment 58-60°.2 sets cutter Length measuring: Automatic length measuring Tolerance of length: 3000mm+/- 1.5mm
8	Computer Control Cabinet	Programmable setting of profile length and quantity Operating system language: English and Chinese Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved Length inaccuracy can be amended easily. PLC brand: Panasonic
9	Out table	Jointed by steel tube Size: about 2.0m long0.8mwide0.6-1mhigh One out table with three support roller Quantity: 2 units

3.Profile drawing:

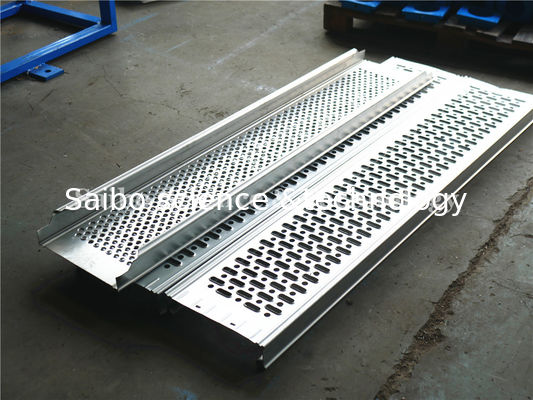

Automatically Driving Scaffolding Plank Roll Forming Machine With 160T Punching 0

4.The Chart of Process Flow

5T hydraulic de-coiler—flatten—servo feeding& punching machine—hydraulic punching—roll forming—hydraulic cutting—out table

5. Machine pictures for reference

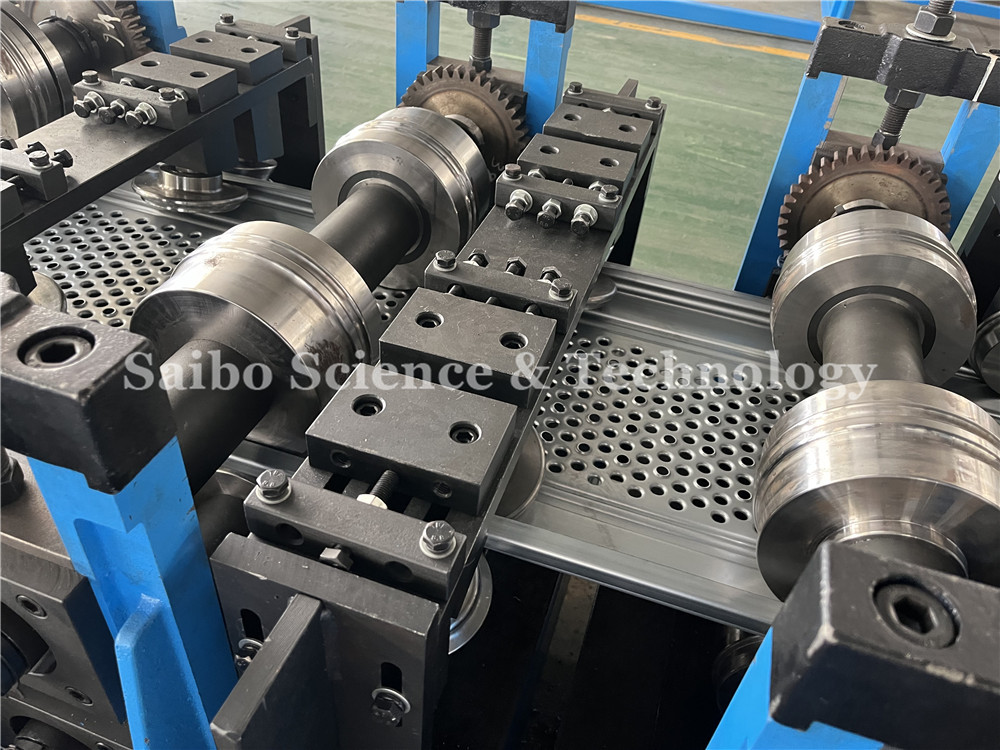

Automatically Driving Scaffolding Plank Roll Forming Machine With 160T Punching 1

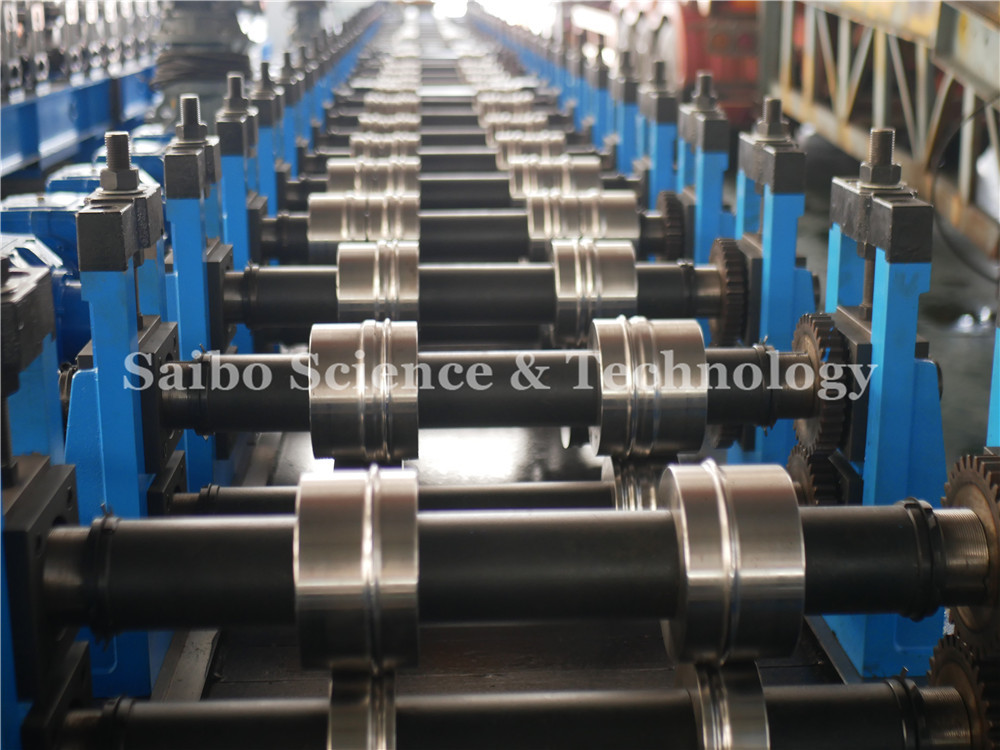

Automatically Driving Scaffolding Plank Roll Forming Machine With 160T Punching 2

Automatically Driving Scaffolding Plank Roll Forming Machine With 160T Punching 3

Automatically Driving Scaffolding Plank Roll Forming Machine With 160T Punching 4

6. Warranty

Warranty: 1 year warranty from date of shipment
Guarantee:

1: Guaranteed against malfunctions due to manufacturing defects for 1 year after date of shipment. Repairs will be made free of charge.

2: Repairs will not be performed free of change even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

3:Air ticket, transportation cost, hotel, meals and 100$ per day shall be for purchaser’s account if manufacturer’s engineer has to be send to purchaser’s factory to maintain the machine during the guarantee period.

Tag:

Place of Origin:	China
Brand Name:	Saibo
Certification:	CE/ISO
Model Number:	Pedal plate

Minimum Order Quantity:	1 set
Price:	negotiation
Packaging Details:	Suitable for ocean shipment
Delivery Time:	60 working days after received deposit
Supply Ability:	300 sets per year
