Product Name: | High Frequency Weld Pipe Machine Line | Main Motor Power: | 22kw |
---|---|---|---|
Size Of Pipe: | 7.6-16mm | High Frequency Power: | 60kw |
Thickness: | 0.3-1.0mm | Line Speed: | 0-100m/min |
Drive: | Gear Box | Weld: | High Frequency |
Highlight: | Automatic Pipe Welding Machine,High Frequency Welding Machine |
1-Tube machine
2-Easy to operation
3- PLC control system
4-High speed
5: High Frequency Welded pipe making machine
Description Capacity:
1, Pipe ID: 7.6mm-16mm
2, Thickness:0.3mm-1.0mm
3, Speed:0-100m/min
Double-head uncoiler
Briefing: Rotary type to change coils easily with a pneumatic brake
Parameters:
(1)The max. weight of coil:2000kg
(2)The inside diameter of coil:450-520mm
(3)The max. outside diameter of coil :1600mm
(4)The max .width of coil: 51mm

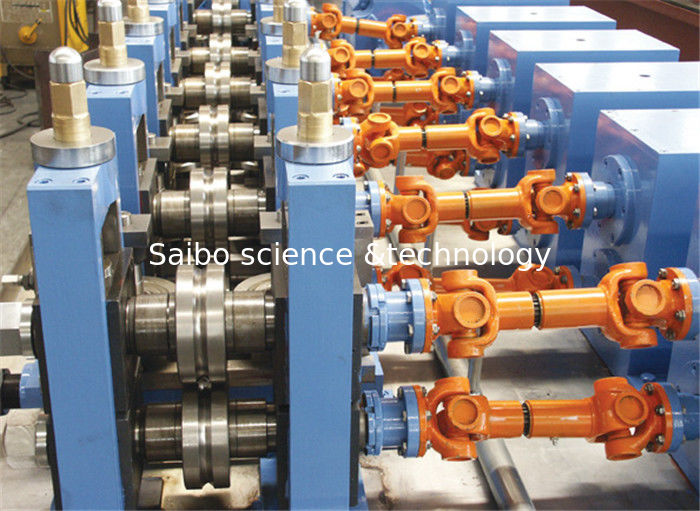

Mechanical segments
1. Steel strip revolving bracket
2. Double-roller feeder
3. Horizontal accumulator of helix metal strip
Power configuration
1. Motor of horizontal accumulator of helix steel strip 5.5kw(AC motor)
2. motor of double-roller feeder 5.5kw(AC motor)
3. main motor power: 22kw
4. high frequency power: 60kw
Computer-controlled flying saw
A. Power of automatic controller: 7.5kw
B. Automatic tracking machine
1. The max .diameter to be cut :Φ16mm
2. The range of cutting length :4m-7m
3. The max. wall thickness to be cut :1.0mm
D. Power of the saw: 5.5kw
E. Accuracy of the cutting length :within±0.3mm
Discharging table
Conveyed on the rolling way ,reversed pneumatically(with 2.2kw 6classes motor)
