Hydraulic Wall / Roof Panel Roll Forming Machine 0.3-0.8mm Thickness 15 Stations

Hydraulic Decoiler Wall Panel Roll Forming Machine YX12.5-82-748 By Chain

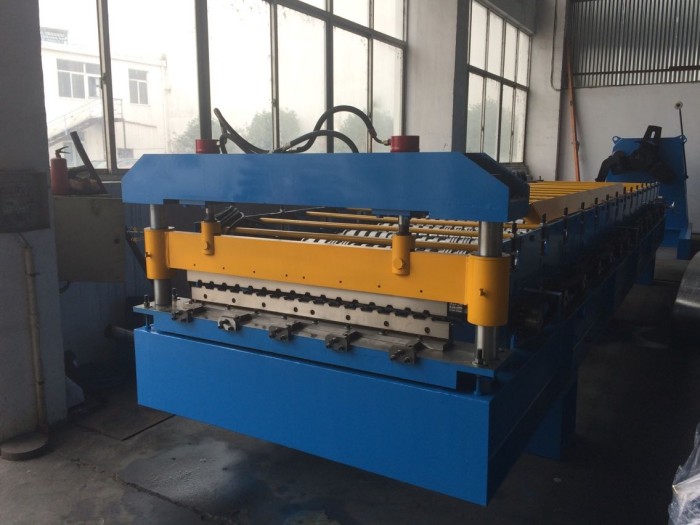

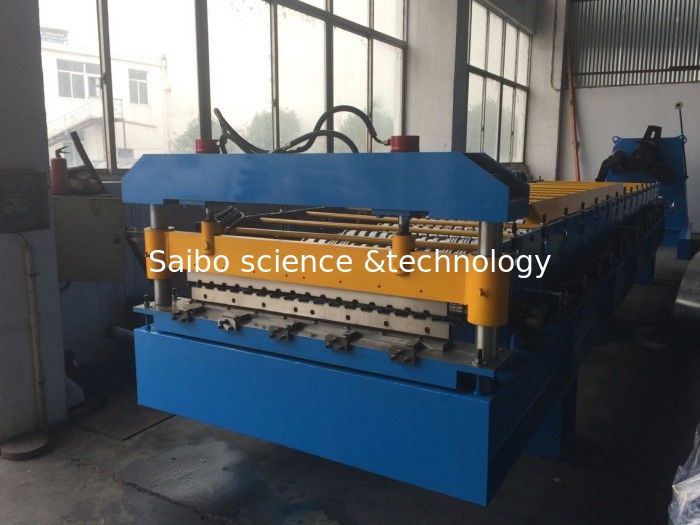

YX12.5-82-748 Wall Panel Roll Forming Machine

1. Specification of the material

2. Machine Detailed Parameters

3. Profile drawing

4. The Chart of Process Flow

Hydraulic Uncoiler—Roll Forming—Cutting—Out table

5. Specification of Components

(1) 5T Hydraulic Un-coiler

• Width of feeding: 1250mm
• Capability: 5 Ton
• Inter diameter: 470-520mm
• Maximal out diameter: 1500mm
• Working speed: 0--20m/min adjustable
• Main motor power: 5.5KW AC motor
• Hydraulic power: 4kw

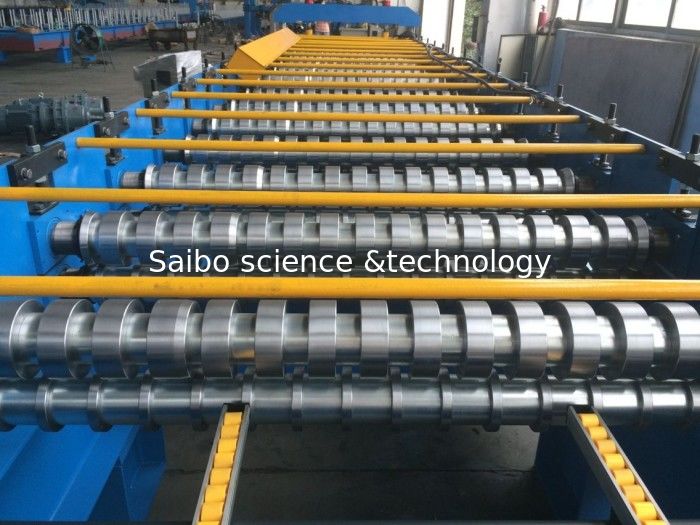

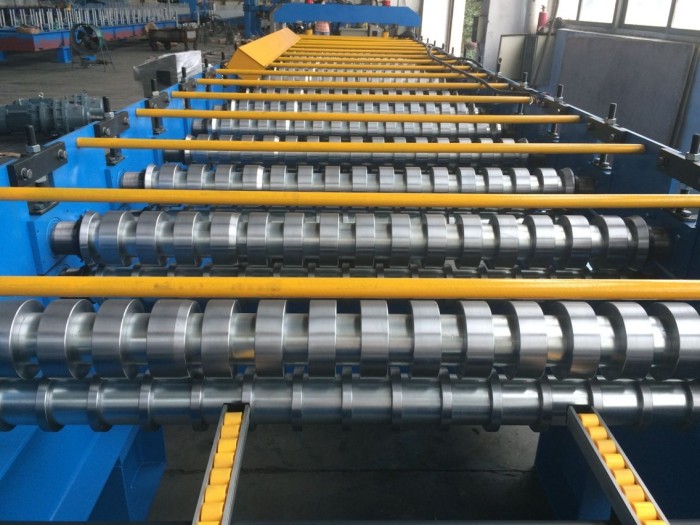

(2) Main Roll Forming Machine

• Roller material:ASTM1045 chrome plated surface with chrome
• Shaft diameter: ￠70mm material: SAE1045 with quenching and tempering
• Main frame by 350H beam welding
• Machine structure: wall board

(3) Hydraulic cutting system

• Cutting after forming: Cut the sheet after roll forming to required length
• Material of blade:Cr12, 58-62 HRC hardness
• Cutting power by hydraulic,4KW
• Working pressure: 12Mpa adjustable
• Length measuring: Automatic encoder length measuring
• Tolerance of length: +/- 1.5mm for each piece end product

(4) Computer Control Cabinet

• Programmable setting of profile length and quantity
• Operating system language: English and Chinese
• Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved

• PLC: Panasonic or customerization
