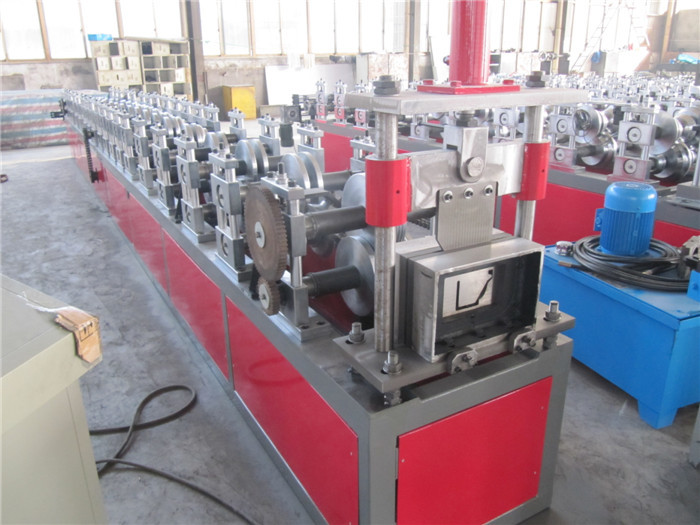

Customized Gutter Roll Forming Machine Guide Pillar G550 Material

Basic Information
Place of Origin: China
Brand Name: Saibo
Certification: CE/IS09001/SGS
Model Number: YX100-141
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Suitable for ocean shipment
Delivery Time: 50 working days after received deposit
Payment Terms: L/C, T/T, Western Union
Supply Ability: 380 sets per year
Detail Information
Product Name: Gutter Roll Forming Machine Shaft: ¢56mm
Steel Thickness: 0.4-0.7mm Decoiler: Manual
Power: 5.5KW+3KW Roller Material: 45# Forge Steel
Station: 16 Stations Drive: 1.2inch Single Chain
Highlight:

Gutter Forming Machine

,

Purlin Roll Forming Machine


Product Description

YX100-141 Gutter Roll Forming Machine



Profile:

All of our machine profile is customized, below profile is only for your reference.

1. Coil width: 281mm

2. Effective width: 141mm

3. Thickness: 0.4-0.7mm

Customized Gutter Roll Forming Machine Guide Pillar G550 Material 0

Layout:

Customized Gutter Roll Forming Machine Guide Pillar G550 Material 1

Manual de-coiler—Feeding—Roll Forming—Cutting—Out table



Specifications:

Item NO



Description



Offered specification

1 Roll Forming Machine

Gutter



2 Coil width 281mm
3 Rolling Speed 12-15m/min(not include cutting time)
4 Rolling Thickness 0.4-0.7mm G550
5 Control System PLC (Panasonic) as list in the note
6 Un Coiler 3T manual decoiler
7 Pre-cutting By manual
8 Roller Stations About 16 stations
9 Roller Material 45# forge steel, coated with chrome
10 Shaft Material and DIA ¢56mm, material is 45# forge steel
11 Post cutting Hydraulic cutting after forming
12 Maim Motor Power 5.5kw
13 Hydraulic Station Power 3kw
14 Hydraulic Pressure 10-12Mpa adjustable
15 Material Of Cutting Cr12Mov quenching 58-62℃
16 Structure Of The Stations Guide pillar
17 Tolerance 3m+-1.5mm
18 Electric Source

380V, 50HZ,3 phase

According to customer’s require



19 Way Of Drive By chain
20 Color Of The Machine Yellow and blue
21 Size of the machine L*W*H about 7.0m*1.1m*1.2m
22 Container Need 1x40 feet


Main Features

1. Simple structure in linear type ,easy in installation and maintenance.

2. Adopting advanced world famous brand components in pneumatic parts, electric parts and operation parts.

3. Running in a high automatization and intellectualization, no pollution

4. No need foundation, easy operation
