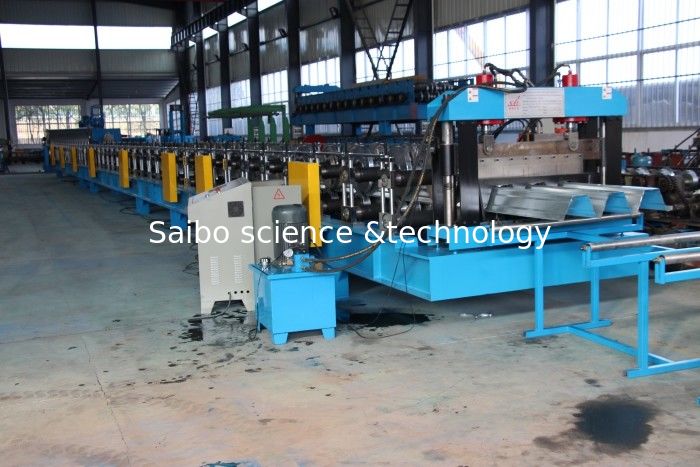

15KW X 3 Door Frame Making Machine , Stud And Track Roll Forming Machine 1.2 Inch Double Line

Basic Information
Place of Origin: China
Brand Name: Saibo
Certification: CE/ISO
Model Number: YX153-280-840
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Suitable for ocean shipment
Delivery Time: 70 working days after received deposit
Payment Terms: T/T, L/C
Supply Ability: 300 sets per year
Detail Information
Product Name: Floor Deck Roll Forming Machine Power: 15KW X3+7.5kw
Size Of Purlin: YX153-280-840 Steel Thickness: 0.8-1.5mm
Decoiler: Hydraulic Or Manual Station: About 42 Stations
Roller Material: ASTM1045 Chrome Plated Surface With Hardness, CNC Drive: By Chain, 1.2 Inch Double Line
High Light:

Metal Deck Roll Forming Machine

,

Floor Decking Forming Machine


Product Description

1. Specification of the material

1 Suitable Material Colored Steel plate, Galvanized steel
2 Width of the raw material 1500mm
3 Thickness 0.8mm-1.5mm



2. Machine Detailed Parameters

1



Roll Forming Machine YX153-280-840

2



Machine structure Guide pillar structure

3



Total power

Motor power-15kw x3

Hydraulic power-7.5kw

4



Roller stations About 42 stations

5



Productivity

0-15m/min

6



Drive system By chain, 1.2 inch double line

7



Diameter of shaft ¢85mm solid shaft

8



Voltage 380V 50Hz 3phases (Customized)

9



Color Of The Machine Yellow and blue

10



Container need 40HQ container

11



Deliver Time 70 days

12



Terms Of Payment 30%T/T 70% pay before shipment



3. Profile drawing

15KW X 3 Door Frame Making Machine , Stud And Track Roll Forming Machine 1.2 Inch Double Line 0



4. The Chart of Process Flow

15KW X 3 Door Frame Making Machine , Stud And Track Roll Forming Machine 1.2 Inch Double Line 1





5. Specification of Components

(1) 10T Hydraulic Un-coiler

  • Width of feeding: 1250mm
  • Capability: 10 Ton
  • Inter diameter: 470-520mm
  • Maximal out diameter: 1500mm
  • Main motor power: 7.5KW AC motor
  • Hydraulic power: 5.5kw



(2) Coil car

  • Coil weight (Max): 10 Ton
  • Working lift journey: Maximal 250mm
  • Working function: forward and reverse movable
  • Move journey: maximal 3 meters



(3) Main Roll Forming Machine

  • Roller material: ASTM1045 chrome plated surface with hardness, CNC
  • Shaft diameter: ¢85mm material: SAE1045 with quenching and tempering



(4) Machine structure

  • Main frame by 350H beam welding
  • Machine structure: guide pillar



(5) Hydraulic cutting system

  • Cutting after forming: Cut the sheet after roll forming to required length
  • Uses two hydraulic cylinders for operation.
  • Material of blade:Cr12, 58-62 HRC hardness
  • Cutting power by hydraulic,7.5KW
  • Working pressure: 12Mpa adjustable
  • Length measuring: Automatic encoder length measuring
  • Tolerance of length: +/- 1.5mm for each piece end product



(6) Computer Control Cabinet

  • Programmable setting of profile length and quantity
  • Operating system language: English and Chinese
  • Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved
  • PLC: Panasonic or customerization
