|Place of Origin:||China|
|Model Number:||2&3 Waves|
|Minimum Order Quantity:||1 set|
|Packaging Details:||Suitable for ocean shipment|
|Delivery Time:||65 working days after received deposit|
|Payment Terms:||L/C, T/T, Western Union|
|Supply Ability:||280 sets per year|
|Product Name:||Guard Rail Roll Forming Machine||Steel Thickness:||2.0-4.0mm|
|Decoiler:||10 Hydraulic Decoiler With Coil Car||Power:||55KW+22KW|
|Roller Material:||Gcr15 With Chrome||Station:||20 Stations|
|Drive:||Gear Box||Container Need:||1X40GP+1X20GP|
Highway Guardrail Roll Forming Machine,
Highway Guardrail Forming Machine
Two and Three Waves Guard Rail Roll Forming Machine

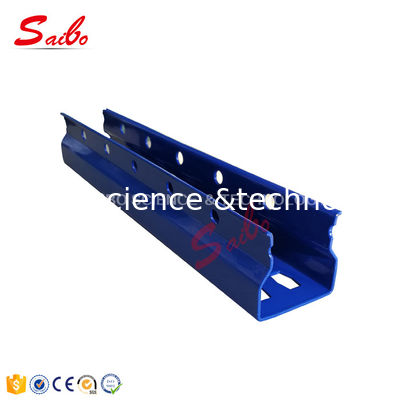

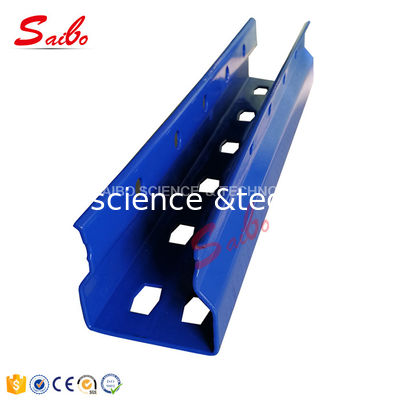

All of our machine profile is customized, above profile is only for your reference.
1. Coil width: 470mm/730mm
2. Thickness: 2.0-4.0mm
Hydraulic decoiler—Leveling—Punching—Roll Forming—Cutting—Out table
|1||Roll Forming Machine||
|3||Rolling Speed||15m/min(not including punching and cutting)|
|5||Control System||PLC (Panasonic) as list in the note|
|6||Un Coiler||10 ton hydraulic de-coiler with coil car|
|7||Leveling Station||1 station (three rollers over four), 7.5kw|
|10||Roller Stations||20 stations (according the final design)|
coated with chrome
|12||Shaft Material and DIA||￠120mm, material is 45# forge steel|
|13||Maim Motor Power||55kw|
|14||Hydraulic Station Power||22kw|
|16||Cutting mode||Hydraulic stop cutting|
|17||Material Of Cutting||Cr12Mov quenching 58-62℃|
|18||Structure Of The Stations||Guide pillar|
380V, 50HZ,3 phase
According to customer’s require
|21||Way Of Drive||By gearbox|
|22||Color Of The Machine||Yellow and blue|
|23||Container Need||1 x40 feet & 1 x20 feet|
|24||How to change the profile||Change the last three roller stations which is in one cassette|
1. The structure is simple and the appearance of the machine is beautiful because we adopt the shape-steel structure and process as a whole after welding. It has the ability of strong loading and stable operation when running the machine.
2. All the components of machine are from brand-famous enterprise so that they ensure the machine normal function very effectively.
3. We adopt the automatic length-fixed forming and cutting to guarantee the length to be precise and the finished product clear without deforming.
4. It is very easy to install the equipment and suitable for producing in the factory.
5. The machine has features of low noise and high efficiency.
