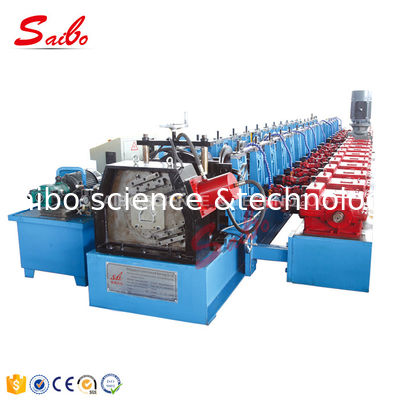

Upright Sheet Metal Forming Machine , Gutter Roll Forming Machine Gear Box

Basic Information
Place of Origin: China
Brand Name: Saibo
Certification: CE/ISO
Model Number: YX100-100
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Suitable for ocean shipment
Delivery Time: 80 working days after received deposit
Supply Ability: 300 sets per year
Contact Now
Detail Information
Product Name: Upright Roll Forming Machine Power: 18.5kw
Size: 30-30 Steel Thickness: 2.0-3.0mm
Decoiler: Electrical Station: 18 Stations
Roller Material: Gcr15 Drive: Gear Box
Container Need: 1X20GP+1X40GP
High Light:

Metal Roll Forming Machine

,

Angle Roll Forming Machine


Product Description

Main specification



No Specification of the material

1



Suitable Material Carbon steel

2



Width of the raw material Based on the purlin sizes.
3 Thickness 1.5-3.0mm



Profile drawing

Upright Sheet Metal Forming Machine , Gutter Roll Forming Machine Gear Box

Punching drawing

Upright Sheet Metal Forming Machine , Gutter Roll Forming Machine Gear Box

The Chart of Process Flow



Un-coiler—leveling—servo feeding—punching machine—feeding—Roll Forming—Cutting—out table





Specification of Components



No   Technical Specification & Remark
1

Electrical Un-coiler

Upright Sheet Metal Forming Machine , Gutter Roll Forming Machine Gear Box



  • Steel coil width: 500 mm
  • Maximum coil weight: 3000 Kg
  • Main motor power: 5.5KW
2

leveling

Upright Sheet Metal Forming Machine , Gutter Roll Forming Machine Gear Box

  • level the sheet to be flat
  • the speed can be control by the inverter inside the control box
  • the power: 5.5kw
3

Servo motor and puching machine

Upright Sheet Metal Forming Machine , Gutter Roll Forming Machine Gear Box

  • Model: Jh21-63
  • Brand: Yangli
  • servo motor power: 2.2kw
  • punching mold: big punching, Cr12 material
4

Main Roll Forming Machine





  • Roll station:18stations+ 1 station of torque head
  • Roller material:Gcr15, 58-62,HRC hardness and chrome plated surface
  • structure: cast iron
  • drive: gear box
6

Hydraulic cutting system



Upright Sheet Metal Forming Machine , Gutter Roll Forming Machine Gear Box

  • Machine adopt hydraulic cutting system.
  • Material of blade:Cr12 with heat treatment 58-60°
7

Hydraulic System











  • Hydraulic power: 7.5kw
  • hydraulic station with power tank to get more power.
  • Hydraulic oil: 46# hydraulic oil





8

Computer Control Cabinet









  • Programmable setting of profile length and quantity
  • Operating system language: English and Chinese
  • Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved
  • PLC brand: Panasonic
9

Out table





  • Size: about 2.0m long*0.8mwide*0.6-1mhigh
  • One out table with three support roller
  • Quantity: 2 units





6. Warranty

  • Warranty: 1 year warranty from date of shipment
  • Guarantee:

1: Guaranteed against malfunctions due to manufacturing defects for 1 year after date of shipment. Repairs will be made free of charge.

2: Repairs will not be performed free of change even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

3:Air ticket, transportation cost, hotel, meals and 100$ per day shall be for purchaser’s account if manufacturer’s engineer has to be send to purchaser’s factory to maintain the machine during the guarantee period.
