| Place of Origin: | China |
|---|---|
| Brand Name: | Saibo |
| Certification: | CE/IS09001/SGS |
| Model Number: | YX300-640 |
| Minimum Order Quantity: | 1 set |
| Price: | negotiable |
| Packaging Details: | Suitable for ocean shipment |
| Delivery Time: | 65 working days after received deposit |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 280 sets per year |
| Product Name: | K-Span Roll Forming Machine | Decoiler: | Hydraulic Decoiler |
|---|---|---|---|
| Steel Thickness: | 0.8-1.8mm | Maim Motor Power: | 15KW |
| Hydraulic Station Power: | 11KW | Station: | About 14 Stations |
| Container Need: | 1X40GP+1X20GP | Shaft: | ￠90mm Solid Shaft |
| High Light: | Arch Sheet Roll Forming Machine,K-Span Roll Forming Machine |
||
YX300-640 K-Span Roll Forming Machine
Profile:
Layout:
Un-coiler—Flatten —Servo feeding&Punching—Roll Forming—Cutting—out table
Specifications:
| Item NO |
Description |
Offered specification |
| 1 | Roll Forming Machine | K-span |
| 2 | Coil width | 1000mm |
| 3 | Rolling Speed | 10-15m/min(not include cutting and punching time) |
| 4 | Rolling Thickness | 0.8-1.8mm |
| 5 | Control System | PLC (Panasonic) as list in the note |
| 6 | Un Coiler | 5T hydraulic de-coiler |
| 7 | Servo feeding | 4.4KW |
| 8 | Punching | 11kw |
| 9 | Roller Stations | About 14 stations |
| 10 | Roller Material | 45# forge steel, coated with chrome |
| 11 | Shaft Material and DIA | ￠90mm, material is 45# forge steel |

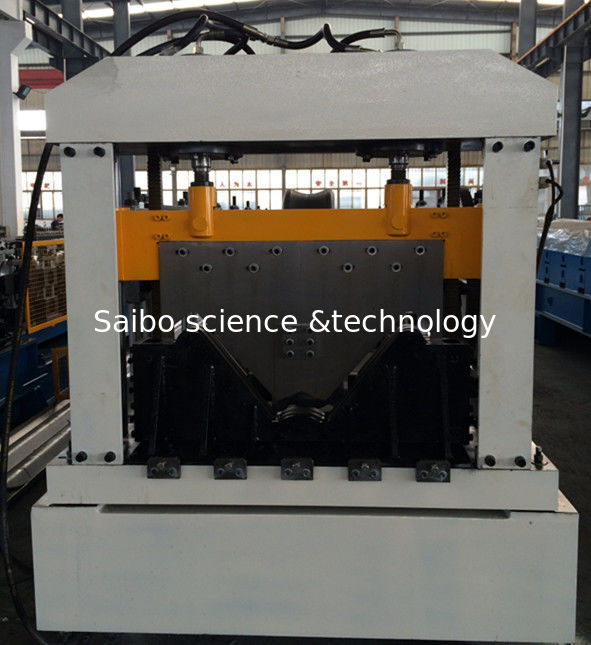

| 12 | Post cutting | Hydraulic cutting after forming |
| 13 | Maim Motor Power | 15kw |
| 14 | Hydraulic Station Power | 11kw |
| 15 | Hydraulic Pressure | 25Mpa adjustable |
| 16 | Material Of Cutting | Cr12Mov quenching 58-62℃ |
| 17 | Structure Of The Stations | Guide pillar |
| 18 | Tolerance | 3m+-1.5mm |
| 19 | Electric Source |
380V, 50HZ,3 phase According to customer’s require
|
| 20 | Way Of Drive | By 1.5inch chain |
| 21 | Color Of The Machine | Yellow and blue |
Training and Installation
1. We offer installation service local in paid, reasonable charge.
2 .QT test is welcome and professional.
3. Manual and using guide is optional if no visiting and no installation.
Certification and after service
1. Match the technology standard, ISO producing certification
2. CE certification
3. 12 months warranty since the delivery. Board.
