| Place of Origin: | China |
|---|---|
| Brand Name: | Saibo |
| Certification: | CE/ISO |
| Model Number: | Anode plate roll forming machine |
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Packaging Details: | Suitable for ocean shipment |
| Delivery Time: | 60 working days after received deposit |
| Supply Ability: | 300 sets per year |

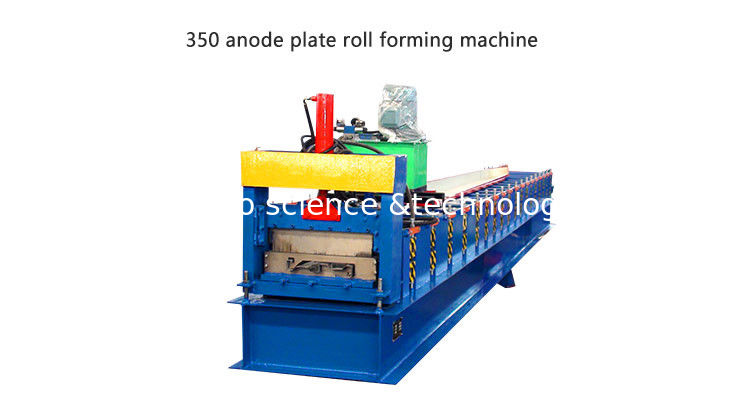

| Product Name: | Anode Plate Roll Forming Machine | Power: | About 33kw |
|---|---|---|---|
| Steel Thickness: | 1.2mm | Station: | 14 Stations |
| Roller Material: | 45# Steel | Shaft Dia: | 65mm |
| Drive: | By Chain Or By Gear Box | Color: | Yellow And Blue |
| Highlight: | Angle Roll Forming Machine,Metal Roll Forming Machine |
||

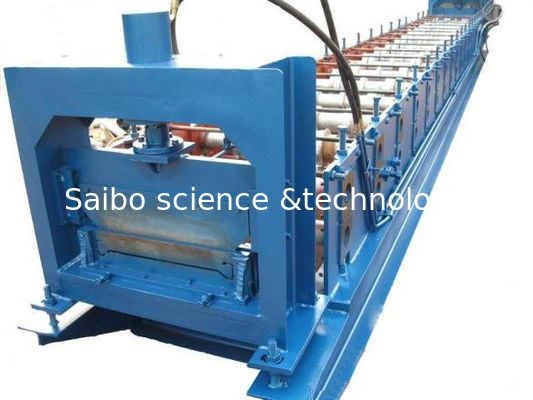

1. Equipment structure
This production line consists of forming, punching,cutting,etc.
The production line is composed of de-coiler, forming ,punching, cutting system , electric control system , etc.

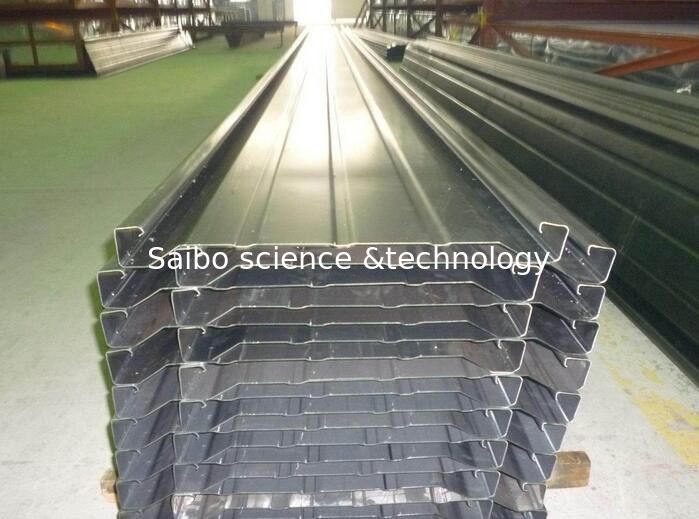

2. Profile drawing:
3. Technical parameter
|
NO.
|
Item
|
Unit
|
Parameyer
|
|
1
|
Thickness
|
mm
|
1.2mm
|
|
2
|
Speed
|
m/min
|
Forming speed:about 15m/min |
|
3
|
Material roller
|
|
GCr15 quenching treatment
|
|
4
|
Drive type
|
|
Gearbox driven
|
|
5
|
Motor power
|
kw
|
about 33
|
|
6
|
Electric control system
|
|
PLC veriable frequency control
|
|
7
|
Dimension(LxWxH)
|
m
|
30x4x3.9
|
4. The layout of the machine
5. Warranty
1: Guaranteed against malfunctions due to manufacturing defects for 1 year after date of shipment. Repairs will be made free of charge.
2: Repairs will not be performed free of change even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
3:Air ticket, transportation cost, hotel, meals and 80$ per day shall be for purchaser’s account if manufacturer’s engineer has to be send to purchaser’s factory to maintain the machine during the guarantee period.
7. Installation and training
a. If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
b. Without visiting, we will send you user manual and video to teach you to install and operate.
C. If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.
