Drive By Chain C Purlin Roll Forming Machine With Three Punching System

Basic Information
Place of Origin: China
Brand Name: Saibo
Certification: CE/ISO
Model Number: C purlin
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Suitable for ocean shipment
Delivery Time: 60 working days after received deposit
Supply Ability: 300 sets per year
Contact Now
Detail Information
Product Name: C Purlin Roll Forming Machine Main Power: 11kw
Station: 14 Stations Shaft Dia: 76mm
Drive System: By Chain Punching System: Three Units
Cutting System: Post Cutting System

Product Description

1. Main specification



No Specification of the material

1



Suitable Material Carbon steel, Aluminium steel

2



Width of the raw material According to the final profile
3 Thickness 2.0mm



2. The Chart of Process Flow



Manual Un-coiler—Punching—Roll Forming—rectify—Cutting—out table

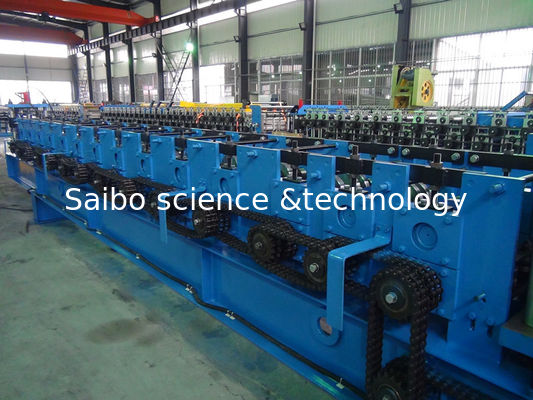

Drive By Chain C Purlin Roll Forming Machine With Three Punching System



3. Specification of Components



No   Technical Specification & Remark

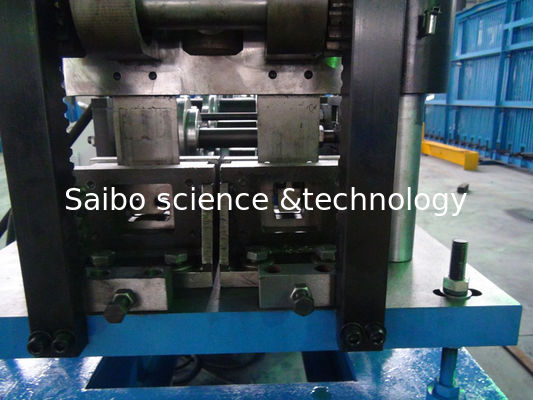

1 Hydraulic Punching System

Machine adopts pre-punching system

According to the customer request, machine adopts 3 units punching station

2

Main Roll Forming Machine





  • Roll station:14stations +1 station of rectify
  • Roller material:45#
  • Shaft diameter: ¢76mm material: SAE1045
3

Machine structure:





  • Main frame by 350H beam welding
  • Machine structure: wall board
4

Hydraulic cutting system





  • Machine adopt hydraulic post cutting system.
  • Cutting power by hydraulic, 5.5KW
  • Material of blade:Cr12 with heat treatment 58-60°





4. Warranty

  • Warranty: 1 year warranty from date of shipment
  • Guarantee:

1: Guaranteed against malfunctions due to manufacturing defects for 1 year after date of shipment. Repairs will be made free of charge.

2: Repairs will not be performed free of change even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

3:Air ticket, transportation cost, hotel, meals and 80$ per day shall be for purchaser’s account if manufacturer’s engineer has to be send to purchaser’s factory to maintain the machine during the guarantee period.





5. Installation and training

a. If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.

b. Without visiting, we will send you user manual and video to teach you to install and operate.

C. If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.
