Galvanized Steel Corrugated Roof Panel Roll Forming Machine Gear Box Hydraulic Decoiler

China Galvanized Steel Corrugated Roof Panel Roll Forming Machine Gear Box Hydraulic Decoiler supplier

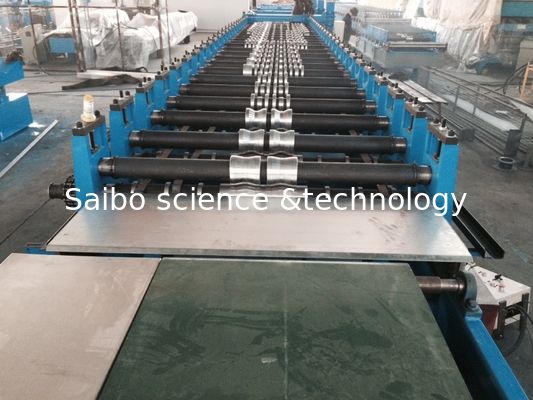

Large Image :  Galvanized Steel Corrugated Roof Panel Roll Forming Machine Gear Box Hydraulic Decoiler

Product Details:

Place of Origin: China
Brand Name: Saibo
Certification: CE/ISO
Model Number: YX25-205-820

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Suitable for ocean shipment
Delivery Time: 70 working days after received deposit
Payment Terms: T/T or L/C
Supply Ability: 300 sets per year
Detailed Product Description
Product Name: Roof Panel Roll Forming Machine Power: 18.5KW+5.5kw
Size Of Purlin: YX25-205-820 Steel Thickness: 0.3-0.8mm
Decoiler: 45# Forge Steel, Surface With Chrome Station: About 18 Stations
Productivity: 0-45m/min Drive System: By Gear Box
Diameter Of Shaft: ¢85mm Solid Shaft

YX29-200-1000 Roofing Panel Roll Forming Machine



1. Specification of the material

1 Suitable Material Colored Steel plate, Galvanized steel
2 Width of the raw material 1000mm
3 Thickness 0.3-0.8mm




2. Machine Detailed Parameters

1

Roll Forming Machine



YX25-205-820
2

Machine structure



Cast iron structure
3 Total power

Motor power-18.5kw

Hydraulic power-5kw

4

Roller stations



About 18 stations
5

Productivity



0-45m/min
6

Drive system



By gear box
7

Diameter of shaft



¢85mm solid shaft
8

Voltage



380V 50Hz 3phases (Customized)
9

Color Of The Machine



Bule and yellow
10

Deliver time



80 days
11

Terms Of Payment



30%T/T 70% pay before shipment



3. Profile drawing

Galvanized Steel Corrugated Roof Panel Roll Forming Machine Gear Box Hydraulic Decoiler



4. The Chart of Process Flow

10T Hydraulic Uncoiler—Servo feeding—Hydraulic cutting—motorized conveyor—Roll Forming—Auto stacker



Galvanized Steel Corrugated Roof Panel Roll Forming Machine Gear Box Hydraulic Decoiler



5. Specification of Components



(1) 10T Hydraulic Un-coiler

  • Width of feeding: 1250mm
  • Capability: 10 Ton
  • Inter diameter: 470-520mm
  • Maximal out diameter: 1500mm
  • Working speed: 0--45m/min adjustable
  • Main motor power: 7.5KW AC motor
  • Hydraulic power: 5.5kw



(2)10T coil car

  • Coil weight (Max): 10 Ton
  • Working by hydraulic pressure: 8-12Mpa with connect with the uncoiler hydraulic unit
  • Working lift journey: Maximal 250mm
  • Working function: forward and reverse movable
  • Move journey: maximal 3 meters



(3)Servo feeding

  • Machine adopt servo feeding to get high speed
  • Servo power: 4KW



(4) Hydraulic cutting

  • Cutting after forming: Cut the sheet before roll forming to required length
  • Material of blade:Cr12, 58-62 HRC hardness
  • Cutting power by hydraulic 5.5KW energy tank
  • Working pressure: 25Mpa adjustable
  • Length measuring: Automatic encoder length measuring
  • The cutting sequence is also contained and controlled by the same PLC program
  • Tolerance of length: +/- 1.5mm for each piece end product



(5) Motorized conveyor

  • Maximal length: 12m
  • Width: about 1000mm which base on profile request
  • Power: 4KW AC motor
  • Conveyor table with roller moving



(6) Main Roll Forming Machine

  • Roller material:ASTM1045 chrome plated surface with chrome
  • Shaft diameter: ¢85mm material: SAE1045 with quenching and tempering



(7) Machine structure

  • Main frame by 350H beam welding
  • Machine structure: cast iron



(8) Hydraulic System

  • Hydraulic power: 5.5kw with storage tank and air cooling system
  • Working pressure: 25Mpa adjustable
  • Solenoid valve: 1 group
  • Hydraulic oil: 46# hydraulic oil



(9) Computer Control Cabinet

  • Programmable setting of profile length and quantity
  • Operating system language: English and Chinese
  • Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved
  • Length inaccuracy can be amended easily.
  • PLC brand: Panasonic
