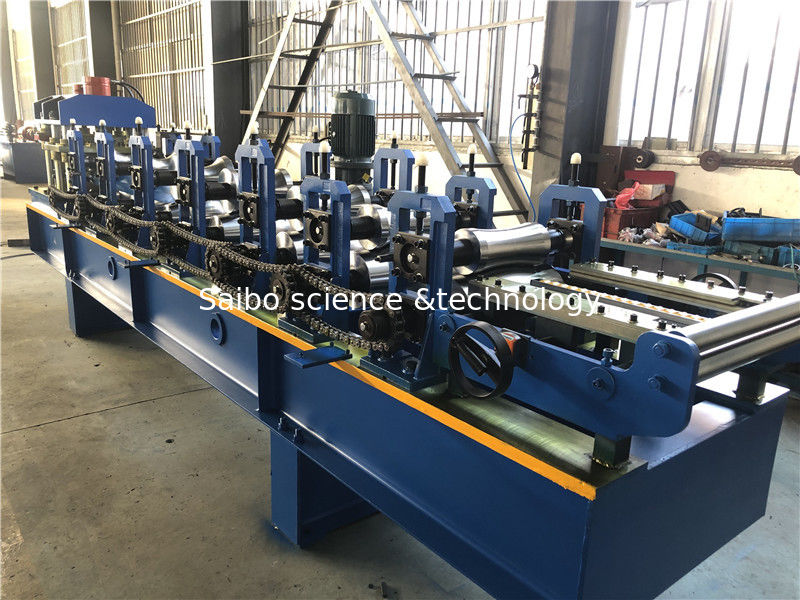

0.4 - 0.6mm thickness Pre Engineering Building Forming Machine Press Step Type

Basic Information
Place of Origin: China
Brand Name: Saibo
Certification: CE/ISO
Model Number: YX70-270
Minimum Order Quantity: 1 set
Packaging Details: Suitable for ocean shipment
Delivery Time: 60 working days after received deposit
Supply Ability: negotiation
Contact Now
Detail Information
Power: 5.5kw+5.5kw Product Name: Ridge Cap Roll Forming Machine
Steel Thickness: 0.4-0.6mm Size: 70-270
Station: 7 Stations +4 Station Of Side Rollers Decoiler: Manual
Roller Material: 45# Steel Container Need: 1X20GP
Drive: Chain

Product Description

0.4-0.6mm thickness Ridge Cap Roll Forming Machine Press Step Type for roofing



Main Specification:



No Specification of the material

1



Suitable Material Colored Steel plate, Galvanized steel

2



Width of the raw material 333mm
3 Thickness 0.4-0.6mm





1. Profile drawing:

0.4 - 0.6mm thickness Pre Engineering Building Forming Machine Press Step Type

The Chart of Process Flow

0.4 - 0.6mm thickness Pre Engineering Building Forming Machine Press Step Type



Specification of Components



No   Technical Specification & Remark
1

Manual Uncoiler





  • Width of feeding: 333mm
  • Capability: 3 Ton
  • Mode of expand &fight: inner expand &fight by manual
  • Way of feeding: manual
2

Main Roll Forming Machine





  • Roller material:ASTM1045 chrome plated surface with chrome
  • Shaft diameter: ¢56mm solid shadt
  • material: SAE1045 with tempering
  • material thickness: 0.4-0.6mm
3

machine structure





  • wall board structure
  • 350H beam frame
4

Hydraulic pressing & cutting system





  • Material of blade/pressing mould:Cr12, 58-62 HRC hardness
  • Power by hydraulic,5.5KW
  • Length measuring: Automatic encoder length measuring
  • Tolerance of length: +/- 1.5mm for each piece end product
5

Hydraulic System







  • Hydraulic power: 5.5kw
  • Working pressure: 12-16Mpa adjustable
  • Solenoid valve: 2 groups
  • Hydraulic oil: 46# hydraulic oil





6

Computer Control Cabinet





  • Programmable setting of profile length and quantity
  • Operating system language: English and Chinese
  • Voltage, Frequency, Phase: 380V, 50 Hz, 3Phase
  • Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved
  • Control panel: Button-type switch and touch screen
  • PLC brand: Panasonic
7

out table



  • manual out table with support roller
  • length: 2 meters.
  • Quantity: 2 units



4. Warranty

  • Warranty: 1 year warranty from date of shipment
  • Guarantee:

1: Guaranteed against malfunctions due to manufacturing defects for 1 year after date of shipment. Repairs will be made free of charge.

2: Repairs will not be performed free of change even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

3:Air ticket, transportation cost, hotel, meals and 100$ per day shall be for purchaser’s account if manufacturer’s engineer has to be send to purchaser’s factory to maintain the machine during the guarantee period.
