Gcr15 Roller Material Silo Roll Forming Equipment by Gear with Decoiler

Basic Information
Place of Origin: China
Brand Name: Saibo
Certification: CE/ISO
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Suitable for ocean shipment
Delivery Time: 90 days
Payment Terms: L/C, T/T
Supply Ability: 300 sets per year
Contact Now
Detail Information
Product Name: Silo Roll Forming Machine Main PowerPower: 60KW
Hydraulic Power: 11kw Steel Thickness: 3.0-4.0mm
Roll Forming Speed: 0-15m/min Station: About 20 Stations
Roller Material: Gcr15 With Chrome Treatment Voltage: 380V, 50HZ 3P

Product Description

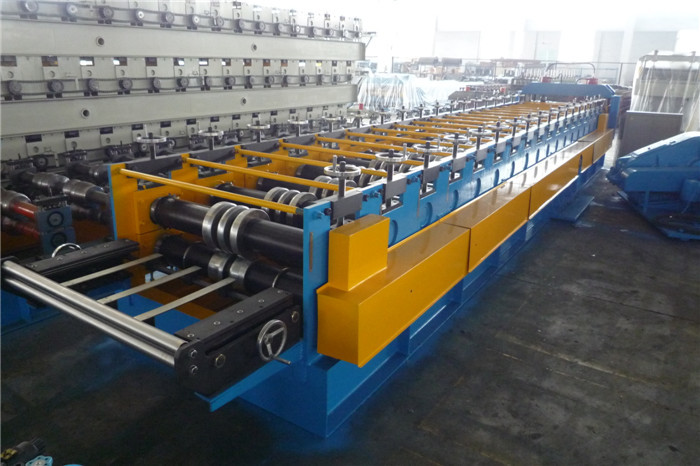

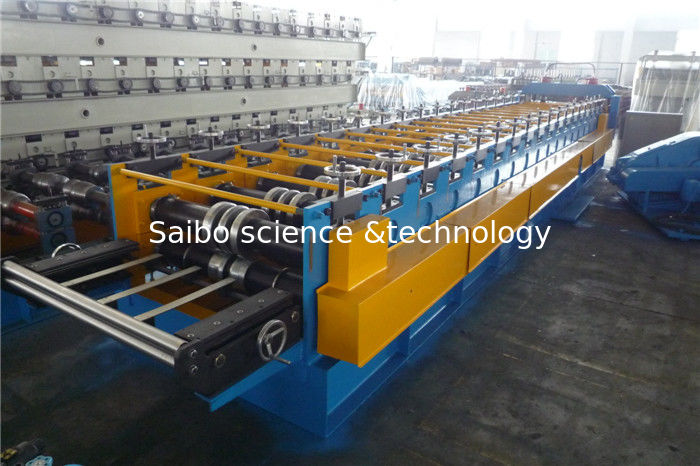

Gcr15 Roller Material Silo Roll Forming Machine by Gear with Decoiler





1. Main speficication:

No Specification of the material

1



Suitable Material

195-235Mpa GI or carbon steel

2



Width of the raw material Based on the purlin sizes.
3 Thickness 3.0-4.0mm



Profile:

Gcr15 Roller Material Silo Roll Forming Equipment by Gear with Decoiler



2. The Chart of Process Flow

Hydraulic decoiler→ Feeding→roll forming→punching1→punching2→cutting→auto staker



3. Specification of components

No   Technical Specification & Remark
1

10T Hydraulic de-coiler





  • Width of feeding: 1250mm
  • Capability: 10 Ton
  • Inter diameter: 470-520mm
  • Maximal out diameter: 1500mm
  • Working speed: 0-15m/min adjustable
  • Main motor power: 7.5KW AC motor
  • Hydraulic power: 5.5kw
2

Feeding

  • Feeding type: adjustable
  • Feeding width range:980-1200mm
  • Entrance and guide roller: diameter is ¢65mm, material is SAE1045, HRC48-52° surface with chrome
3

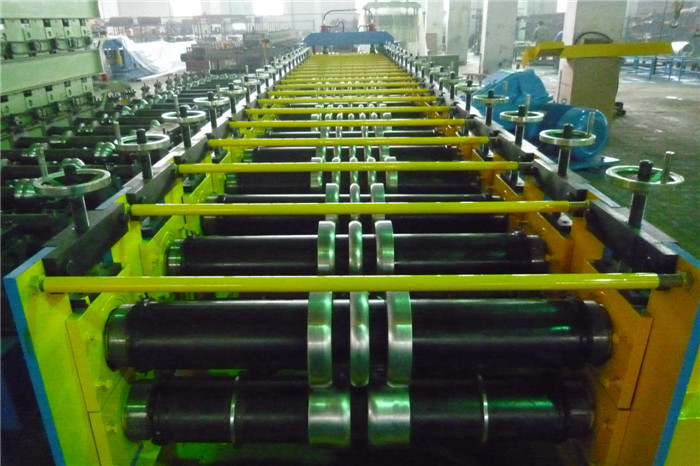

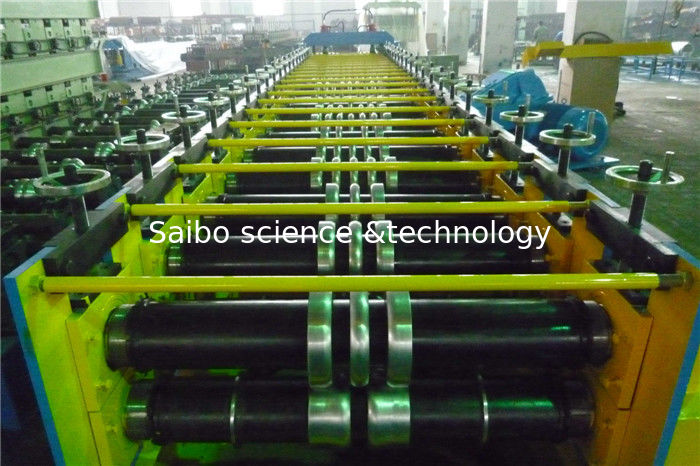

Roll forming









  • Thickness range:3.0-4.0mm
  •  Main motor power:60kw
  • Roll station:20stations
  • Machine Voltage, Frequency, Phase: 380 V, 50 Hz, 3Phase
  • Roll station:20 stations
  • Roller material:Gcr15 bearing material chrome plated surface with hardness 58-62 degree ,CNC,
  • Shaft diameter: ¢150mm material: SAE1045 with quenching and tempering
  • Transmission: by gear box
4

Punching system





  • Base on customer provide punching drawing, this machine need adopt two units hydraulic punching system
  • The punches and dollies will be CR-12, hardness HRC 58-62 and chrome coating both punches and dolies should be easily replaceable without requiring disassembly of complete units.
  • Hydraulic power: 11kw



5

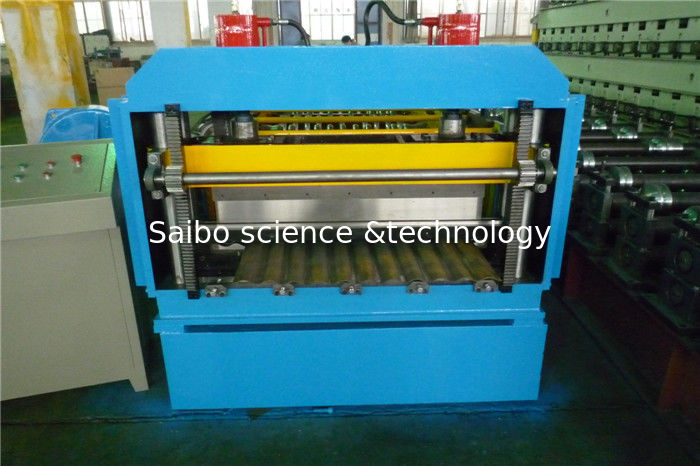

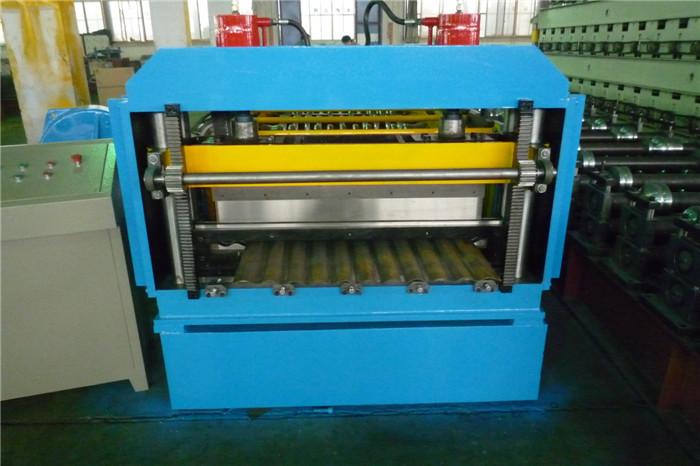

Hydraulic cutting





  • Cutting mode: Cut the sheet after roll forming to required length with stop
  • Cutting power by hydraulic: 11KW, share the same one to punching
  • Working pressure: 25Mpa adjustable(according the final design)
  • Material of blade:Cr12 with heat treatment 58-60°
  • Length measuring: Automatic encoder length measuring
6

Hydraulic station



  • Hydraulic power: 11kw
  • Working pressure: 2Mpa adjustable
  • Solenoid valve: 3 groups
  • Hydraulic oil: 46# hydraulic oil
7

Control panel system

  • Programmable setting of profile length and quantity
  • Operating system language: English and Chinese
  • Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved
  • Length inaccuracy can be amended easily.







4. FQA



1) Q: Are you manufacturer or trading company?

A: We are manufacturer and trading company .



2) Q: Do you provide installing and training overseas?

A: Overseas machine install and worker training services are optional.



3) Q: How is your after sales support?

A: We provide technical support on line as well as overseas services by skillful technicians.



4) Q: How does your factory do regarding quality control?

A: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.



5) How can I trust you that machines pasted testing running before shipping?

A: 1) We record the testing video for your reference. Or,

2) We welcome you visit us and test machine by yourself in our factory.



6) Q: Do you have this roof panel roll forming machine in stock?

A: No, machine is made to order.
