| Place of Origin: | China |
|---|---|
| Brand Name: | Saibo |
| Certification: | CE/IS09001/SGS |
| Model Number: | P Type Tube |
| Minimum Order Quantity: | 1 set |
| Packaging Details: | Suitable for ocean shipment |
| Delivery Time: | 60 working days after received deposit |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 sets per year |
| Product Name: | P Type Tube Roll Forming Machine | Steel Thickness: | 1.9mm |
|---|---|---|---|
| Material: | HR, CR, Mild Steel | Roller Material: | CR12 With Chrome, HRC58-62 |
| Station: | About 23 Stations | Drive: | Gear Box |
| Total Power: | About 43.5KW | Diameter Of Shaft: | 70mm |
| High Light: | 70mm Cold Roll Forming Machine,Tube Welding Roll Forming Machine,Cold Roll Forming Machine 1.9mm |
||
P Type Tube Welding Roll Forming Machine with Fly Saw Track Cutting
Profile:
1. Coil width: Acording to the customer request
2. Thickness: 1.9mm, HR, CR, Mild steel
Layout
Specifications:
| Item NO |
Description |
Offered specification |
| 1 | Roll Forming Machine |
P Type Tube Welding Roll Forming Machine |
| 2 | Material Width | According to the final product |
| 3 | Rolling Speed | 12-15m/min(not include cutting & punching time) |
| 4 | Rolling Thickness | 1.9 mm |
| 5 | Control System | PLC (Panasonic) as list in the note |
| 6 | Un Coiler | 5 ton hydraulic de-coiler |
| 7 | Roller Stations | 23 stations (according the final design) |
| 8 | Roller Material |
CR12, HRC58-62℃ coated with chrome |
| 9 | Shaft Material and DIA | ￠100mm, material is 45# forge steel |
| 10 | Maim Motor Power | 30kw |
| 11 | Cutting Power | 7.5kw |
| 12 | Servo track power | 3kw |
| 13 | Material Of Cutting | Cr12 quenching 58-62℃ |
| 14 | Structure Of The Stations | Wire electrode cutting |
| 15 | Tolerance | 3m+-1.5mm |
| 16 | Electric Source |
380V, 50HZ,3 phase According to customer’s require
|
| 17 | Way Of Drive | By gearbox |
| 18 | Color Of The Machine | Yellow and blue |
| 19 | Container Need | 1 x40 feet & 1 x20 feet |

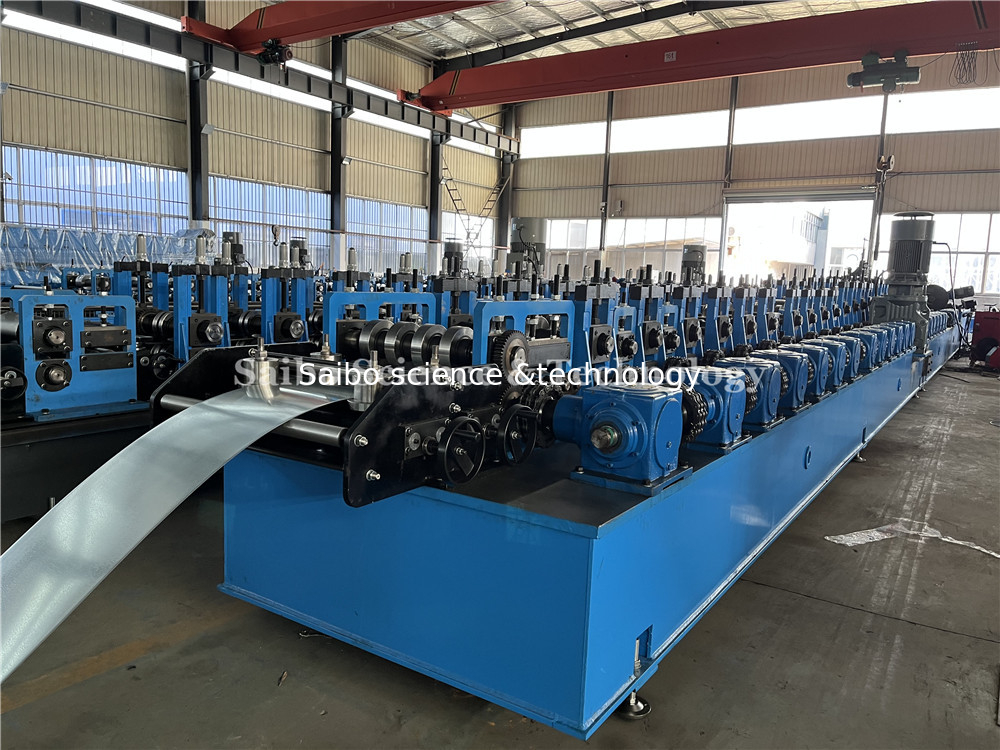

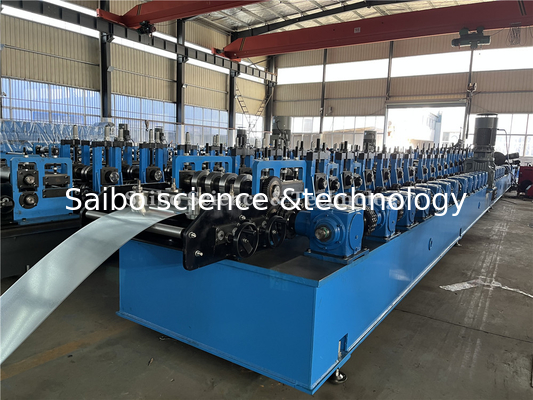

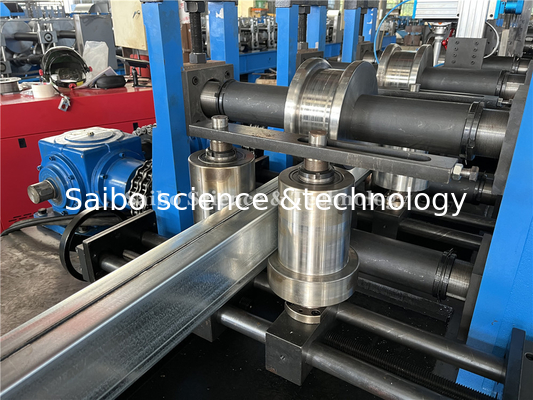

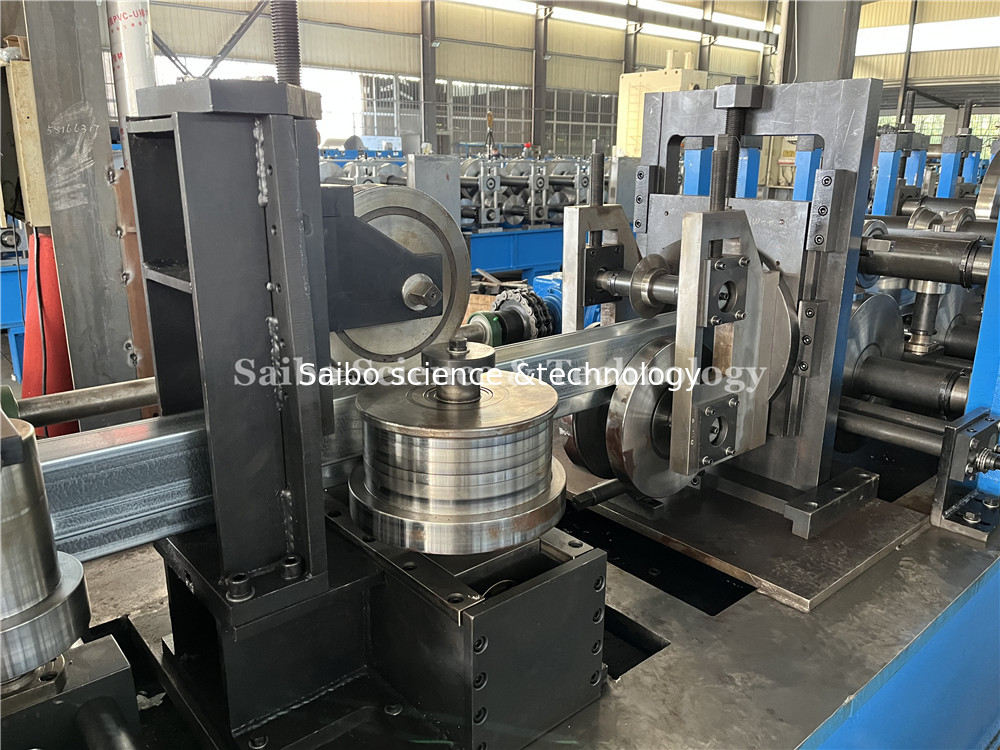

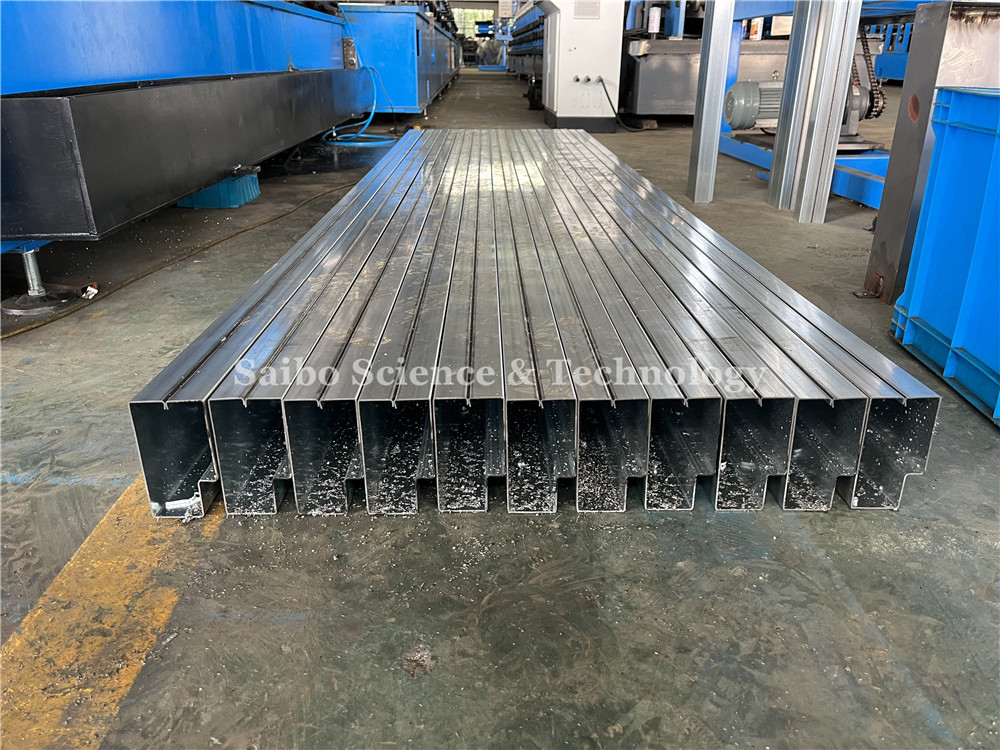

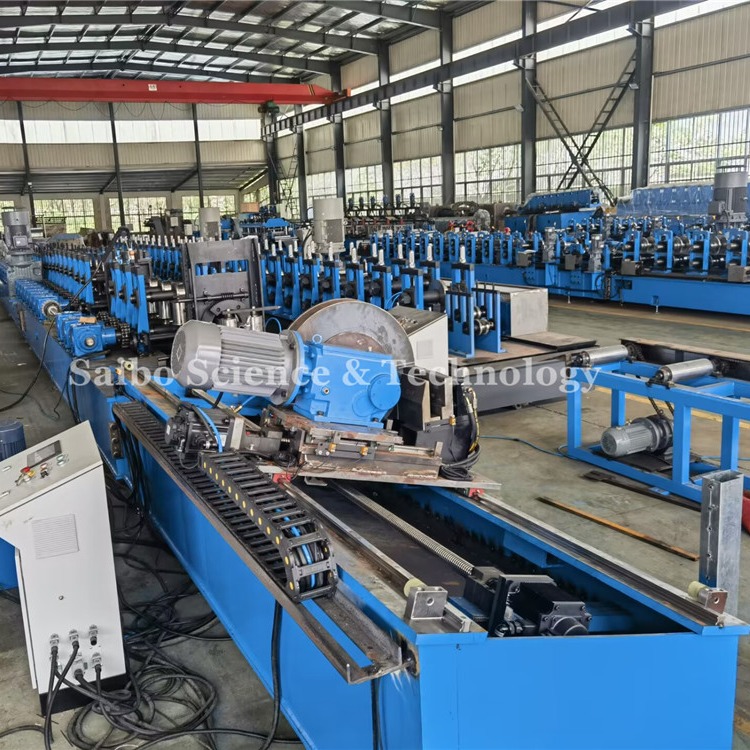

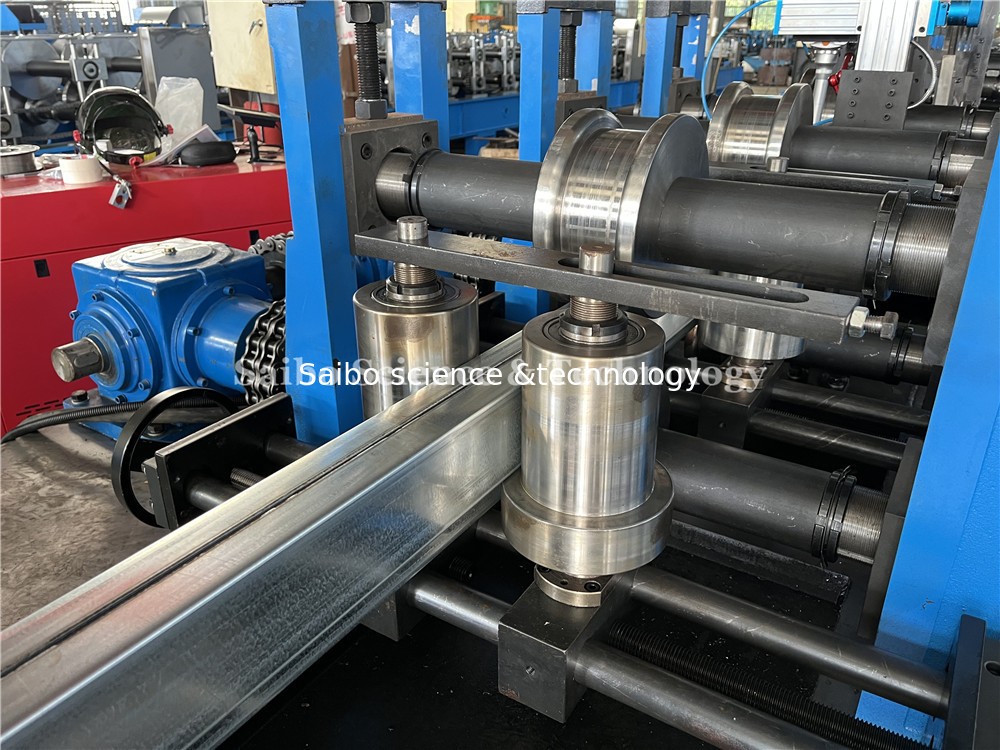

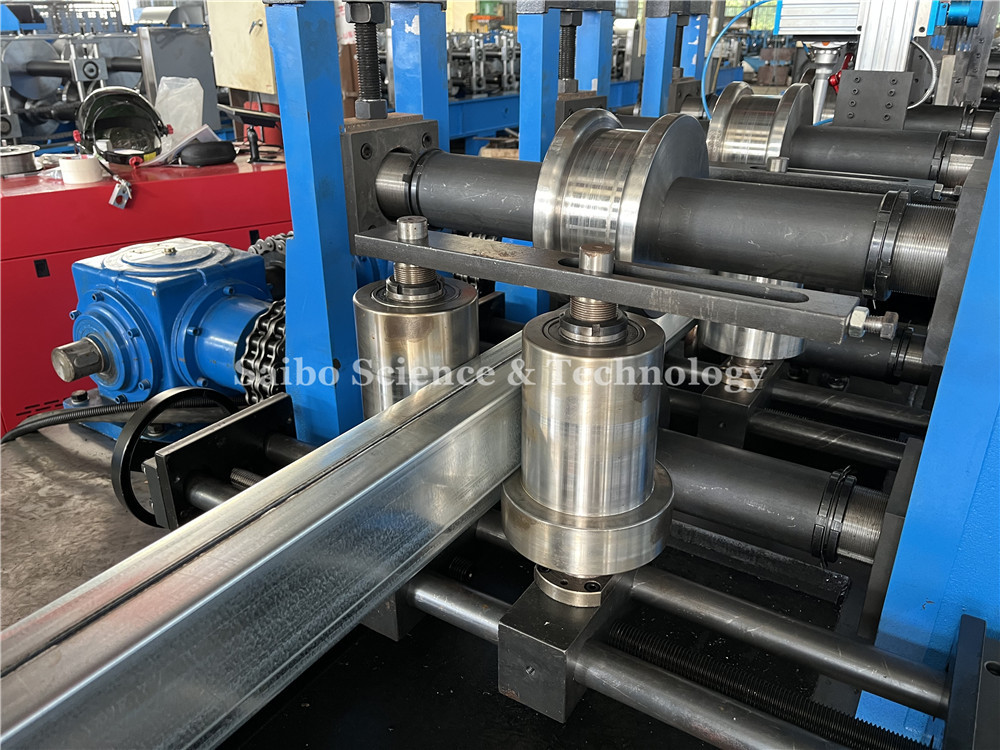

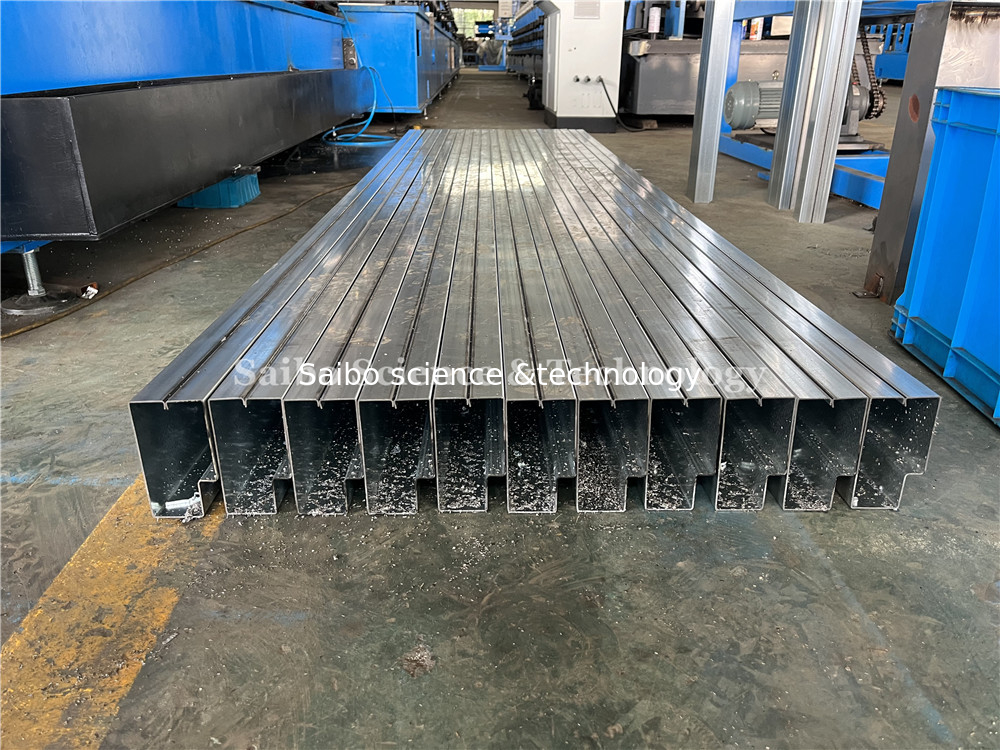

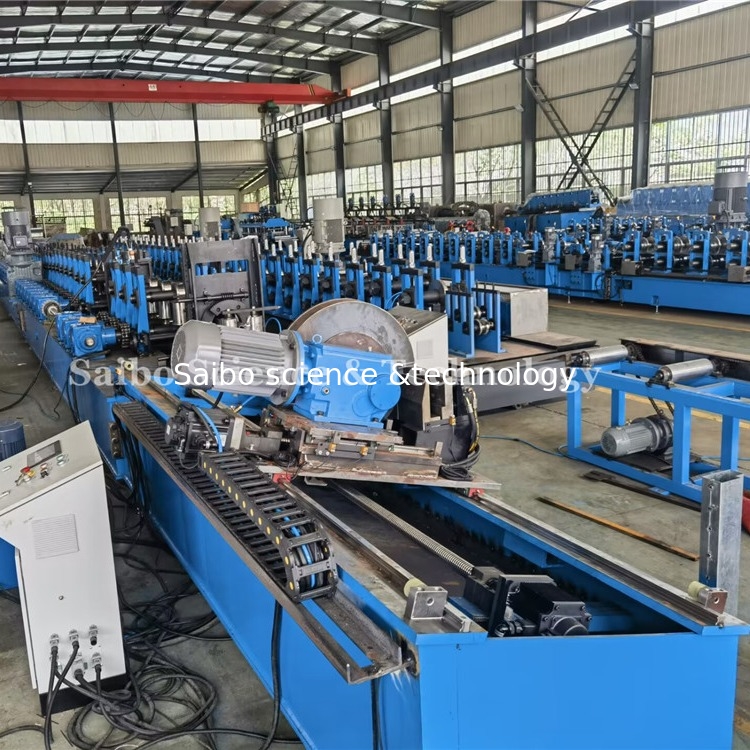

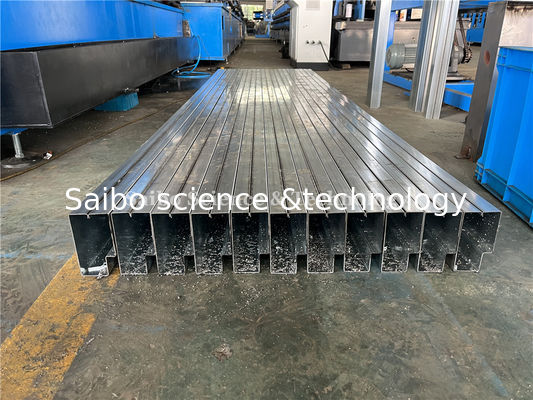

Picutres for reference
Main Features
1. Simple structure in linear type ,easy in installation and maintenance.
2. Adopting advanced world famous brand components in pneumatic parts, electric parts and operation parts.
3. Running in a high automatization and intellectualization, no pollution
4. No need foundation, easy operation
