5.5KW AC Motor Corrugated Roofing Sheet Making Machine With Auto Stacker

Basic Information
Place of Origin: China
Brand Name: Saibo
Certification: CE/ISO
Model Number: YX33-200-1000
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Suitable for ocean shipment
Delivery Time: 70 working days after received deposit
Payment Terms: T/T or L/C
Supply Ability: 300 sets per year
Contact Now
Detail Information
Product Name: Roof Panel Roll Forming Machine Power: 5.5KW+4kw
Steel Thickness: 0.3-0.8mm Decoiler: 45# Forge Steel, Surface With Chrome
Station: About 20 Stations Productivity: 0-15m/min
Drive: By Chain Color: Bule And Yellow

Product Description

YX33-200-1000 Roofing Panel Roll Forming Machine



1. Specification of the material

1 Suitable Material Colored Steel plate, Galvanized steel
2 Width of the raw material 1220mm
3 Thickness 0.3-0.8mm




2. Machine Detailed Parameters

1

Roll Forming Machine



YX33-200-1000
2

Machine structure



Wall panel structure
3 Total power

Motor power-5.5kw

Hydraulic power-4kw

4

Roller stations



About 20 stations
5

Productivity



0-15m/min
6

Drive system



By chain,1.0 inch
7

Diameter of shaft



¢70mm solid shaft
8

Voltage



380V 50Hz 3phases (Customized)
9

Color Of The Machine



Bule and yellow
10

Deliver time



70 days
11

Terms Of Payment



30%T/T 70% pay before shipment



3. Profile drawing

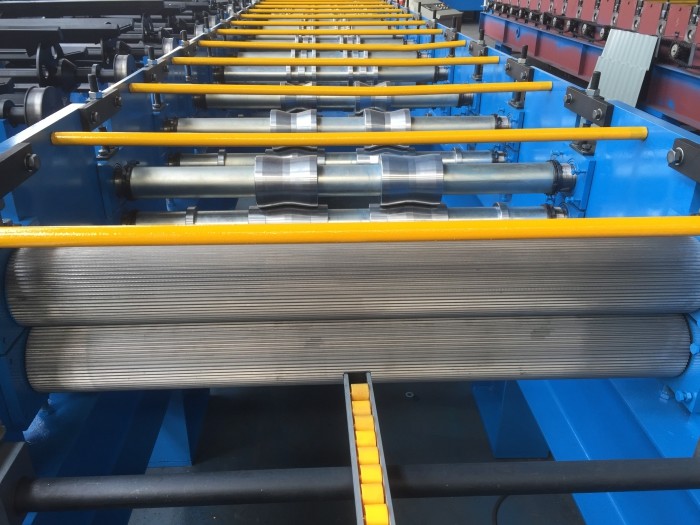

5.5KW AC Motor Corrugated Roofing Sheet Making Machine With Auto Stacker

4. The Chart of Process Flow



Hydraulic Uncoiler—Roll Forming—Cutting—Auto stacker

5.5KW AC Motor Corrugated Roofing Sheet Making Machine With Auto Stacker



5. Specification of Components



(1) 5T Hydraulic Un-coiler

  • Width of feeding: 1250mm
  • Capability: 5 Ton
  • Inter diameter: 470-520mm
  • Maximal out diameter: 1500mm
  • Working speed: 0--20m/min adjustable
  • Main motor power: 5.5KW AC motor
  • Hydraulic power: 4kw



(2) Main Roll Forming Machine

  • Roller material:ASTM1045 chrome plated surface with chrome
  • Shaft diameter: ¢70mm material: SAE1045 with quenching and tempering
  • Main frame by 350H beam welding
  • Machine structure: wall panel



(3) Hydraulic cutting system

  • Cutting after forming: Cut the sheet after roll forming to required length
  • Material of blade:Cr12, 58-62 HRC hardness
  • Cutting power by hydraulic,4KW
  • Working pressure: 12Mpa adjustable
  • Length measuring: Automatic encoder length measuring
  • Tolerance of length: +/- 1.5mm for each piece end product



(4) Computer Control Cabinet

  • Programmable setting of profile length and quantity
  • Operating system language: English and Chinese
  • Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved
  • PLC: Panasonic or customerization



(5) Auto Stacker

  • Run out motor power: 0.75KW
  • Max speed: 15m/min
  • Max stacking length: 6m
  • Max stacking thickness: 300mm
  • Max stacking weight: about 2.5 tons
