7.5kw Punching Cable Tray Roll Forming Machine 5 Tons Hydraulic Decoiler

Basic Information
Place of Origin: China
Brand Name: Saibo
Certification: CE/IS09001/SGS
Model Number: YX199-610
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Suitable for ocean shipment
Delivery Time: 60 working days after received deposit
Payment Terms: L/C, T/T, Western Union
Supply Ability: 310 sets per year
Detail Information
Product Name: K-Span Roll Forming Machine Usage: Building
Steel Thickness: 0.8-1.2mm Power: 11KW+7.5KW+2.9KW
Roller Material: #45 Forged Steel With Chrome Station: 17 Stations
Container Need: 1X40GP + 2X40GP Shaft: ¢80mm
High Light:

Roof Tile Roll Forming Machine

,

K-Span Roll Forming Machine


Product Description

YX199-610 K-Span Roll Forming Machine



Profile:

All of our machine profile is customized, below profile is only for your reference.

1. Coil width: 914mm

2. Effective width: 610mm

3. Thickness: 0.8-1.2mm

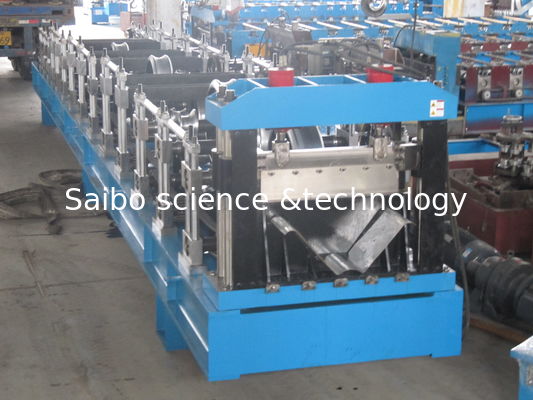

7.5kw Punching Cable Tray Roll Forming Machine 5 Tons Hydraulic Decoiler 0

Layout:

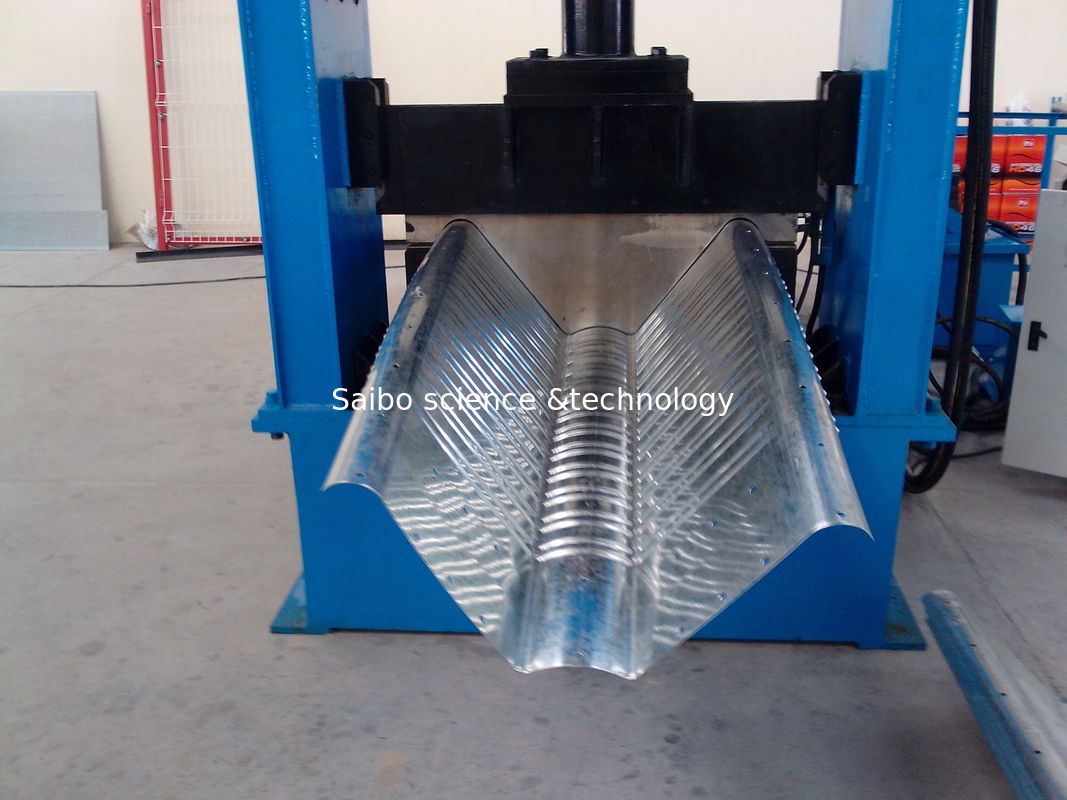

7.5kw Punching Cable Tray Roll Forming Machine 5 Tons Hydraulic Decoiler 1

Hydraulic de-coiler—Servo Feeding—Punching—Roll Forming—Cutting—Out table



Specifications:

Item NO



Description



Offered specification

1 Roll Forming Machine K-span
2 Coil width 914mm
3 Rolling Speed 10-15m/min(not include cutting and punching time)
4 Rolling Thickness 0.8-1.2mm
5 Control System PLC (Panasonic) as list in the note
6 Un Coiler 5T hydraulic de-coiler
7 Servo feeding 2.9KW
8 Punching 7.5kw
9 Roller Stations About 17 stations (according the final design)
10 Roller Material 45# forge steel, coated with chrome
11 Shaft Material and DIA ¢80mm, material is 45# forge steel
12 Post cutting Hydraulic cutting after forming
13 Maim Motor Power 11kw
14 Hydraulic Station Power 7.5kw
15 Hydraulic Pressure 12-16Mpa adjustable
16 Material Of Cutting Cr12Mov quenching 58-62℃
17 Structure Of The Stations Guide pillar
18 Tolerance 3m+-1.5mm
19 Electric Source

380V, 50HZ,3 phase

According to customer’s require



20 Way Of Drive By 1.5inch chain
21 Color Of The Machine Yellow and blue
22 Size of the machine L*W*H about 9.0m*1.2m*1.2m
23 Container Need 1x40 feet + 1x20 feet


Main Features

1. Simple structure in linear type ,easy in installation and maintenance.

2. Adopting advanced world famous brand components in pneumatic parts, electric parts and operation parts.

3. Running in a high automatization and intellectualization, no pollution

4. No need foundation, easy operation



Photos of each component
