Metal Roofing Sheet Double Layer Roll Forming Machine By Chain Hydraulic Decoiler

China Metal Roofing Sheet Double Layer Roll Forming Machine By Chain Hydraulic Decoiler supplier

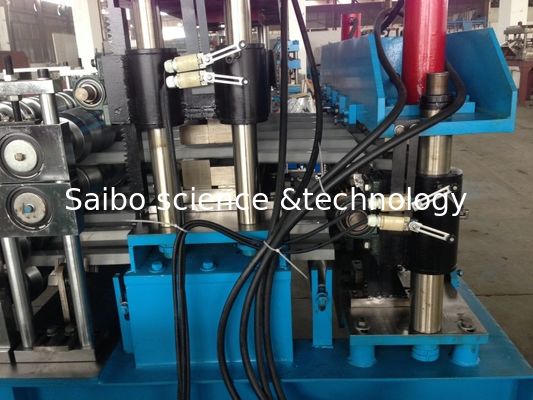

Large Image :  Metal Roofing Sheet Double Layer Roll Forming Machine By Chain Hydraulic Decoiler

Product Details:

Place of Origin: China
Brand Name: Saibo
Certification: CE/ISO
Model Number: YX24-183-1100/ YX10-111-1110

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Suitable for ocean shipment
Delivery Time: 70 working days after received deposit
Payment Terms: T/T or L/C
Supply Ability: 300 sets per year
Detailed Product Description
Product Name: Double Layer Roll Forming Machine Power: 7.5KW+5.5kw
Size Of Purlin: YX28-193-772/ YX37-170-680 Steel Thickness: 0.3-0.7mm
Decoiler: Hydraulic Station: Up Layer: 11stations; Down Layer: 18stations
Roller Material: ASTM1045 Chrome Plated Surface With Chrome Productivity: Up Layer: 2-4m/min; Down Payer: 0-15m/min

Double Layer Roll Forming Machine



1. Specification of the material

1 Suitable Material PI/ PPGI
2 Width of the raw material 1250mm
3 Thickness 0.3-0.7mm




2. Machine Detailed Parameters

1

Roll Forming Machine



YX24-183-1100/ YX10-111-1110
2

Machine structure



Guide pillar structure
3 Total power

Motor power-7.5kw

Hydraulic power-5.5kw

4

Roller stations



Up layer- 11 stations

Down Layer-18stations

5

Productivity



Up layer- 2-4m/min

Down Layer-0-15m/min

6

Drive system



By chain
7

Diameter of shaft



¢70mm solid shaft
8

Voltage



380V 50Hz 3phases (Customized)
9

Color Of The Machine



Bule and yellow
10

Deliver time



70 days
11

Terms Of Payment



30%T/T 70% pay before shipment



3. Profile drawing



Up Layer

Metal Roofing Sheet Double Layer Roll Forming Machine By Chain Hydraulic Decoiler

Down Layer

Metal Roofing Sheet Double Layer Roll Forming Machine By Chain Hydraulic Decoiler



4. The Chart of Process Flow



 Hydraulic Decoiler—Roll Forming—Cutting—Out table

Metal Roofing Sheet Double Layer Roll Forming Machine By Chain Hydraulic Decoiler





5. Specification of Components



(1) 5T Hydraulic Un-coiler

  • Width of feeding: 1250mm
  • Capability: 10 Ton
  • Inter diameter: 470-520mm
  • Maximal out diameter: 1500mm
  • Working speed: 0--20m/min adjustable
  • Main motor power: 7.5KW AC motor
  • Hydraulic power: 5.5kw



(2) Main Roll Forming Machine

  • Roller material: SAE1045 chrome plated surface with chrome
  • Shaft diameter: ¢70mm material: SAE1045 with quenching and tempering

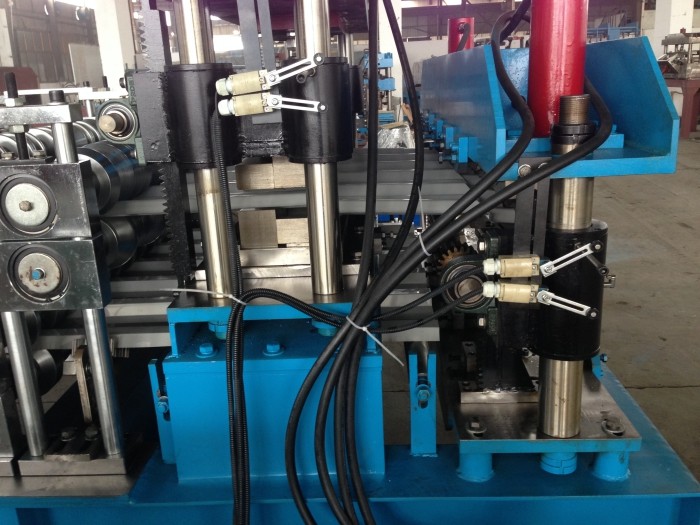

(3) Machine Structure

  • Main frame by 350H beam welding
  • Machine structure: guide pillar



(4) Hydraulic Cutting System

  • Cutting after forming: Cut the sheet after roll forming to required length
  • Material of blade:Cr12, 58-62 HRC hardness
  • Cutting power by hydraulic,5.5KW
  • Working pressure: 12Mpa adjustable
  • Length measuring: Automatic encoder length measuring
  • Tolerance of length: +/- 1.5mm for each piece end product



(5) Computer Control Cabinet

  • Programmable setting of profile length and quantity
  • Operating system language: English and Chinese
  • Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved
  • PLC: Panasonic or customerization
