10 Tons Concrete Roof Tile Making Machine for Wall Board 15m/min

Basic Information
Place of Origin: China
Brand Name: Saibo
Certification: CE/ISO
Model Number: YX18-75-1050/ YX 30-200-1000
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Suitable for ocean shipment
Delivery Time: 70 working days after received deposit
Payment Terms: T/T or L/C
Supply Ability: 300 sets per year
Detail Information
Product Name: Double Layer Roll Forming Machine Power: 7.5KW+5.5kw
Size Of Purlin: YX18-75-1050/ YX30-200-1000 Steel Thickness: 0.3-0.8mm
Decoiler: Hydraulic Station: Up Layer: 18stations; Down Layer: 20 Stations
Roller Material: ASTM1045 Chrome Plated Surface With Chrome Size Of Line: About 7.5mx2.1mx2.0m
High Light:

Double Deck Roll Forming Machine

,

Metal Roll Forming Machines


Product Description

Double Layer Roll Forming Machine



1. Specification of the material

1 Suitable Material Colored Steel plate, Galvanized steel
2 Width of the raw material 1250mm
3 Thickness 0.3-0.8mm




2. Machine Detailed Parameters

1

Roll Forming Machine



YX18-75-1050/ YX30-200-1000

2

Machine structure



Wall panel structure
3 Total power

Motor power-7.5kw

Hydraulic power-5.5kw

4

Roller stations



Up layer- 18stations

Down Layer-20 stations

5

Productivity



0-15m/min
6

Drive system



By chain
7

Diameter of shaft



¢70mm solid shaft
8

Voltage



380V 50Hz 3phases (Customized)
9

Color Of The Machine



Bule and yellow
10

Deliver time



70 days
11

Terms Of Payment



30%T/T 70% pay before shipment



3. Profile drawing



Up Layer

10 Tons Concrete Roof Tile Making Machine for Wall Board 15m/min 0

Down Layer

10 Tons Concrete Roof Tile Making Machine for Wall Board 15m/min 1



4. The Chart of Process Flow



Hydraulic Decoiler—Roll Forming—Cutting—Out table

10 Tons Concrete Roof Tile Making Machine for Wall Board 15m/min 2





5. Specification of Components

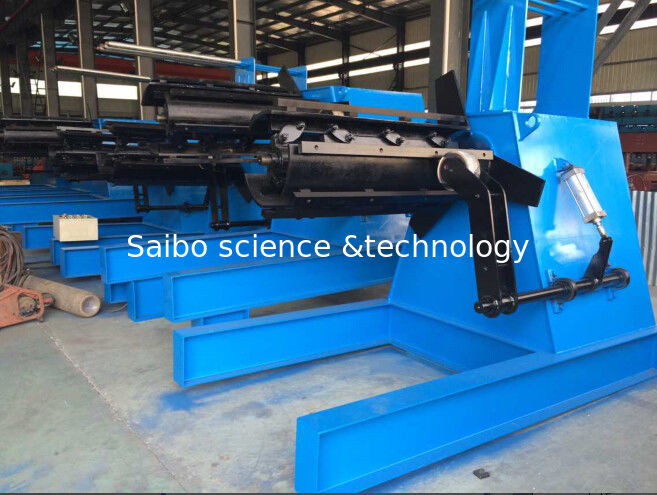

(1) 10T Hydraulic Un-coiler

  • Width of feeding: 1250mm
  • Capability: 10 Ton
  • Inter diameter: 470-520mm
  • Maximal out diameter: 1500mm
  • Working speed: 0--20m/min adjustable
  • Main motor power: 7.5KW AC motor
  • Hydraulic power: 5.5kw



(2)Coil Car

  • Coil weight (Max): 10 Ton
  • Working lift journey: Maximal 250mm
  • Working function: forward and reverse movable
  • Move journey: maximal 3 meters



(3) Main Roll Forming Machine

  • Roller material:ASTM1045 chrome plated surface with chrome
  • Shaft diameter: ¢70mm material: SAE1045 with quenching and tempering
  • Main frame by 350H beam welding
  • Machine structure: wall panel



(4) Hydraulic Cutting System

  • Cutting after forming: Cut the sheet after roll forming to required length
  • Material of blade:Cr12, 58-62 HRC hardness
  • Cutting power by hydraulic,5.5KW
  • Working pressure: 12Mpa adjustable
  • Length measuring: Automatic encoder length measuring
  • Tolerance of length: +/- 1.5mm for each piece end product



(5) Computer Control Cabinet

  • Programmable setting of profile length and quantity
  • Operating system language: English and Chinese
  • Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved
  • PLC: Panasonic or customerization
