Omega High Speed Ceiling Roll Froming Machine Adjustable 2.0mm 18.5KW + 11w

Basic Information
Place of Origin: China
Brand Name: Saibo
Certification: CE/ISO
Model Number: Omega High Speed Roll Forming Machine
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Suitable for ocean shipment
Delivery Time: 70 working days after received deposit
Payment Terms: T/T, L/C
Supply Ability: 300 sets per year
Contact Now
Detail Information
Product Name: Omega High Speed Roll Forming Machine Power: 18.5KW+11w
Size Of Purlin: Omega Steel Thickness: 2.0mm
Decoiler: Hydraulic Station: 14 Stations + One Station For Rectify
Roller Material: ASTM1045 Chrome Plated Surface With Chrome Drive: By Chain

Product Description

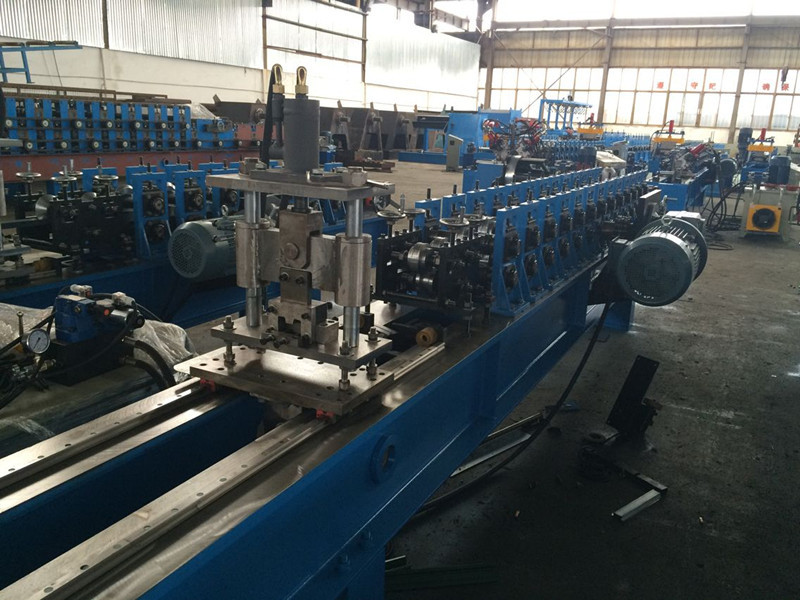

Omega High Speed Roll Forming Machine



1. Specification of the material

1 Suitable Material Galvanized steel 350Mpa
2 Width of the raw material According to the final profile
3 Thickness 2.0mm



2. Machine Detailed Parameters

1 Roll Forming



Omega High Speed Roll Forming Machine



2 Machine structure



Wire-electrode cutting
3 Total power

Motor power-18.5kw

Hydraulic power-11kw

Servo power-4kw

4 Roller stations



About 14 stations + one station for rectify



5

Productivity



40-50m/min
6

Drive system



By chain
7

Diameter of shaft



¢70mm solid shaft
8

Voltage



380V 50Hz 3phases (Customized)
9

Color Of The Machine



Yellow and blue

10

Deliver Time



70 days
11

Terms Of Payment



30%T/T 70% pay before shipment



3. Profile drawing

Omega High Speed Ceiling Roll Froming Machine  Adjustable 2.0mm 18.5KW + 11w



4. The Chart of Process Flow

Omega High Speed Ceiling Roll Froming Machine  Adjustable 2.0mm 18.5KW + 11w





5. Specification of Components



(1) 5T hydraulic decoiler

  • Steel coil width: 550 mm;
  • Internal diameter of coil: variable, from380 mm to 520 mm
  • Maximal out diameter:1200mm
  • Maximum coil weight: 5000 Kg;
  • Main motor power: 5.5KW
  • Hydraulic power: 4kw
  • Quantity: 1



(2) Main Roll Forming Machine

  • Roller material:ASTM52100 chrome plated surface with chrome, HRC58-62 degree
  • Shaft diameter: ¢70mm material: SAE1045 with tempering
  • Change size by spacer
  • To avoid accidents, the driven parts will be covered with the protective cover
  • Cooling system is consider

(3) Machine Structure

  • Main frame by 350H beam welding
  • Machine structure: Wire-electrode cutting



(4) Track cutting system

  • Machine adopt track cutting system, Non-stop
  • Cutting power by hydraulic, 11KW
  • Track cutting by servo motor, power in 4.0KW
  • Cutting after forming: Cut the sheet after roll forming to required length
  • Cutting motion: The main machine is NON-stop when cutting
  • Material of blade:Cr12 with heat treatment 58-60°



(5) Computer Control Cabinet

  • Programmable setting of profile length and quantity
  • Operating system language: English and Chinese
  • Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved
  • PLC: Panasonic or customerization



Usage:



a. Put the raw material(steel plate) through the beach to manufacture and process,it can guarantee that the products are neat, parallel and everything is uniformity.Please refer to the equipment regulation to know the function of locate angle iron.



b. In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, chain

transmission,roller was chromed which can keep the molding plate surface smooth and not easy to be marked whenit is working



c. Feature : Ensure stability , precision and lifetime.

Advanced hydraulic drive, automatic punching and cutting after forming, no distorting or wasting, high level safety factor.



Contact Details
Ms.Nancy

WhatsApp : 8613921223200
