| Brand Name: | HENGFU |
| MOQ: | 1 Piece |
| Payment Terms: | 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment |

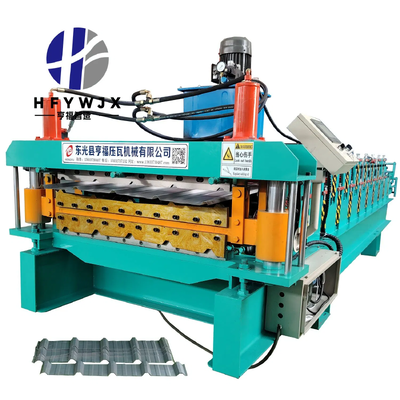

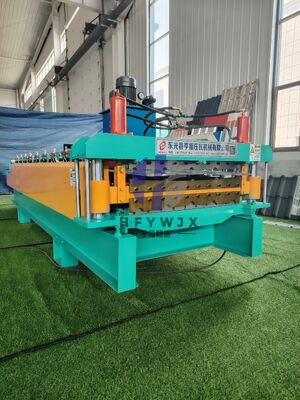

The Double Layer Roll Forming Machine seamlessly combines two independent roll forming models into a single, high-performance system. With a scientifically optimized structure, sleek appearance, space-saving design, and simple operation, it is the perfect solution for small workshops, on-site construction, and businesses with limited factory space.
The machine is mainly composed of a feed introduction platform, forming host, forming and shearing device, hydraulic station, and computer control system. Each component is engineered for durability, ensuring stable, long-term operation under continuous production conditions.
Switching between the upper and lower layers is straightforward and efficient. Operators can control each layer separately via the conversion button on the electric control cabinet, or use the clutch system for independent power management, enabling flexible production without downtime.
The upper and lower layer models are fully customizable to meet specific customer requirements. Optional configurations, including ordinary and hydraulic unloading machines, further enhance automation and efficiency, adapting to diverse production needs.
| Model NO | Double layer roll forming machine |
|---|---|
| Condition | New |
| Usage | Roof |
| External dimensions | 6500mm x 1300mm x 1200mm |
| Machine frame | 300H steel frame |
| Number of rolling mill sets | 13-11 row molding |
| Roll material | 45# steel rough lathe fine lathe outer circle grinding and electroplating treatment during addition |
| Spindle material | 45 steel |
| Spindle diameter | Φ70mm (Solid shaft) |
| Type of Driven | Chain drive |
| Forming Speed | 0-35M/min |

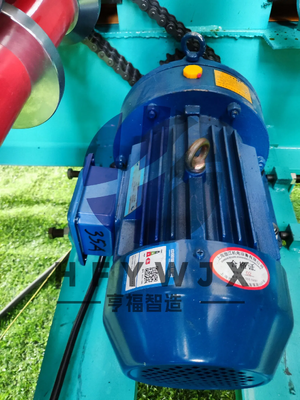

| Main motor power | 7.5KW |
| Electric control system | PLC |
| Customized | Customized |
| Origin | Cangzhou, Hebei |
| Warranty | 1 year |
