380V 840-900 Double Layer Roofing Sheet Roll Forming Machine 300H Steel Frame

Brand Name:	HENGFU
MOQ:	1 Piece
Payment Terms:	30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Model NO:

840-900 Double Layer Roll Forming Machine

Certification:

CE, SGS

Customized:

Customized

Transmission Mode:

One Inch Chain

Usage:

Roof, Wall, Floor

Cutting Method:

Hydraulic Shearing

Tile Type:

Colored Steel

Transport Package:

Plastic Film & Steel Wire Fixed

Control System:

PLC System

Voltage:

380V 50Hz 3phases(Customizable)

Packaging Details:

Plastic Film & Steel Wire Fixed

Highlight:

double layer roofing sheet roll forming machine 300h

380v double layer roofing sheet machine

380v double layer roofing sheet roll forming machine

Product Description

840-900 IBR Roofing Sheet Iron Steel Corrugated Roof Sheeting Metal Double Layer Tile Panel Roll Forming Machine

The 840-900 double layer roll forming machine is a highly efficient solution designed for producing color steel roof and wall panels. By integrating two popular profiles—840 and 900—into a single machine, it allows manufacturers to switch between panel types without changing equipment, significantly improving productivity and saving factory space.

This machine is engineered with a robust steel frame and high-precision rollers to ensure stable performance and consistent panel quality. The roll forming process is smooth and continuous, producing panels with accurate dimensions, clean edges, and strong structural integrity, making them ideal for various construction applications.

Equipped with an advanced control system, typically PLC-based, the machine offers easy operation and precise length control. Operators can set production parameters through a user-friendly interface, enabling automatic cutting and efficient workflow with minimal manual intervention.

One of the key advantages of the 840-900 model is its double-layer design, which reduces investment costs by combining two machines into one. It also enhances flexibility, allowing manufacturers to respond quickly to different market demands for roof and wall panel profiles.

The machine is widely used in the construction of industrial buildings, warehouses, workshops, and residential structures. Panels produced by this equipment are known for their durability, weather resistance, and aesthetic appearance, making them a preferred choice in modern building projects.

Overall, the 840-900 double layer tile press machine offers a reliable, cost-effective, and versatile solution for metal roofing and wall panel production, helping businesses improve efficiency while maintaining high product standards.

Technical Specifications

Model NO	Double layer roll forming machine
Condition	New
Usage	Roof
External dimensions	6500mm x 1300mm x 1200mm
Machine frame	300H steel frame
Number of rolling mill sets	13-11 row molding
Roll material	45# steel rough lathe fine lathe outer circle grinding and electroplating treatment
Spindle material	45 steel
Spindle diameter	Φ70mm (Solid shaft)
Type of Driven	Chain drive
Forming Speed	0-35M/min
Main motor power	7.5KW
Electric control system	PLC
Customized	Customized
Origin	Cangzhou, Hebei
Warranty	1 year

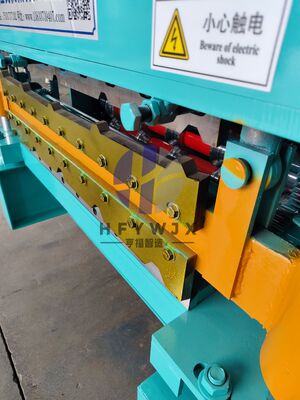

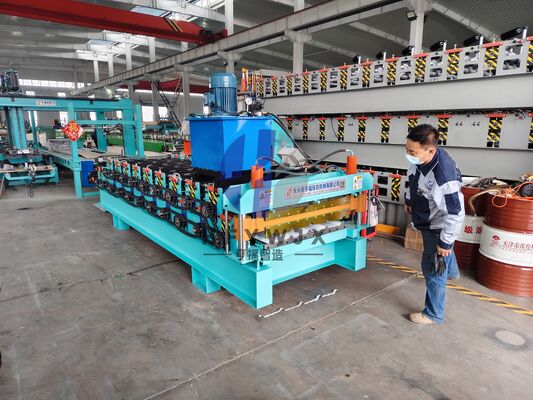

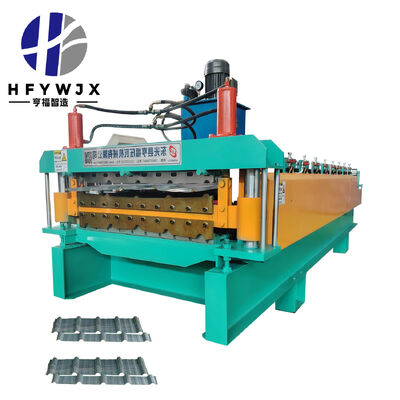

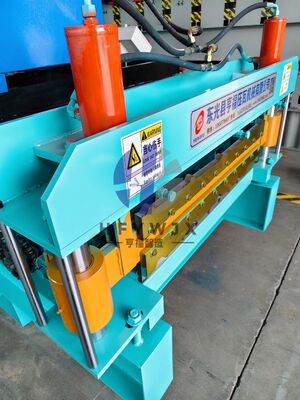

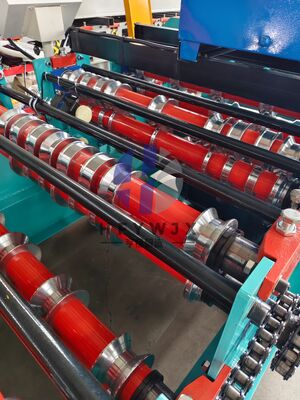

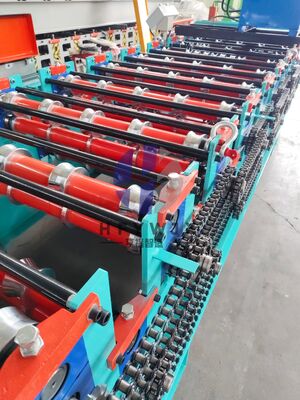

Product Gallery

Frequently Asked Questions

Q1: Are you a trading company or a factory?

A1: We are a manufacturer located in Cangzhou, Hebei. We have our own product design team. Welcome to visit our factory and inspect the quality of our machines on-site.

Q2: Do you have after-sales support?

A2: Yes, we are happy to provide advice and we also have skilled technicians available across the world.

Q3: Do you sell only standard machines?

A3: No, most of our machines are built according to customers specifications, using top brand components.

Q4: What will you do if the machine is broken?

A4: We provide 12 months free warranty and free technical support for the whole life of any machine. If the broken parts can't repair, we can send the new parts replace the broken parts freely, but you need pay the express cost by yourself. If it is beyond the warranty period, we can negotiate to solve the problem, and we supply the technical support for the whole life of the equipment.

Q5: Can you finish the machine during the delivery time?

A5: We will finish the machine in time according to determined lead time.
