Heavy Duty Double Roll Forming Machine 0-40M/Min Spindle Diameter Φ80mm Solid Shaft

Brand Name:	HENGFU
MOQ:	1 Piece
Payment Terms:	30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Package Size:

1100.00cm * 130.00cm * 140.00cm

Package Gross Weight:

15000.000kg

Model NO.:

C8 C21 Double Layer Roll Forming Machine

Certification:

CE, SGS

Customized:

Customized

Transmission Method:

Electric

Transmission Mode:

1.2-Inch Hardened Chain

Tile Type:

Colored Steel

Condition:

Usage:

Electronic Control System:

Production Capacity:

500pieces/Years

Packaging Details:

Plastic Film & Steel Wire Fixed

Highlight:

40m/min double roll forming machine

40m/min double deck roll forming machine

solid shaft double roll forming machine

Product Description

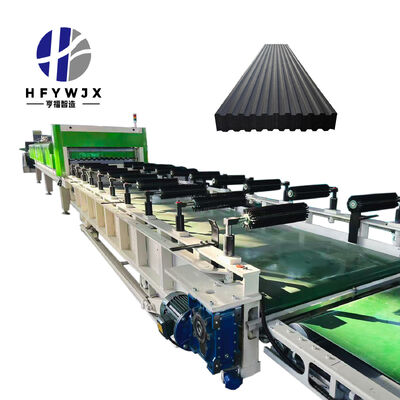

Heavy Duty C8 C21 Double Layer Roll Forming Machine Precision Dual Layer Metal Roof Tile Cold Roll Forming Equipment

Dongguang Hengfu Roll Forming Machine Co., Ltd. brings a highly efficient and practical solution to the roofing sheet industry with its C8-C21 Double Layer Trapezoidal Roll Forming Machine. This machine is specially designed to produce two different trapezoidal profiles in one integrated structure, greatly improving production efficiency while reducing floor space and equipment investment.

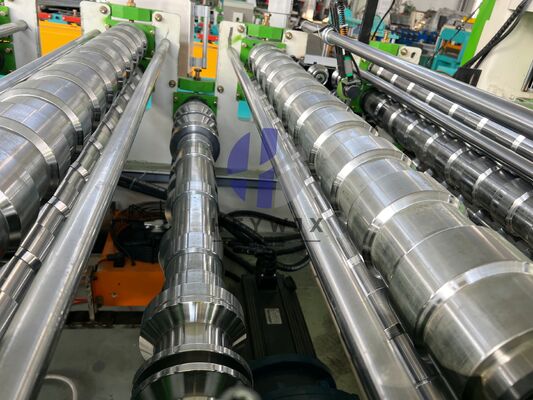

The machine features a heavy-duty welded frame and high-strength transmission system, ensuring excellent rigidity and stability during high-speed forming. Precision-machined rollers with hardened surface treatment ensure smooth forming, accurate dimensions, and no damage to material surfaces.

Adopting an advanced PLC touch screen control system, this roll forming machine realizes fully automatic operation, including feeding, forming, length counting, and hydraulic cutting. It supports flexible parameter setting and has stable performance with low failure rate.

Technical Specifications

Model NO	C8 C21 Double Layer Trapezoidal Roll Forming Machine
Condition	New
Feeding Width	1250±5mm
Machine Frame	350H steel frame
Forming Speed	0-40M/min
Type of Driven	1.2-inch hardened chain
Transmission Method	Electric
Number of Rolling Mill Sets	Type C8: ≥ 18 pairs; Type C21: ≥ 21 pairs
Spindle Diameter	Φ80mm (Solid shaft)
Customized	Customized

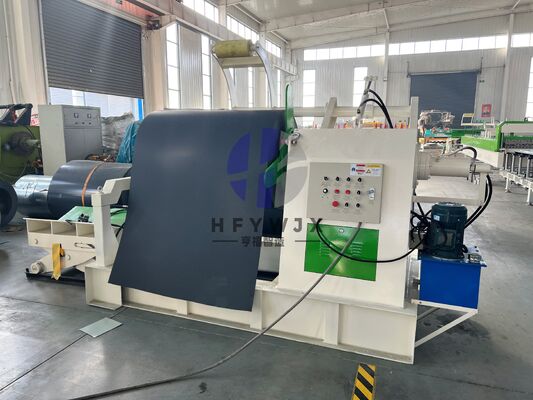

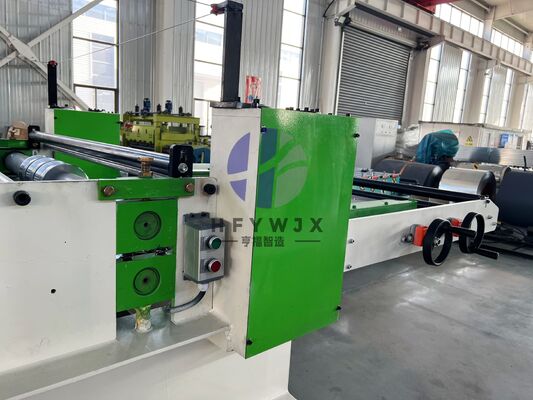

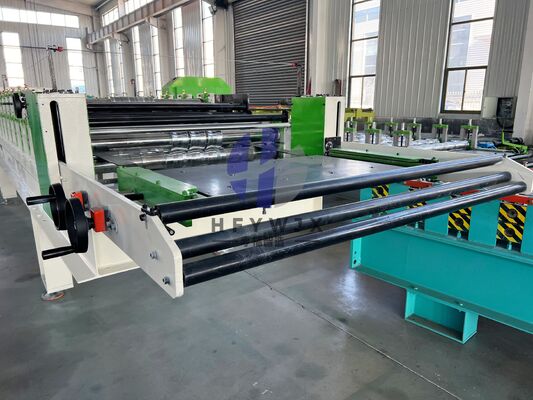

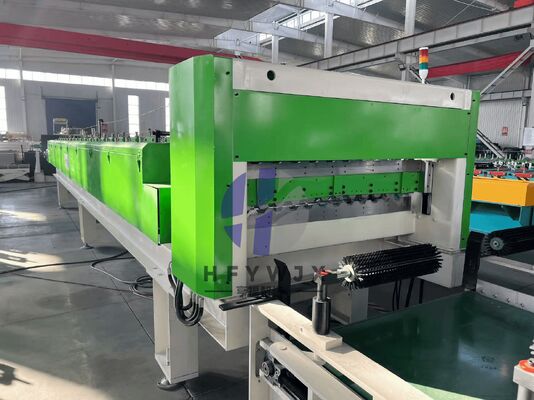

Product Gallery

Frequently Asked Questions

Are customers able to visit the factory to test the machine and observe its performance firsthand?

We welcome customers—or a designated third party—to visit our factory to inspect the machine and conduct trial production runs using their own materials.

How should the machine be stored when not in use for an extended period?

Disconnect the power, clean the machine, apply anti-rust oil, cover it with a dust cover, and store it in a dry environment.

How many people are required to operate the machine?

It requires just one operator plus one person to handle the output; for highly automated models, a single person is sufficient.

How long is the warranty period?

The entire machine comes with a 12-month warranty, excluding wear parts.

Can a single machine produce multiple types of profiles?

Standard models are typically designed to produce one specific profile type per machine. However, customizable models—such as those with interchangeable rollers, double-layer machines, or triple-layer machines—can be configured to enable a single machine to serve multiple purposes.
