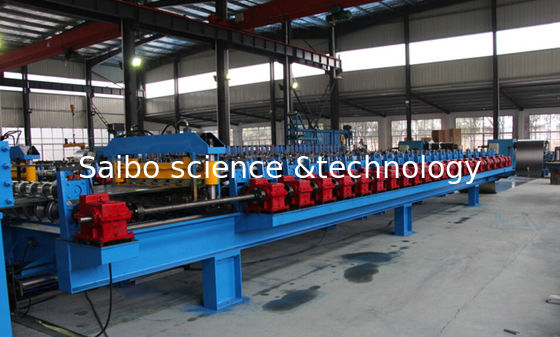

High Speed Roofing Corrugated Sheet Roll Forming Machine 37kw 0 - 35 M / Min

Basic Information
Place of Origin: China
Brand Name: Saibo
Certification: CE/ISO
Model Number: YX17.5-73.730
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Suitable for ocean shipment
Delivery Time: 70 working days after received deposit
Payment Terms: T/T or L/C
Supply Ability: 300 sets per year
Contact Now
Detail Information
Product Name: Corrugated Roll Forming Machine Power: 37KW+11kw
Size Of Purlin: YX17.5-73-730 Steel Thickness: 0.18-0.3mm
Roller Material: 45# Forge Steel, Surface With Chrome Station: About 24 Stations
Productivity: 0-35m/min Drive: By Gear Box
Voltage: 380V 50Hz 3phases (Customized) Container Need: 2X 40HQ Container

Product Description

Corrugated Panel Roll Forming Machine

1. Components of machine:


1

10T hydralic decoiler 1set


2

10T coil car 1 set


2

Feeding device 1set


3

Main roll forming machine 1set


4

Track cutting system 1set


5

Controlling system 1set


6

Auto stacker 1set


2. Specification of the material

1 Suitable Material GI/PPGI, 550Mpa
2 Width of the raw material 895mm(+10mm/-15mm)
3 Thickness 0.18-0.3mm



3. Machine Detailed Parameters

1

Roll Forming Machine


YX17.5-73-730
2

Machine structure


Cast iron structure
3 Total power

Motor power-37kw
Hydraulic power-11kw with storage tank and cooling system

4

Roller stations


About 24 stations
5

Productivity


0-35m/min
6

Drive system


By gear box
7

Diameter of shaft


¢100mm solid shaft
8

Voltage


380V 50Hz 3phases (Customized)
9

Color Of The Machine


Bule and yellow
10

Deliver time


70 days
11

Terms Of Payment


30%T/T 70% pay before shipment


4. Profile drawing
High Speed Roofing Corrugated Sheet Roll Forming Machine 37kw 0 - 35 M / Min

5. The Chart of Process Flow

Hydraulic Uncoiler—Roll Forming—Track cutting—Auto stacker
High Speed Roofing Corrugated Sheet Roll Forming Machine 37kw 0 - 35 M / Min

6. Specification of Components

(1) 10T Hydraulic Un-coiler

  • Width of feeding: 1250mm
  • Capability: 10 Ton
  • Inter diameter: 470-520mm
  • Maximal out diameter: 1500mm
  • Working speed: 0--45m/min adjustable
  • Main motor power: 7.5KW AC motor
  • Hydraulic power: 5.5kw


(2) 10T coil car

  • Coil weight (Max): 10 Ton
  • Working by hydraulic pressure: 8-12Mpa with connect with the uncoiler hydraulic unit
  • Working lift journey: Maximal 250mm
  • Working function: forward and reverse movable
  • Move journey: maximal 3 meters


(3) Main Roll Forming Machine

  • Roller material:ASTM1045 chrome plated surface with chrome
  • Shaft diameter: ¢100mm material: SAE1045 with quenching and tempering


(4) Machine structure

  • Main frame by 350H beam welding
  • Machine structure: cast iron


(5) Track cutting system

  • Cutting after forming: Cut the sheet after roll forming to required length
  • Cutting motion: The main machine won’t stop when cutting, continuous tracking cutting
  • Adopt servo motor and ball screw to make the speed and size more stable
  • Servo power: 2.9kw
  • Material of blade: CR12with heat treatment
  • Length measuring: Automatic encoder length measuring
  • Tolerance of length: 3m+/- 1.5mm
  • Quantity: 1


(5) Computer Control Cabinet

  • Hydraulic power: 11kw with storage tank and air cooling system
  • Working pressure: 12Mpa adjustable
  • Solenoid valve: 1 group
  • Hydraulic oil: 46# hydraulic oil
  • PLC: Panasonic or customerization


FAQ

Q: Can you make the machine according to my design or proto type?
A: Yes. We have an experienced team for working out the most suitable design and production plan for the machine that you are going to book with us.

Q: How do you guarantee the quality of the products?
A: Strict product quality, unqualified resolute don't factory.This is the tenet of our factory
Every one of our products have strict testing procedures, must be 100% quality assurance.

Q: How can we be assured that you will deliver us quality machine with spare parts?
A: Before loading, we will let the customer come to inspect the machine, if ok, we will arrange to loading machine, and finish loading, we will send you the loading pictures.
