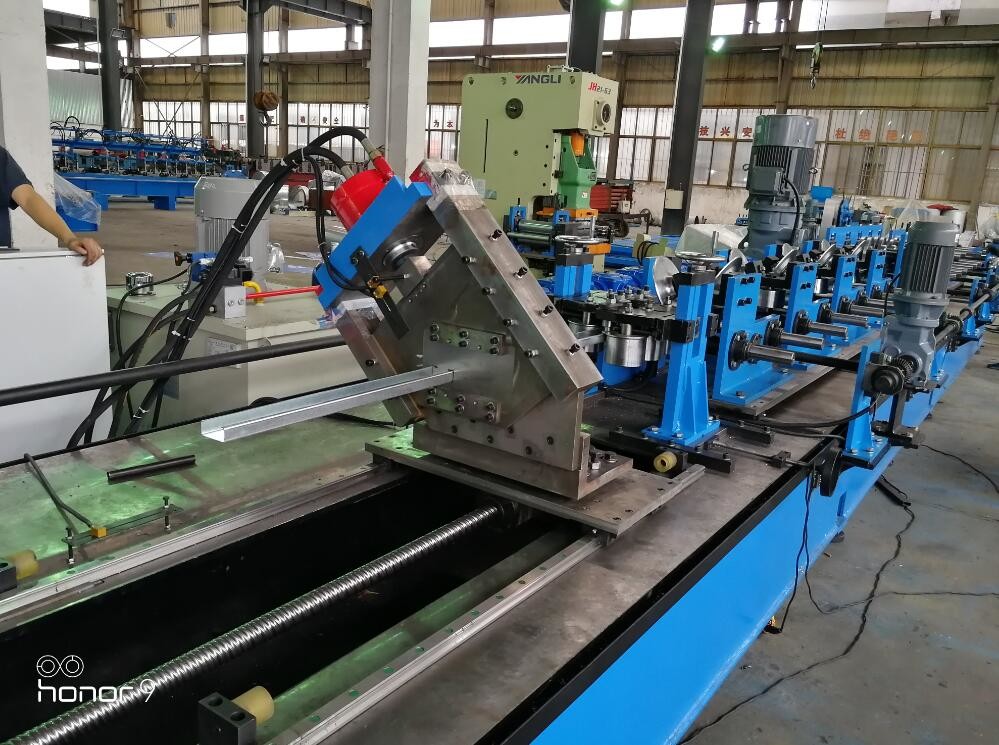

60m/min CU C Z Purlin Roll Forming Machine for Gear Box driving fly cutting

Basic Information
Place of Origin: China
Brand Name: Saibo
Certification: CE/ISO
Model Number: CU
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Suitable for ocean shipment
Delivery Time: 90 days
Supply Ability: 300 sets per year
Detail Information
Product Name: High Speed CU Purlin Roll Forming Machine Shaft Diameter: 70mm Soild Shaft
Decoiler: 3 Ton Hydraulic Double Head Station: About 14 Stations + 1 Station For Rectify
Roller Material: Gcr15 Cutting System: Fly Cutting System
Speed: 0-60m/min Power: 22kw+11Kw+4kw
High Light:

Rolling Shutter Strip Making Machine


Corrugated Iron Sheet Making Machine

Product Description

1. Main speficication:

60m/min CU  C Z Purlin Roll Forming Machine for Gear Box driving fly cutting 0


2.The Chart of Process Flow

3T hydrualic double head Uncoiler—Feeding—Roll Forming—Rectify—Track Cutting—auto stacker

60m/min CU  C Z Purlin Roll Forming Machine for Gear Box driving fly cutting 1


3.Specification of Components

No   Technical Specification & Remark

3T hydraulic uncoiler double head


  • Steel coil width: 400mm;
  • Internal diameter of coil: variable, from420 mm to 510 mm
  • Maximum coil weight: 3000 Kg x2;
  • Main motor power: 2.2KWx 2
  • Hydraulic power: 3kw
  • Speed controlled by frequency converter
  • Quantity: 1

feeding part


  • Feeding is adjustable by hand wheel
  • Guide sheet to forming section

Main Roll Forming Machine


  • Roller material: Gcr15 , treatment, HRC58-62 degree, roller with chrome
  • Shaft diameter: ¢70mm material: 40CR with tempering
  • Flange and width is adjust by motor
  • Main motor: 22KW Siemens

Correction adjust system


  • Function: make the end product in straight, left and right, up and down



Hydraulic System





  • Hydraulic power: 11kw with storage tank and cooling system
  • Working pressure: maximal 25Mpa
  • Solenoid valve: 1 group

Computer Control Cabinet




  • Programmable setting of profile length and quantity
  • Operating system language: English and Chinese
  • Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved
  • Length inaccuracy can be amended easily



  • Power: 3kw
  • Air compressor: provide by buyer
  • Speed suitable for 60m/min
  • Length in 6m


4. Warranty

  • Warranty: 1 year warranty from date of shipment
  • Guarantee:

1: Guaranteed against malfunctions due to manufacturing defects for 1 year after date of shipment. Repairs will be made free of charge.

2: Repairs will not be performed free of change even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

3:Air ticket, transportation cost, hotel, meals and 100$ per day shall be for purchaser’s account if manufacturer’s engineer has to be send to purchaser’s factory to maintain the machine during the guarantee period.


5. FAQ

1) Q: Are you manufacturer or trading company?

A: We are manufacturer and trading company .


2) Q: Do you provide installing and training overseas?

A: Overseas machine install and worker training services are optional.


3) Q: How is your after sales support?

A: We provide technical support on line as well as overseas services by skillful technicians.


4) Q: How does your factory do regarding quality control?

A: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.


5) How can I trust you that machines pasted testing running before shipping?

A: 1) We record the testing video for your reference. Or,

2) We welcome you visit us and test machine by yourself in our factory.


6) Q: Do you have this roof panel roll forming machine in stock?

A: No, machine is made to order.
