Big Racking Roll Forming Machine With 3t Manual Decoiler CE ISO

Basic Information
Place of Origin: China
Brand Name: Saibo
Certification: CE/ISO
Model Number: C purlin
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Suitable for ocean shipment
Delivery Time: 60 working days after received deposit
Supply Ability: 300 sets per year
Detail Information
Product Name: C Purlin Roll Forming Machine Main Power: 18.5kw
Hydraulic Power: 5.5kw Station: 14 Stations With One Station Of Rectify
Roller Material: Gcr15 Flatten: 7 Rollers( Up 3 Roller, Down 4 Rollers)
Cutter: Cr12
High Light:

metal forming equipment


steel roll forming machine

Product Description

3.75mm Racking roll forming machine with 3T manual decoiler by chain


Main specification


No Specification of the material



Suitable Material Carbon steel, GI



Width of the raw material According to the final profile
3 Thickness 3.75mm



The Chart of Process Flow


Manual Un-coiler—Punching—Roll Forming—rectify—Cutting—out table

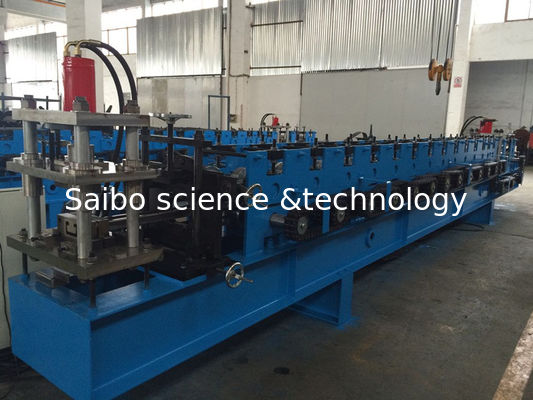

Big Racking Roll Forming Machine With 3t Manual Decoiler CE ISO 0


Specification of Components


No   Technical Specification & Remark
1 Hydraulic Punching System
  • Machine adopts pre-punching system
  • Machine adopts 1 unit punching station

Main Roll Forming Machine



  • Roll station:14stations +1 station of rectify
  • Roller material:Gcr15
  • Shaft diameter: ¢85mm material: SAE1045
  • main power: 18.5kw

Machine structure:



  • Main frame by 350H beam welding
  • Machine structure: wall board

Hydraulic cutting system



  • Machine adopt hydraulic post cutting system.
  • Cutting power by hydraulic, 5.5KW
  • Cutting after forming: Cut the sheet after roll forming to required length
  • Material of blade:Cr12 with heat treatment 58-60°




  • Warranty: 1 year warranty from date of shipment
  • Guarantee:

1: Guaranteed against malfunctions due to manufacturing defects for 1 year after date of shipment. Repairs will be made free of charge.

2: Repairs will not be performed free of change even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

3:Air ticket, transportation cost, hotel, meals and 80$ per day shall be for purchaser’s account if manufacturer’s engineer has to be send to purchaser’s factory to maintain the machine during the guarantee period.



Installation and training

a. If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.

b. Without visiting, we will send you user manual and video to teach you to install and operate.

C. If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.



1) Q: Are you manufacturer or trading company?

A: We are manufacturer and trading company .


2) Q: Do you provide installing and training overseas?

A: Overseas machine install and worker training services are optional.


3) Q: How is your after sales support?

A: We provide technical support on line as well as overseas services by skillful technicians.


4) Q: How does your factory do regarding quality control?

A: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.


5) How can I trust you that machines pasted testing running before shipping?

A: 1) We record the testing video for your reference. Or,

2) We welcome you visit us and test machine by yourself in our factory.


6) Q: Do you have this roof panel roll forming machine in stock?

A: No, machine is made to order.
