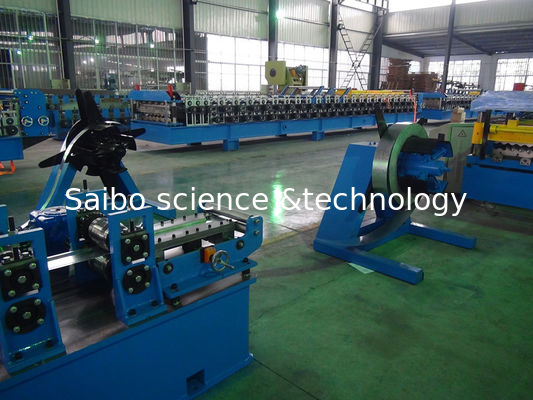

Wire-Electrode Cutting Ceiling Roll Froming Machine Drive By Gear Box 7.5KW

Basic Information
Place of Origin: China
Brand Name: Saibo
Certification: CE/ISO
Model Number: YX40-40
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Suitable for ocean shipment
Delivery Time: 70 working days after received deposit
Payment Terms: T/T, L/C
Supply Ability: 300 sets per year
Detail Information
Product Name: Stud Panel Roll Forming Machine Main Power: 7.5KW
Steel Thickness: 1.4mm, According To The Final Profile Decoiler: Manual Or Hydraulic
Station: 16 Stations Roller Material: Gcr15
Structure: Steel Plate Welding Drive: By Chain
Cutting Material: Gcr12, Hardness 58-62
High Light:

Pipe Roll Forming Machine

,

Stud Roll Forming Machine


Product Description

Wire-electrode cutting Stud Roll Forming Machine Drive by gear box 7.5KW



1. Specification of the material

1 Suitable Material Galvanized steel
2 Width of the raw material Acording to the final profile
3 Thickness 1.4mm



2. Machine Detailed Parameters

Roll Forming



Steel stud roll forming machine



Machine structure



Wire-electrode cutting structure
Total power

Motor power-7.5kw

Hydraulic power-5.5kw
Roller stations



bout 16 stations + one station for rectify >



Productivity



0-15m/min

Drive system



By chain

Diameter of shaft



¢70mm solid shaft

Voltage



380V 50Hz 3phases (Customized)

Color Of The Machine



Yellow and blue

Deliver Time



70 days

Terms Of Payment



30%T/T 70% pay before shipment



3. Profile drawing

Wire-Electrode Cutting Ceiling Roll Froming Machine  Drive By Gear Box 7.5KW 0



4. The Chart of Process Flow

Wire-Electrode Cutting Ceiling Roll Froming Machine  Drive By Gear Box 7.5KW 1





5. Specification of Components

(1) 3T Manual Un-coiler

  • Adopt automatic hydraulic system for expand
  • Width of feeding: 350mm
  • Capability: 3 Ton
  • Bound of expand &fight: 380mm—520mm
  • Mode of expand &fight: inner expand &fight by manual
  • Way of feeding: manual



(2) Main Roll Forming Machine

  • Roller material:Gcr15
  • Shaft diameter: ¢70mm material: 40CR with quenching and tempering
  • Main frame by 350H beam welding
  • Machine structure: Wire-electrode cutting

6. Main Features

1. Simple structure in linear type ,easy in installation and maintenance.

2. Adopting advanced world famous brand components in pneumatic parts, electric parts and operation parts.

3. Running in a high automatization and intellectualization, no pollution

4. No need foundation, easy operation


7. Warranty
  • Warranty: 1 year warranty from date of shipment
  • Guarantee:

1: Guaranteed against malfunctions due to manufacturing defects for 1 year after date of shipment. Repairs will be made free of charge.

2: Repairs will not be performed free of change even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

3:Air ticket, transportation cost, hotel, meals and 80$ per day shall be for purchaser’s account if manufacturer’s engineer has to be send to purchaser’s factory to maintain the machine during the guarantee period.



8. Installation and training

a. If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.

b. Without visiting, we will send you user manual and video to teach you to install and operate.

C. If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.
