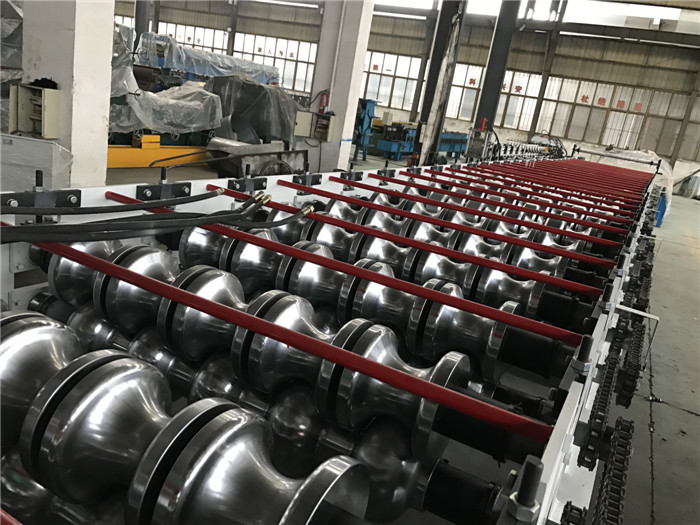

5.5kw 18 Stations Tile Roll Forming Machine / Roof Tile Making Machine

Basic Information
Place of Origin: China
Brand Name: Saibo
Certification: CE/ISO
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Suitable for ocean shipment
Delivery Time: 70 working days after received deposit
Payment Terms: T/T, L/C
Supply Ability: 300 sets per year
Detail Information
Product Name: Tile Roll Forming Machine Main Power: 5.5kw
Hydraulic Power: 5.5kw Station: About 18 Stations
Drive System: By Chain Roller Material: ASTM1045 Surface With Chrome
Productivity: 2-4m/min
High Light:

Roofing Tile Forming Machine


Cold Roll Forming Machine

Product Description

1. Specification of the material

1 Suitable Material Colored Steel plate, Galvanized steel
2 Width of the raw material According to the final profile
3 Thickness 0.4-0.6mm


2. Machine Detailed Parameters


Roll Forming Machine


Tile roll forming machine

2 Machine structure


Wall panel structure


3 Total power

Motor power-5.5kw

Hydraulic power-5.5kw

Roller stations


About 18 stations

Productivity 2-4


Drive system


By chain

Diameter of shaft


¢70mm solid shaft
8 Voltage380

380V 50Hz 3phase



3. Profile drawing

5.5kw 18 Stations Tile Roll Forming Machine / Roof Tile Making Machine 0



4. The Chart of Process Flow

5.5kw 18 Stations Tile Roll Forming Machine / Roof Tile Making Machine 1

5. Specification of Components


(1) Main Roll Forming Machine

  • Roller material:ASTM1045 chrome plated surface with chrome
  • Shaft diameter: ¢70mm material: SAE1045 with quenching and tempering


(2) Machine Structure

  • Main frame by 350H beam welding
  • Machine structure: wall panel

3)Pressing System:

  • Pressing after forming: Press the sheet after roll forming to required length
  • Hydraulic drive uses the same hydraulic unit with cutting
  • Material of mold:Cr12, 58-62 HRC hardness
  • Pressing by hydraulic, 5.5KW


(4) Hydraulic cutting system

  • Cutting after forming: Cut the sheet after roll forming to required length
  • Uses two hydraulic cylinders for operation.
  • Material of blade:Cr12, 58-62 HRC hardness
  • Cutting power by hydraulic,5.5KW
  • Working pressure: 12Mpa adjustable
  • Length measuring: Automatic encoder length measuring
  • Tolerance of length: +/- 1.5mm for each piece end product


(5) Computer Control Cabinet

  • Programmable setting of profile length and quantity
  • Operating system language: English and Chinese
  • Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved
  • PLC: Panasonic or customerization

Machine loading, packing and shipping

Usually the machies will be transported to the customer's workshop by shipping in containers. Sometimes, it aslo can be deliveried by train containers.

The container that we are use are commonly 20 feet and 40 feet containers. 2 feet and 40 feet high containers and top open containers are used as well.

It depends on the machines the customer ordered. We will try our best to find a most economical way for you.


Why choose us ?

Advanced machinery, well trained workers.
More than 12 years experience in roll forming machine Ad industry.
Unique designed, good quality, competitive price.
Full range of roll forming machine solution
